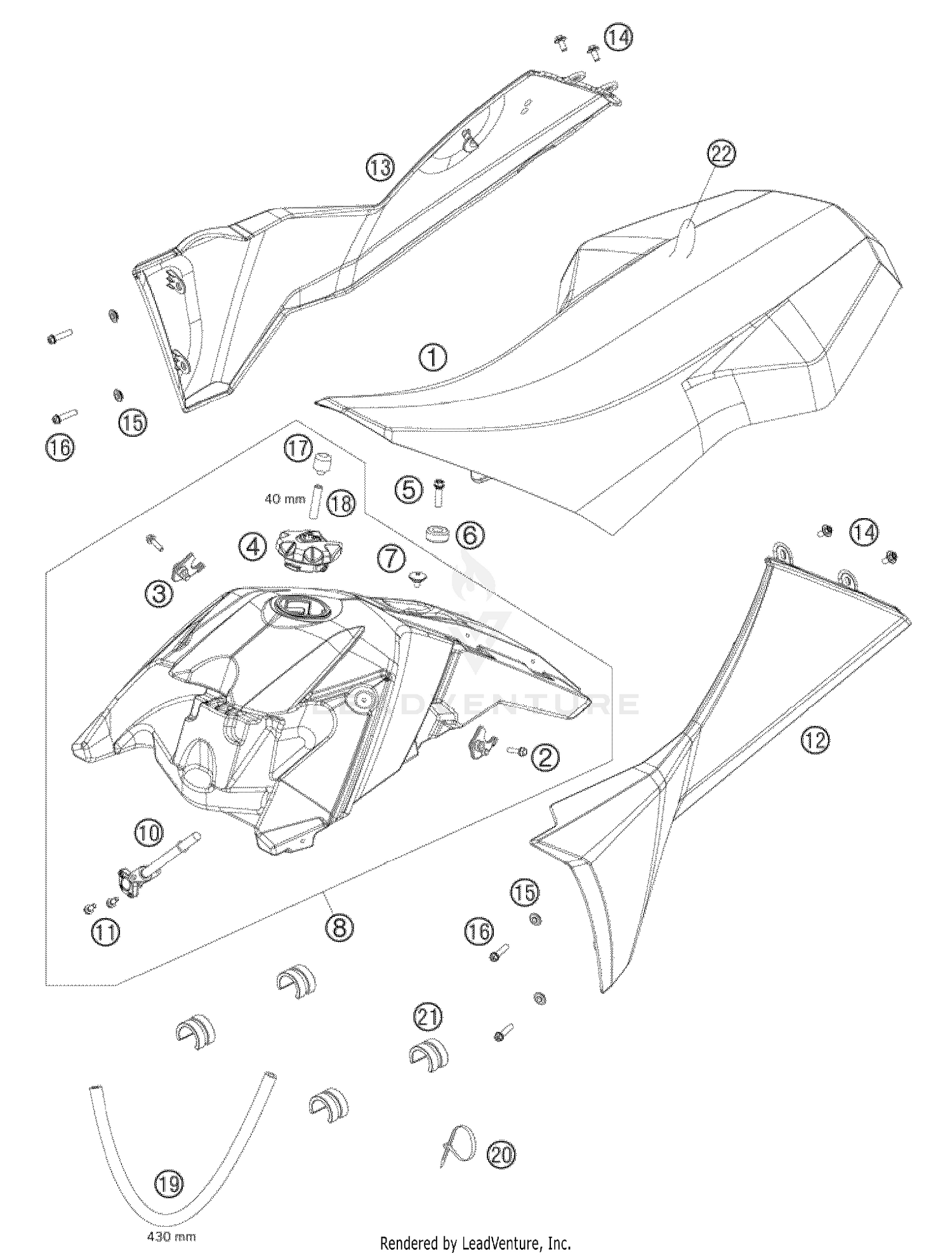

2009 KTM XC ATV 525 Tank, Seat, Covers OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ATV 2009
83007040100
|
$173.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
HH COLLAR SCREW M5X20
0024050206
|
|||
|
Unavailable |
|||
|
#3
SPOILER BRACKET
83007013050
|
$4.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
TANK PLUG CPL. EXC
78007008044
|
|||
|
Unavailable |
|||
|
#5
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
TANK ROLLER 12X26X12 '98
50307014000
|
$10.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW FOR SEAT M6X11,5/8
58407011100
|
$3.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
FUEL TANK CPL.
8300701303330
|
$607.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
FUEL COCK CPL. OFF-ON-RES
58307105200
|
$44.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
HH COLLAR SCREW M 5X12 WS=6
0014050123
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
RADIATOR SPOILER L/S BLACK
8300805000030
|
$44.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RADIATOR SPOILER R/S BLACK
8300805100030
|
$44.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
HH COLLAR SCREW M6X10 TX30
0024060106
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BUSH FOR SPOILER 6X11X16X7,5
50308053000
|
$5.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
HH collar screw M6x20 TX30
0025060206
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BLEEDING STUBBLE
83007030000
|
$4.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FUEL HOSE VITON 6X1,5 PER/M
58307016001
|
$36.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
FUEL HOSE
83007016000
|
$20.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CABLE TIE 200/3,6MM BLACK
44011076200
|
$0.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SPACER FUEL TANK 05
61007014000
|
$6.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SEAT COVER
83007040050
|
$63.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
