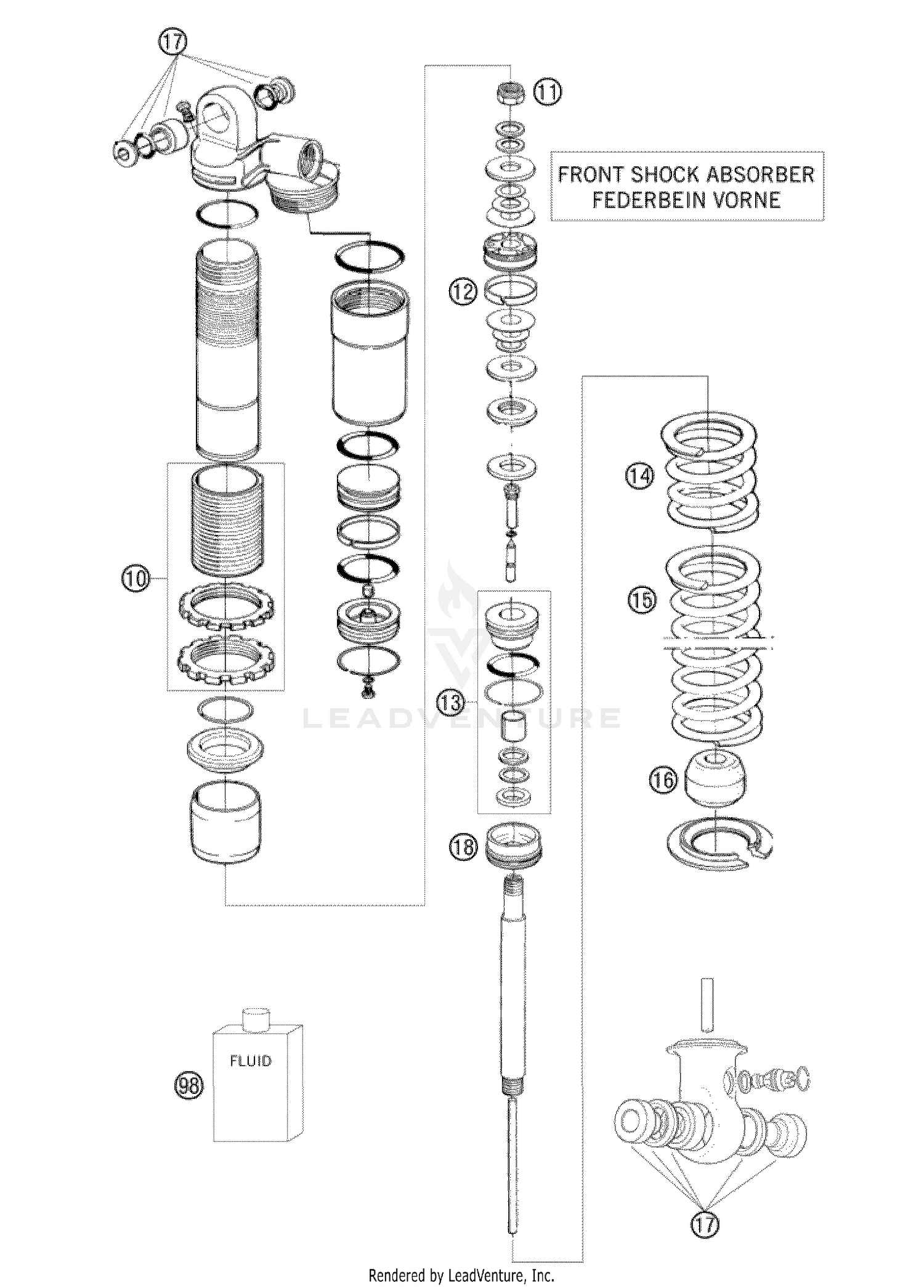

2009 KTM XC ATV 525 Shock Abs.Front Disassembled OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#10
ADJ. AND LOCK NUT
83004002000
|
$251.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
LOCK NUT
83004003000
|
|||
|
Unavailable |
|||
|
#12
PISTON RING
83004004000
|
|||
|
Unavailable |
|||
|
#13
ADAPTER CPL.
83004005000
|
$49.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SPRING SHORT
83004006000
|
|||
|
Unavailable |
|||
|
#14
SPRING SHORT HARDER
83004006100
|
|||
|
Unavailable |
|||
|
#15
SPRING LONG
83004007000
|
|||
|
Unavailable |
|||
|
#15
SPRING LONG HARDER
83004007100
|
|||
|
Unavailable |
|||
|
#15
SPRING LONG SOFTER
83004007200
|
|||
|
Unavailable |
|||
|
#16
BUMP RUBBER
83004008000
|
$55.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SHOCK ABSORBER BEARING KIT
83004001000
|
$136.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
END CAP
83004012000
|
|||
|
Unavailable |
|||
|
#98
OIL ÖHLINS 12 X 1 LITER
00062010037
|
|||
|
Unavailable |
|||
