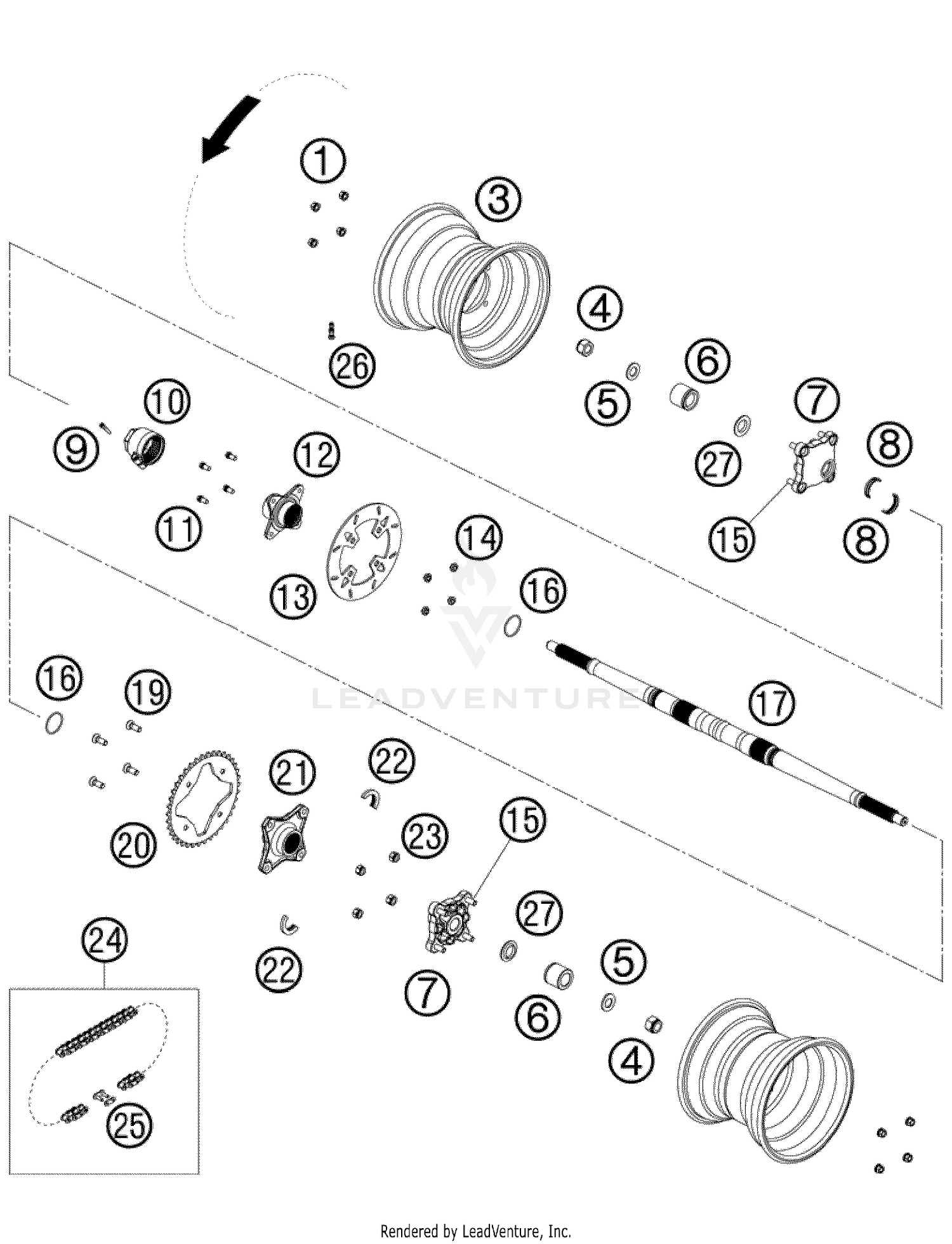

2009 KTM XC ATV 525 Rear Wheel OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HH COLLAR NUT M10X1,25 WS=13
58414030000
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
RIM REAR 8X9''
83010070000
|
$271.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SELF LOCK.NUT DIN0985-M18X1,5
0985181503
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
TENSIONER RAIL DIN6796 D=19
83010021000
|
$3.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER BUSHING
83010013000
|
$19.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
REAR WHEEL HUB CPL.
83010069044
|
$153.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CIRCLIP REAR AXLE
83010063000
|
$17.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
AH SCREW DIN0912-M 6X30
0912060303
|
$1.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
TENSION NUT
83010064000
|
$29.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
HH COLLAR SCREW M8X16 TX40
0025080166
|
$3.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BRAKE DISK SUPPORT 08
83010062000
|
$127.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BRAKE DISK REAR D=200 MM
83010060000
|
$114.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SPECIAL NUT BRAKE DISK FIXING
83010060050
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
WHEELBOLT
83009016000
|
$25.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
O-RING 39,34X2,62
0770039026
Superseded by 07700390261
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
REAR WHEEL AXLE
83010016000
|
$565.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
FL.HEAD SCREW M10X1,25 L=27 03
60003004027
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SPROCKET 38T
83010051038
|
$63.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SPROCKET SUPPORT 08
83010050000
|
$128.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CIRCLIP REAR AXLE SPROCKET
83010063100
|
$16.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SELF LOCK.NUT M10X1,25
0982101253
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CHAIN Z-RING 5/8X1/4" REGINA
50310800118
|
|||
|
Unavailable |
|||
|
#25
CONNECTING LINK F. 50310800118
50310366000
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
MASTER LINK FOR 50310800118
50310866000
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
VALVE
83009076000
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
CONUSRING REAR AXLE
83010014000
|
$13.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
