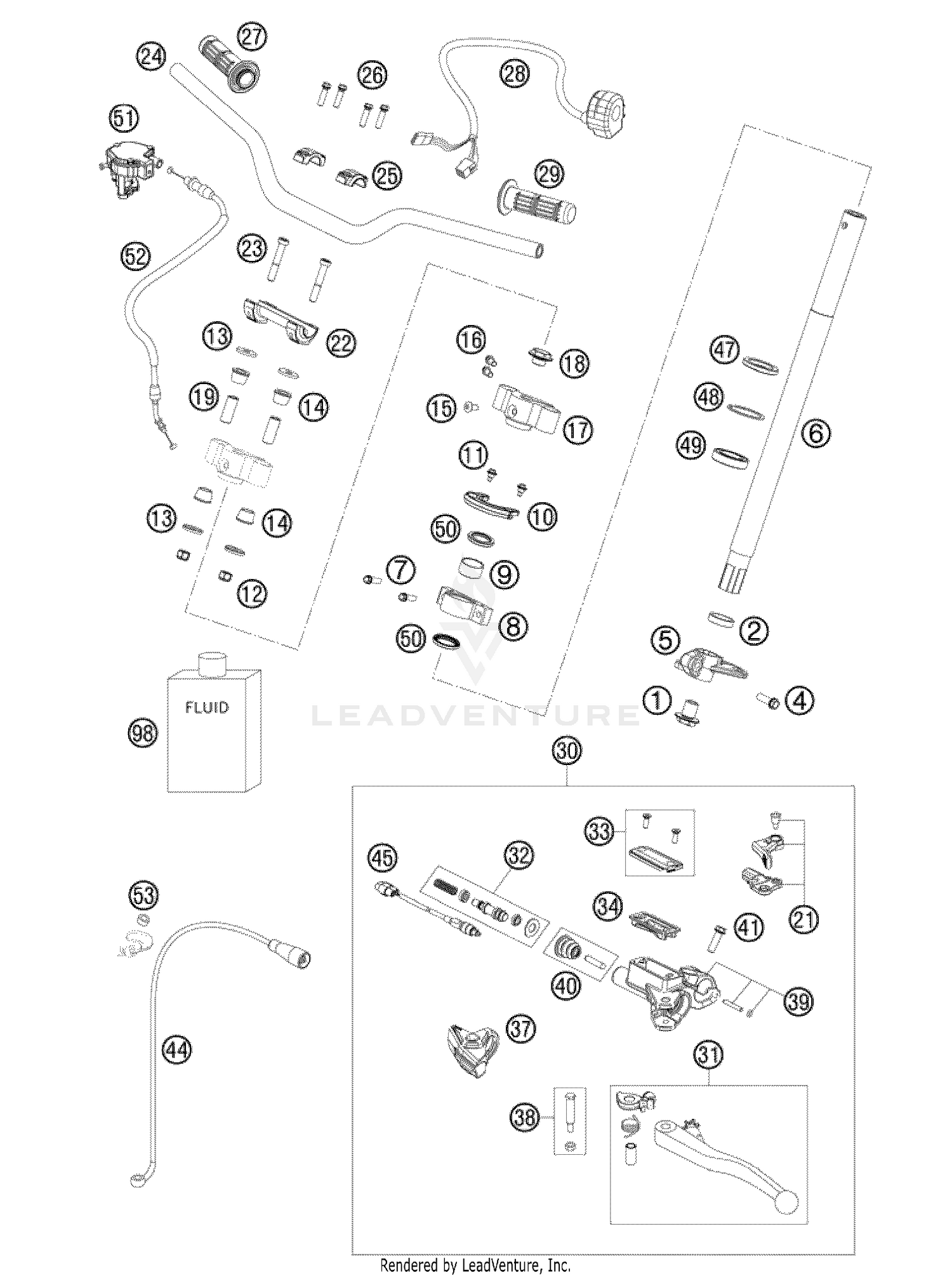

2009 KTM XC ATV 525 Handlebar, Controls OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEERING HEAD SCREW M20X1,5
83001033051
|
$17.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER F. STEERING BEARING
83001033052
|
$6.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
HH COLLAR SCREW M10X30 WS=13
0015100303
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
STEERING LEVER
83001033050
|
$99.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
STEERING COLUMN
83001033100
|
$125.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HH collar screw M8x25
0025080256
|
$1.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BEARING BLOCK STEERING COLUMN
83001035100
|
$50.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SLIDE BEARING W.C. JSM-3539-20
83001035150
|
$15.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CABLE GUIDE
83001069000
|
$4.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SELF LOCKING NUT DIN0985-M10
0985100003
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BUCKET
83001042000
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
RUBBER BUSH
83001040000
|
$4.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COUNTER-SUNK SCREW ISA45 M8X20
54610052000
Superseded by 0019080206
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
HH collar screw M8x20
0015080203
Superseded by 0025080206
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
HANDLE BAR BRIDGE
83001034008
Superseded by 83001034108
|
$94.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
STEER.HEAD SCREW M20X1,5 WS=27
54801036000
|
$11.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPACER TUBE 10.2X16X39
83001041000
|
$5.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
LEVER CPL. RACING 2000
59002047000
|
$23.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
HANDLEBAR SUPPORT 28MM 07
59001039100
Superseded by 5900103920001S
|
$65.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
AH SCREW DIN6912-M10X60
0012100606
|
$4.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
HANDLEBAR ATV 2008
83002001000
|
$208.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HANDLEBAR CLAMP 28MM 07
59001038200
Superseded by 5900103830001S
|
$26.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
HH collar screw M8x30
0025080306
|
$2.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
GRIP-SET DUAL COMPOUND
83002021002
Superseded by 83002021000
|
$23.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
LEFT HANDLE SWITCH
83011070000
|
$85.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
GRIP-SET DUAL COMPOUND
83002021001
Superseded by 83002021000
|
$23.75 | ||
|
Unavailable |
|||
|
#30
MASTER CYLINDER CPL. 10,5MM 09
77302030000
|
$374.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
CLUTCH LEVER CPL. 2009
50302031300
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
REP.KIT PISTON 10,5MM 09
77302032000
|
$94.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
COVER HYDR. CLUTCH CPL. 09
50302033200
|
$26.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
RUBBER FOR RESERVOIR 09
50302034100
|
$18.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
PROTECT.CAP FOR LEVER PERCH 13
50302037100
Superseded by 76502037000
|
$36.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
LEVER SCREW CPL. 09
50302038100
|
$22.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
CLAMP, CYL. PIN, O-RING
50302030250
Superseded by 83013005000
|
$53.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
PUSH ROD CPL. 13
50302046000
Superseded by 76502046000
|
$31.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
CLUTCH PIPE
83032063000
|
$107.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
CLUTCH SWITCH 03
58411049100
|
$54.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
SHAFT SEAL RING 38,5X55X7
0760385570
|
$6.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#48
CIRCLIP DIN0472-55X2
0472055200
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
BALL BEARING 6006/32-2RS1
0625060061
|
$32.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
SHAFT SEAL RING 35x47x6 NBR902
83501035060
|
$10.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
THUMB THROTTLE
83002022100
|
$107.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
THROTTLE CABLE ATV
83002091000
|
$90.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53
SPACER BUSHING 6X10X5
50301089000
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#98
OIL FOR HYD. CLUTCH 100 ML
50302036200
|
$19.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
