2009 KTM XC ATV 525 Hand Brake Cylinder OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|

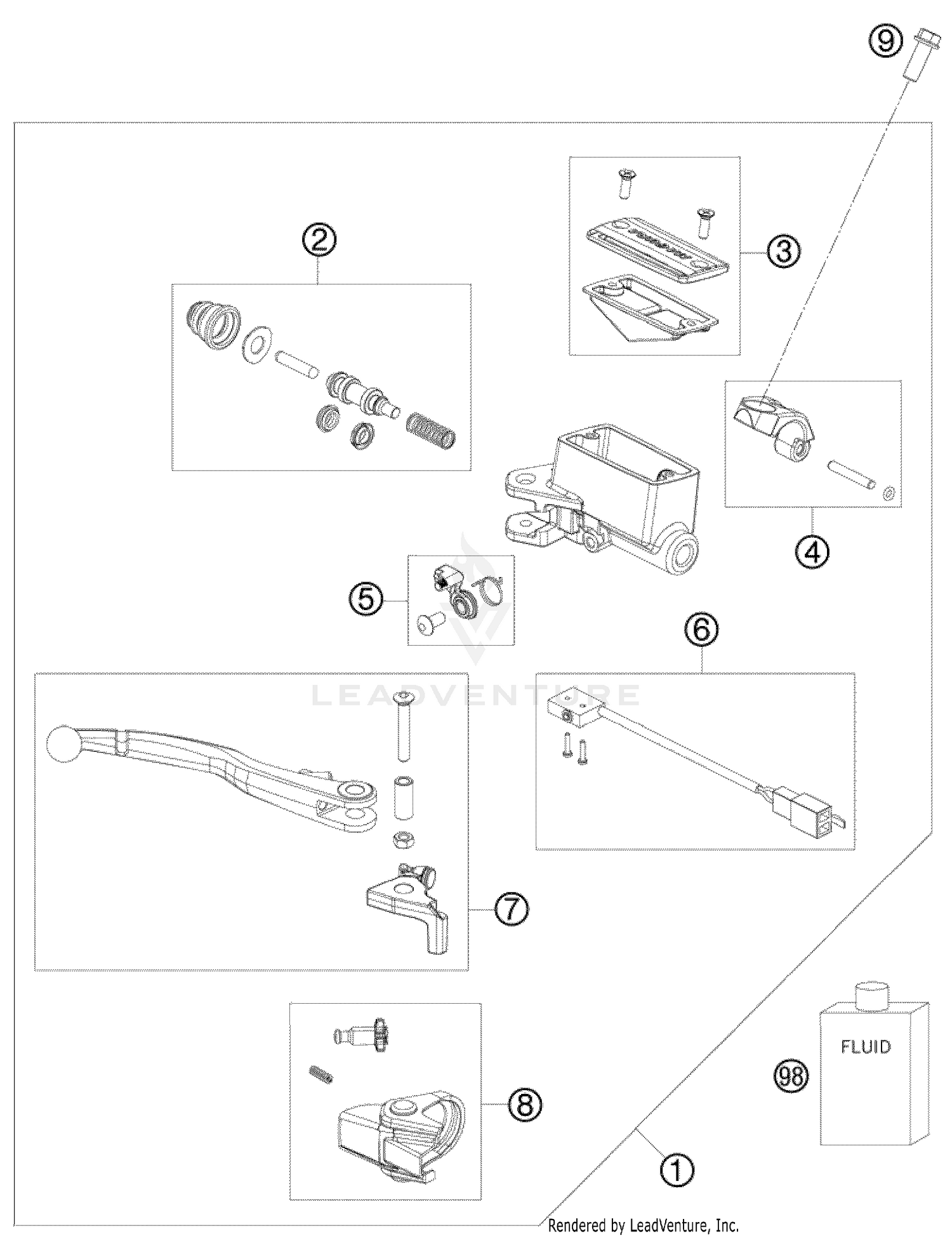

#1
HAND BRAKE CYLINDER
83013001000
Superseded by 83013001200
|
$463.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
REPAIR KIT PISTON MAGURA 12 MM
83013008000
Superseded by 83013008100
|
$132.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
COVER, MEMBRANE, SCREW
83013003000
|
$101.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CLAMP, CYL. PIN, O-RING
83013005000
|
$53.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
ARRESTING LEVER, SPRING, SCREW
83013009000
|
$45.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$34.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HAND-BRAKE LEVER CPL. MAGURA
83013002000
|
$94.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CAP, ADJUSTING SCREW, SPRING
83013004000
|
$52.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#98
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$11.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
