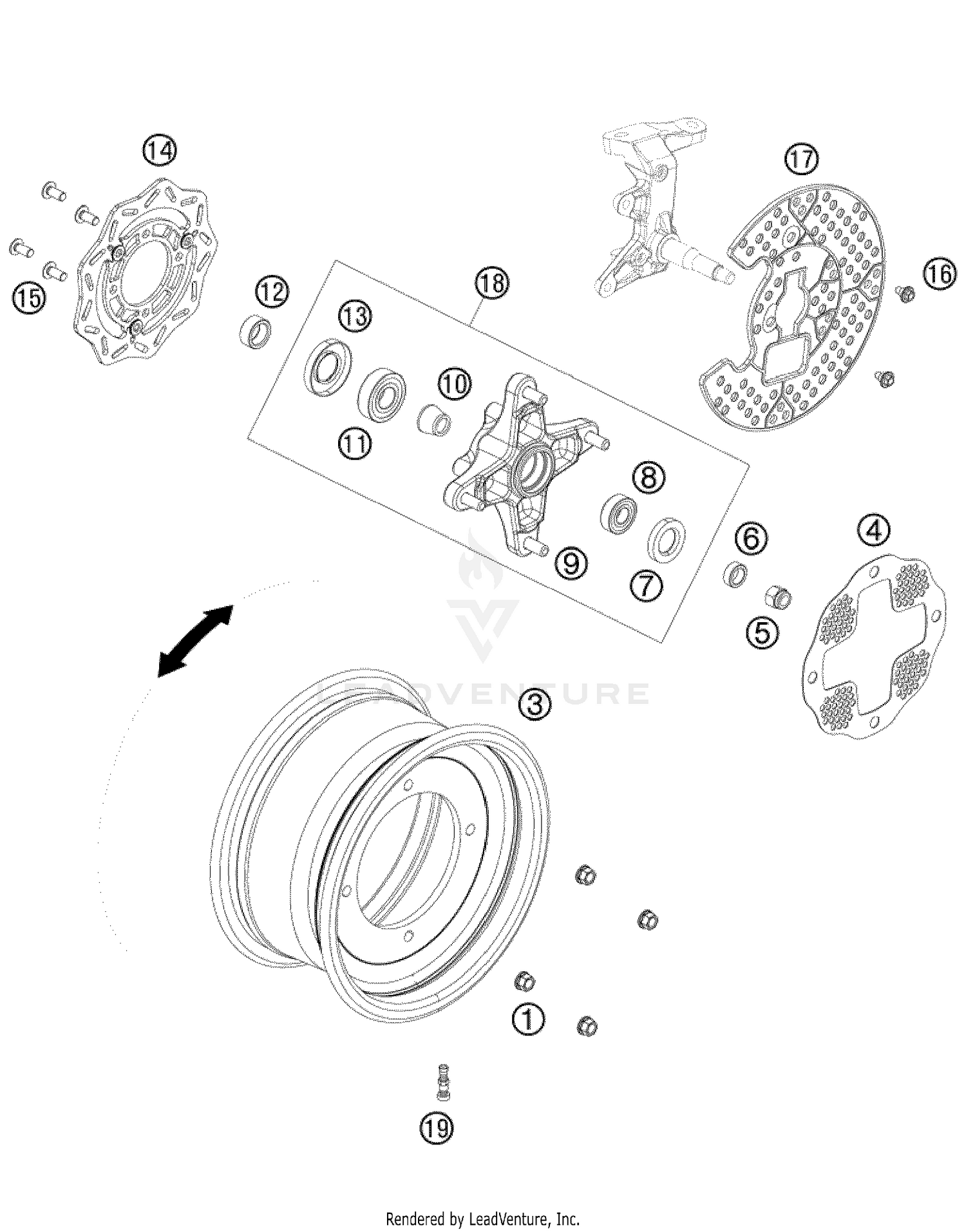

2009 KTM XC ATV 525 Front Wheel OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 HH COLLAR NUT M10X1,25 WS=13 58414030000	$1.41
Available: Ships in 7-12 days. Add to View Price
#3 RIM FRONT 10X5-5 83009070000	$278.63
Available: Ships in 7-12 days. Add to View Price
#4 OUTER BRAKE DISK PROTECTOR 83009066000	$10.69
Available: Ships in 7-12 days. Add to View Price
#5 SELF LOCKING NUT DIN0985-M12 0985120003	$1.65
Available: Ships in 7-12 days. Add to View Price
#6 SPACER BUSHING 83009013000	$5.45
Available: Ships in 7-12 days. Add to View Price
#7 SHAFT SEAL RING BSL 22X40X7NBR 0760224070	$5.11
Available: Ships in 7-12 days. Add to View Price
#8 BALL BEARING 6202-2RSH/C3 0625062028	$13.50
Available: Ships in 7-12 days. Add to View Price
#9 WHEELBOLT 83009016000	$25.49
Available: Ships in 7-12 days. Add to View Price
#10 BEARING SPACER BUSHING 83009014000	$9.86
Available: Ships in 7-12 days. Add to View Price
#11 BALL BEARING 6204-2RSH/C3 0625062047	$16.74
Available: Ships in 7-12 days. Add to View Price
#12 SPACER BUSHING 83009015000	$7.35
Available: Ships in 7-12 days. Add to View Price
#13 SHAFT SEAL RING BSL 28X52X7NBR 0760285270	$8.19
Available: Ships in 7-12 days. Add to View Price
#14 BRAKE DISK 83009060000	$191.69
Available: Ships in 7-12 days. Add to View Price
#15 FLAT HEAD SCREW ISO7380 M8X16 0738080166S	$1.79
Available: Ships in 7-12 days. Add to View Price
#16 SPECIAL SCREW M6X12,5 WS=8 59001092050	$1.65
Available: Ships in 7-12 days. Add to View Price
#17 BRAKE DISK PROTECTOR 83009065000 Superseded by 83009065100	$9.08
Available: Ships in 7-12 days. Add to View Price
#18 FRONT WHEEL HUB CPL. SP 2008 83009010044	$229.84
Available: Ships in 7-12 days. Add to View Price
#19 VALVE 83009076000	$3.99
Available: Ships in 7-12 days. Add to View Price
