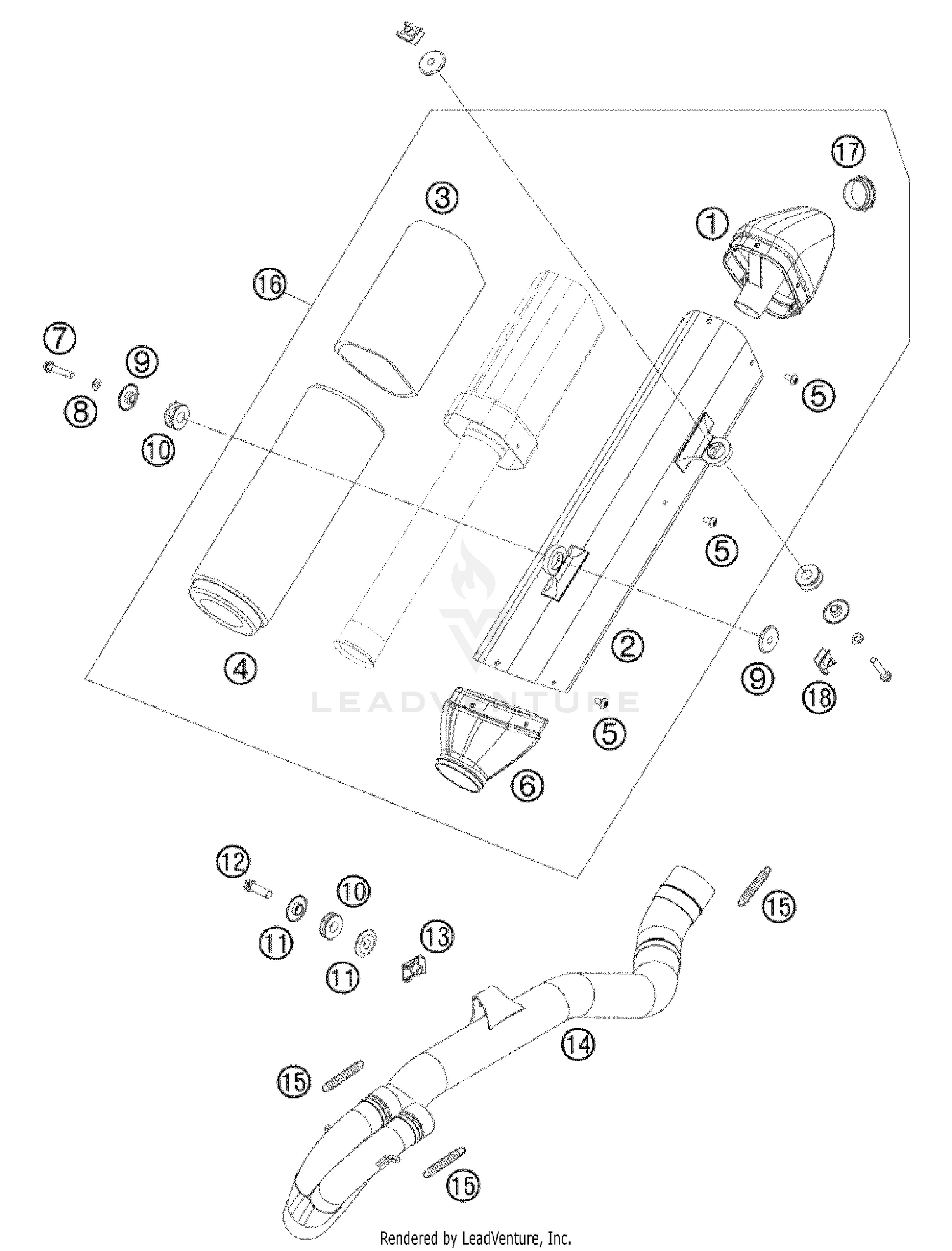

2009 KTM XC ATV 525 Exhaust System OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 ENDCAP SPARKY ATV 08 83005082070	$110.53
Available: Ships in 7-12 days. Add to View Price
#2 SILENCER HOUSING SPARKY ATV 83005082050	$138.23
Available: Ships in 7-12 days. Add to View Price
#3 STUFFING YARN REAR 77005081016 Superseded by 77005078050	$40.93
Available: Ships in 7-12 days. Add to View Price
#4 STUFFING YARN 400G 58705078350 Superseded by 77005078400	$78.51
Available: Ships in 7-12 days. Add to View Price
#5 SCREW TORX M5X10 05 58605083010	$1.89
Available: Ships in 7-12 days. Add to View Price
#6 CONNECTING CAP CPL. ATV 83005082060	$143.07
Available: Ships in 7-12 days. Add to View Price
#7 HH collar screw M6x30 TX30 0025060306	$2.08
Available: Ships in 7-12 days. Add to View Price
#8 spring washer DIN 137 B - 6 0137060003	$1.07
Available: Ships in 7-12 days. Add to View Price
#9 BUSHING 7.5x12x28x8.3 11 54605069000 Superseded by 77205169000	$5.69
Available: Ships in 7-12 days. Add to View Price
#10 DAMP. COMPON. BLACK 54605068000 Superseded by 77205068000	$6.30
Available: Ships in 7-12 days. Add to View Price
#11 BUSHING FOR EXHAUST SUPPORT 03 59405069000	$6.05
Available: Ships in 7-12 days. Add to View Price
#12 HH collar screw M8x25 0025080256	$1.20
Available: Ships in 7-12 days. Add to View Price
#13 RANGE CHANGE METAL NUT M8 54603048000	$3.79
Available: Ships in 7-12 days. Add to View Price
#14 EXHAUST MANIFOLD R/S CPL. 83005007000	$392.90
Available: Ships in 7-12 days. Add to View Price
#15 Tension spring L=65ámm 50305016000 Superseded by 50305016200	$2.52
Available: Ships in 7-12 days. Add to View Price
#16 EXH. SIL. CPL. R/S ATV SPARKY 83005082000	$562.10
Available: Ships in 7-12 days. Add to View Price
#17 SIL. ELEMENT EXC-F 07 77005081055	$9.15
Available: Ships in 7-12 days. Add to View Price
#18 clip nut M6 54603048100	$3.92
Available: Ships in 7-12 days. Add to View Price
