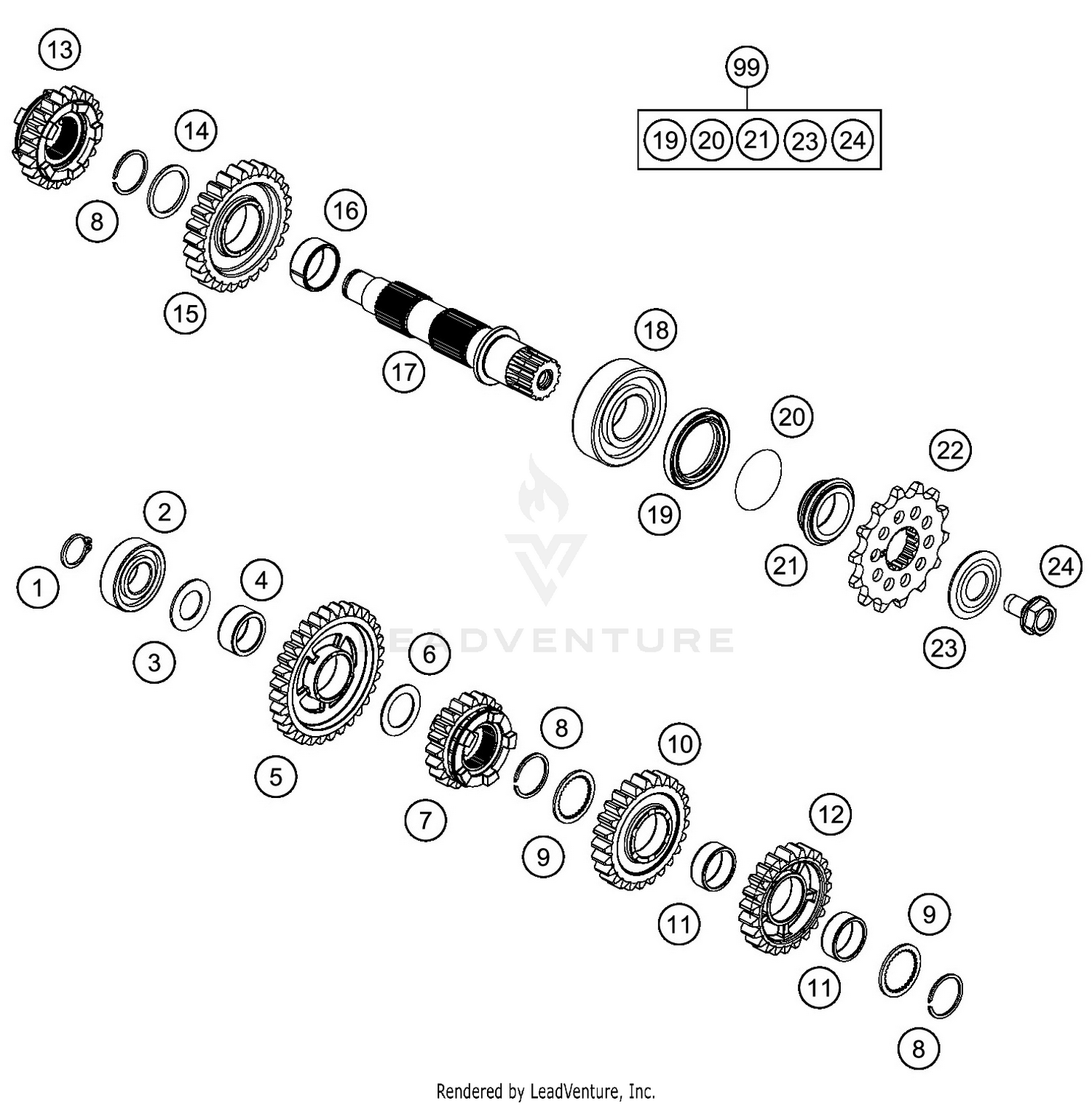

2019 KTM XC 300 TRANSMISSION II - COUNTERSHAFT OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CIRCLIP DIN 0471-17X1, 5
0471170015
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BALL BEARING 6203 JR2 C3
0625062035
|
$14.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
STOP DISK 17,2X30X1,3
77233020000
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NEEDLE BEARING K 20X26X12
0405202612
|
$10.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Idler Gear 1: Z=31
54833311100
|
$83.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
STOP DISC 20,2X30X1
54833080000
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Gear wheel set 6th gear
54833216100
Superseded by 79333106044
|
$271.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CIRCLIP WS24
0417024000
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
STOP DISC 25X0,8X30X30X7H
54833043000
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Idler gear, 3rd gear, teeth=25
54833213100
Superseded by 79333113000
|
$123.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NEEDLE BEAR.K 22X26X10 DIVIDED
0405222611
|
$11.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Idler gear 4.G, Z=23
54833214100
|
$87.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Sliding gear 5th Z=22
54833215100
|
$88.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
STOP DISC 25X31X1,5
54833044000
|
$4.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
idler gear 2, Z=25
54833312100
|
$79.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
NEDDLE BEAR. K24X28X11,9 DIV.
0405242812
|
$6.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Output shaft
77233110100
|
$126.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
cylindrical roller bearing NJ205
49030023000
|
$74.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SHAFT SEAL RING 32X45X7 BSLNBR
0760324571
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
O-RING 25,12X1,78 NBR70
0770020220
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SPACER SLEEVE COUNTER
78133014000
|
$28.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPROCKET 13T
79233029013
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SCREW 10.9+SPRING WASHER
59033034000
Superseded by 59033034044
|
$7.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SCREW 10.9+SPRING WASHER
59033029000
Superseded by 59033034044
|
$7.55 | ||
|
Unavailable |
|||
|
#99
Counter shaft repair kit 250-300cc
00050000983
Superseded by 77233110010
|
$39.95 | ||
|
Unavailable |
|||
