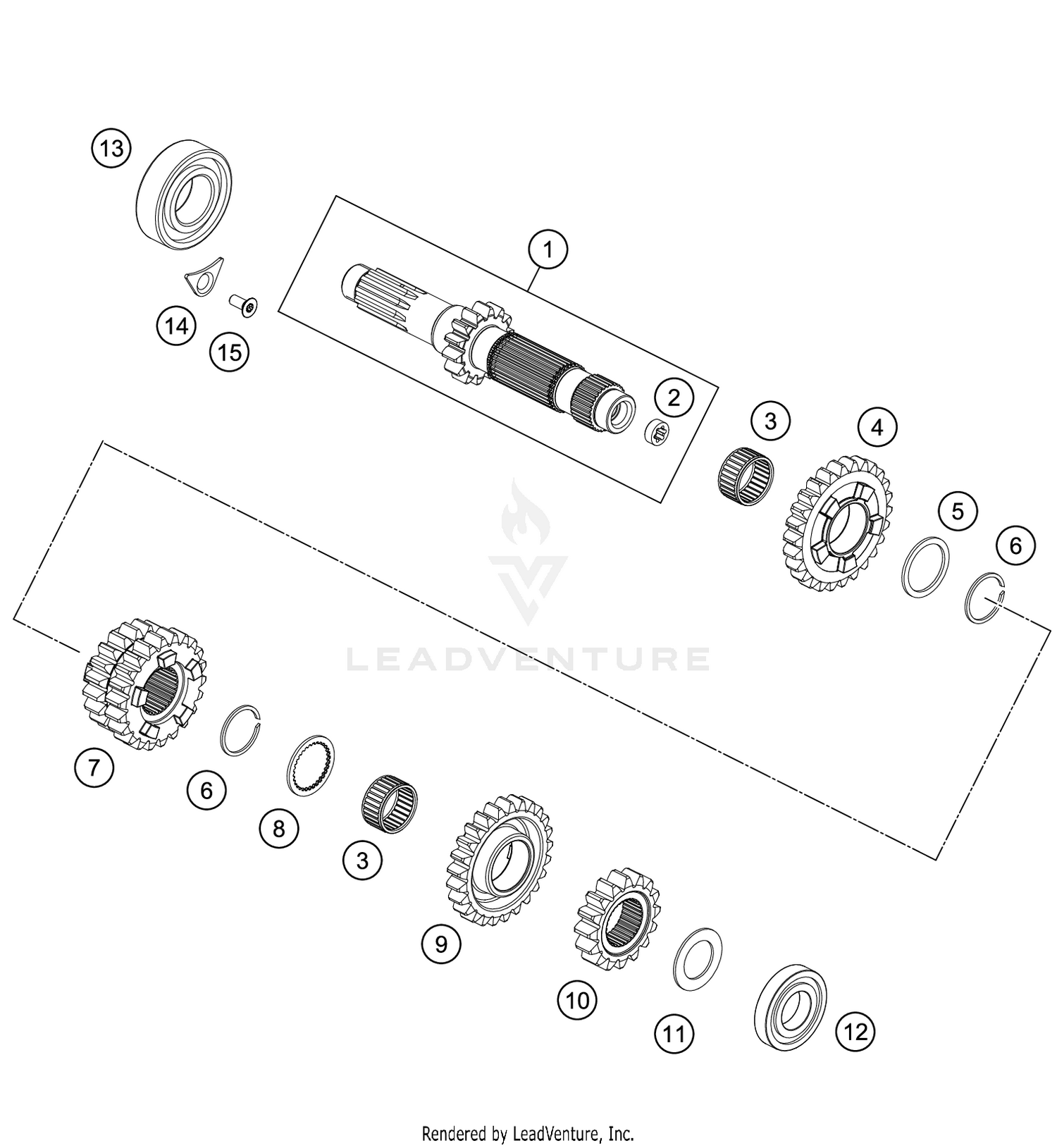

2018 KTM XC 300 TRANSMISSION I - MAIN SHAFT OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Input shaft cpl.
77233201100
|
$678.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BUSHING
78033001110
|
$11.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
NEEDLE BEAR. K 22X26X13 TN
0405222613
|
$8.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Gear wheel set 6th gear
54833206100
Superseded by 79333106044
|
$271.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
STOP DISC 25X31X1,5
54833044000
|
$4.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CIRCLIP WS24
0417024000
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Sliding gear 3rd/4th., t=20/22
79233103100
|
$121.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
STOP DISC 25X0,8X30X30X7H
54833043000
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Idler gear 5.G, Z=25
54833205100
|
$82.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Idler gear 2 nd. gear T=16
54833202100
|
$41.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
DISK 20,2X32X1,3
77233015000
|
$4.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
GROOVED BALL BEAR. TM 16004 C3
0625160040
|
$23.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BALL BEARING 6205 C3 NTN
0625062054
|
$20.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Retaining bracket crankshaft bearing
75030085000
Superseded by 75030085100
|
$0.98 | ||
|
Unavailable |
|||
|
#15
INT. TORX FLAT HEAD M5X12 T25
0019050121S
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
