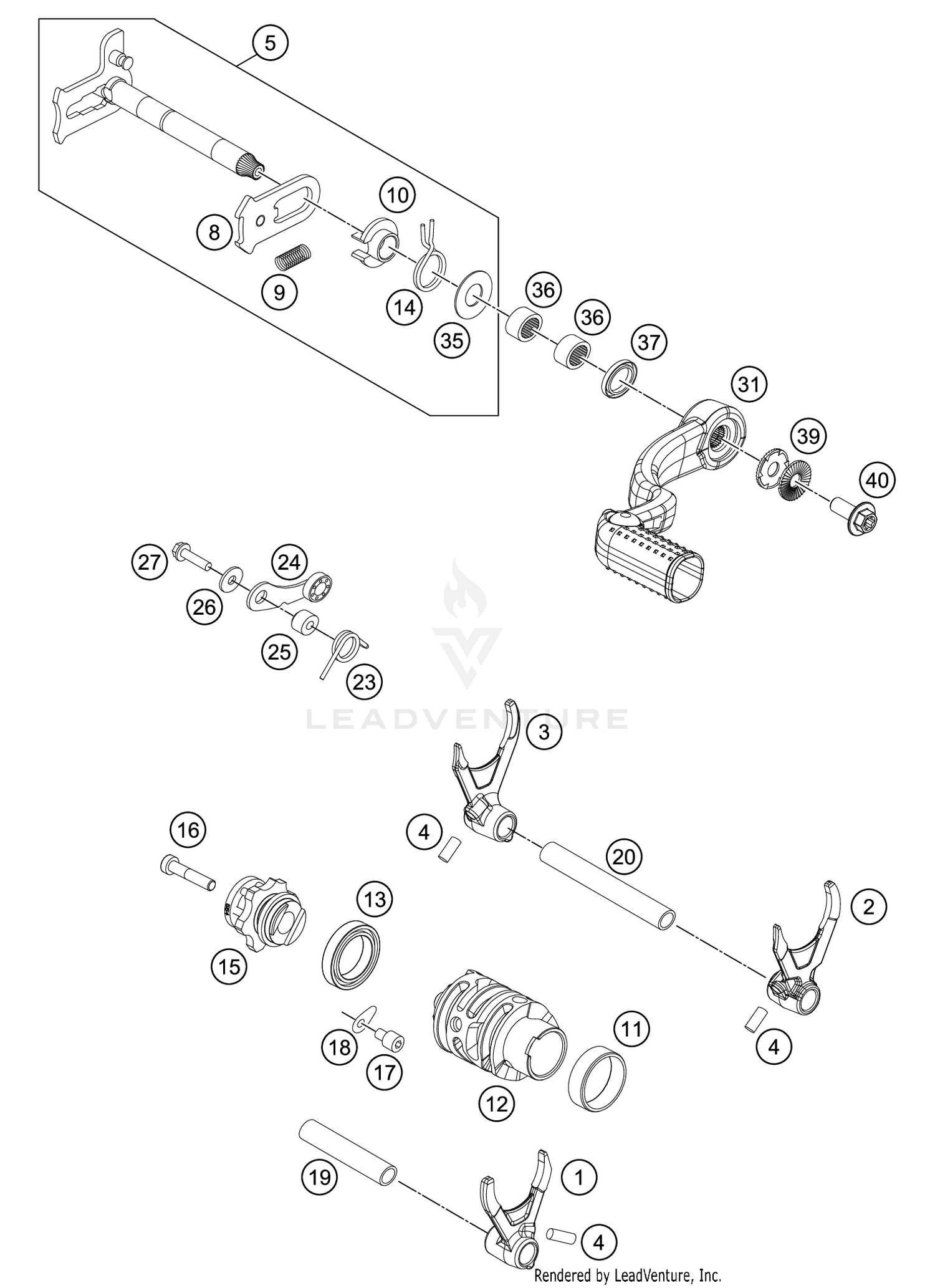

2018 KTM XC 300 SHIFTING MECHANISM OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT FORK 5.-6. GEAR
79234101000
|
$44.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SHIFT FORK 2.-4. GEAR
79234102000
|
$50.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SHIFT FORK 1.-3. GEAR
79234103000
|
$48.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NEEDLE ROLLER DIN5402 6X14,8
0402061480
|
$3.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SHIFT SHAFT CPL.
55434005133
|
$66.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SLIDING PLATE
61234008044
|
$9.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
TENSIONING SPRING 0,8MM
56534013100
|
$0.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPRING GUIDE
54634020000
|
$6.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
FRICTION BEARING CONTROLLER
79234012010
|
$22.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SHIFT ROLLER
79234112000
|
$66.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BALL BEARING 61805 C3
0625618050
|
$43.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
RETURN SPRING 03
54834014000
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GEARSHIFT CPL.
55434015000
|
$31.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
AH SCREW DIN6912 M 6X30
0984060302
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
hex lobe countersunc screw M5x10 - 10.9
0019050106S
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Retaining bracket crankshaft bearing
75030085000
Superseded by 75030085100
|
$0.98 | ||
|
Unavailable |
|||
|
#19
SHIFT. RAIL MAIN SHAFT 250/300
54834019000
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SHIFTING MAIN L=93MM 05
77034019000
|
$13.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
LOCKING LEVER SPRING
55434023100
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
LOCKING LEVER CPL.
55434024000
|
$40.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SLEEVE FOR LOCKING LEVER
54634052300
|
$2.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
WASHER DIN7349-5X15X2
0349000050
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
HH collar screw M5x20 TX30
0025050206
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
SHIFTING LEVER CPL.
55434031000
|
$104.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
STOP DISK 14X30X1
54634050000
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
needle sleeve HK 1412 14x20x12
54632095000
|
$6.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
radial shaft seal 14x24x6 B
0760142460
|
$8.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
PAIR NORDLOCK WASHER M6
50233041500
|
$3.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
HH collar screw M6x15 TX30
0024060156S
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
