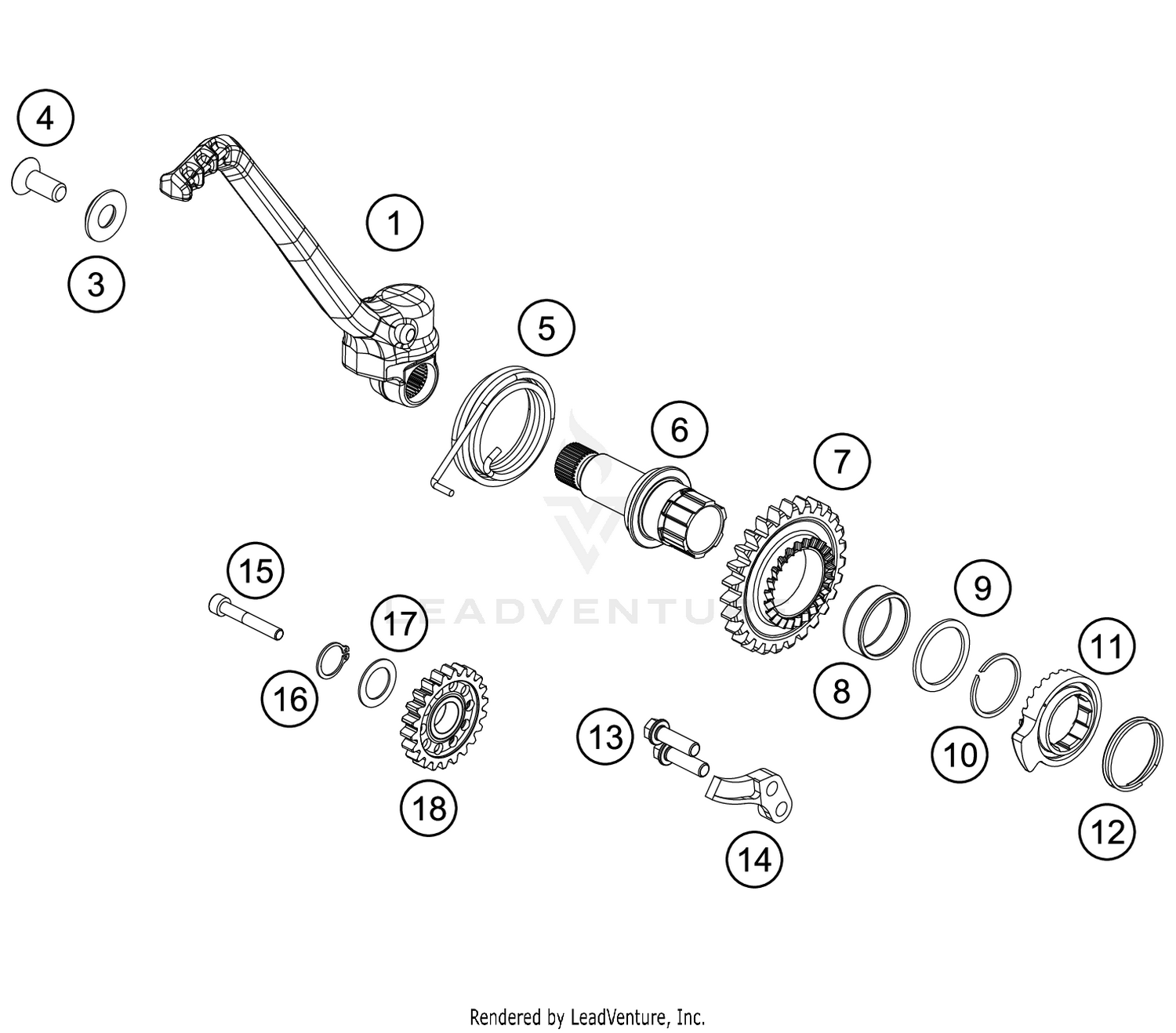

2018 KTM XC 300 KICK STARTER OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 KICKSTARTER CPL. 50433070044	$122.84
Available: Ships in 7-12 days. Add to View Price
#3 WASHER 8MM GALVANIZED 54633037000	$6.03
Available: Ships in 7-12 days. Add to View Price
#4 FLAT HEAD SCREW M. ISA45 M8X20 0019080206S	$1.79
Available: Ships in 7-12 days. Add to View Price
#5 Kick-starter spring 50433054100 Superseded by 50433054200	$4.03
Available: Ships in 7-12 days. Add to View Price
#6 KICK STARTER SHAFT 79233050000	$83.63
Available: Ships in 7-12 days. Add to View Price
#7 KICK STARTER WHEEL 27Z 79233051027	$95.74
Available: Ships in 7-12 days. Add to View Price
#8 NEEDLE BEAR K 25X29X10 0405252910	$8.31
Available: Ships in 7-12 days. Add to View Price
#9 STOP DISC 25X31X1,5 54833044000	$4.16
Available: Ships in 7-12 days. Add to View Price
#10 CIRCLIP SW25 0417025000	$2.91
Available: Ships in 7-12 days. Add to View Price
#11 KICK STARTER RATCHET 50433052000	$48.70
Available: Ships in 7-12 days. Add to View Price
#12 RATCHET GEAR SPRING 1,2 MM 58033028000	$1.41
Available: Ships in 7-12 days. Add to View Price
#13 HH collar screw M6x20 TX30 0025060206	$2.02
Available: Ships in 7-12 days. Add to View Price
#14 BUMP PART 59033069000	$13.18
Available: Ships in 7-12 days. Add to View Price
#15 AH SCREW DIN0912 M 6X40 0912060406	$0.83
Available: Ships in 7-12 days. Add to View Price
#16 CIRCLIP DIN0471-17X1 0471170010	$1.18
Available: Ships in 7-12 days. Add to View Price
#17 STOP DISC 17,2X26X1 B 50333041000	$2.13
Available: Ships in 7-12 days. Add to View Price
#18 KICKSTART IDLER CPL. 79233053000	$72.99
Available: Ships in 7-12 days. Add to View Price
