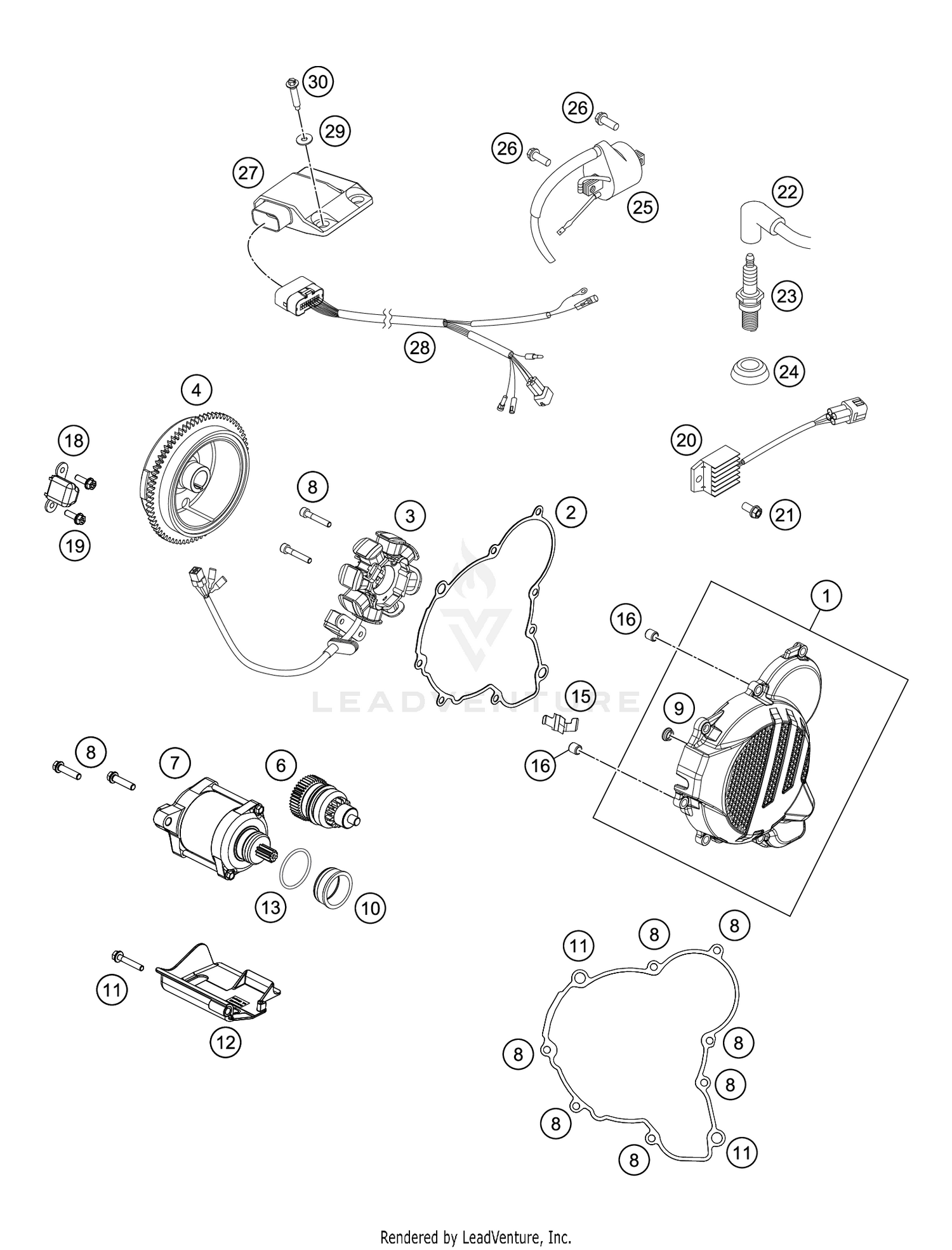

2018 KTM XC 300 IGNITION SYSTEM OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Ignition cover cpl.
5543020214415
|
$84.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GASKET IGNITION COVER
55430040000
Superseded by 55430040100
|
$13.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
STATOR
55439204000
|
$121.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
ROTOR
55439205000
|
$367.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BENDIX
55440126000
|
$116.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Starter motor
55440001000
Superseded by 55540001000
|
$231.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HH collar screw M6x25 TX30
0025060256
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
COLLAR BUSHING
55140030100
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BEARING BUSH
55440012000
|
$11.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
HH collar screw M6x30 TX30
0025060306
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PROTECTION CAP STARTER ENGINE
55440040044
|
$15.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
O-RING 34,59X2,62
0770021260
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Holding plate generator cable
55439140120
Superseded by 55439140220
|
$14.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
DOWEL 9,8 X7X10
49030090100
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
pulse generator KOKUSAN 4K3-A/B
59039034000
|
$83.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
HH collar screw M5x16 TX30
0025050166
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
VOLTAGE REGULATOR 04
80011034000
|
$93.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COLLAR SCREW M6X12 TX
0023060123
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPARK PLUG CAP NGK REINFORC.04
47039090000
|
$22.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SPARK PLUG NGK BR7ES
54739093000
|
$3.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SEALING CUP FOR SPARK PLUG
50231012000
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
IGNITIONCOIL ''IG5128''
59039006000
|
$62.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
COLLAR SCREW M6X18 ISA30
0026060186
|
$0.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
Dash board box 300 18
55639131000
|
$251.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HARNESS CDI BOX 2T 2017
55439032000
|
$53.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SPECIAL SCREW K60X30 WS=6
0017060305
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
washer DIN 9021 A - 5.3
0021050003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
