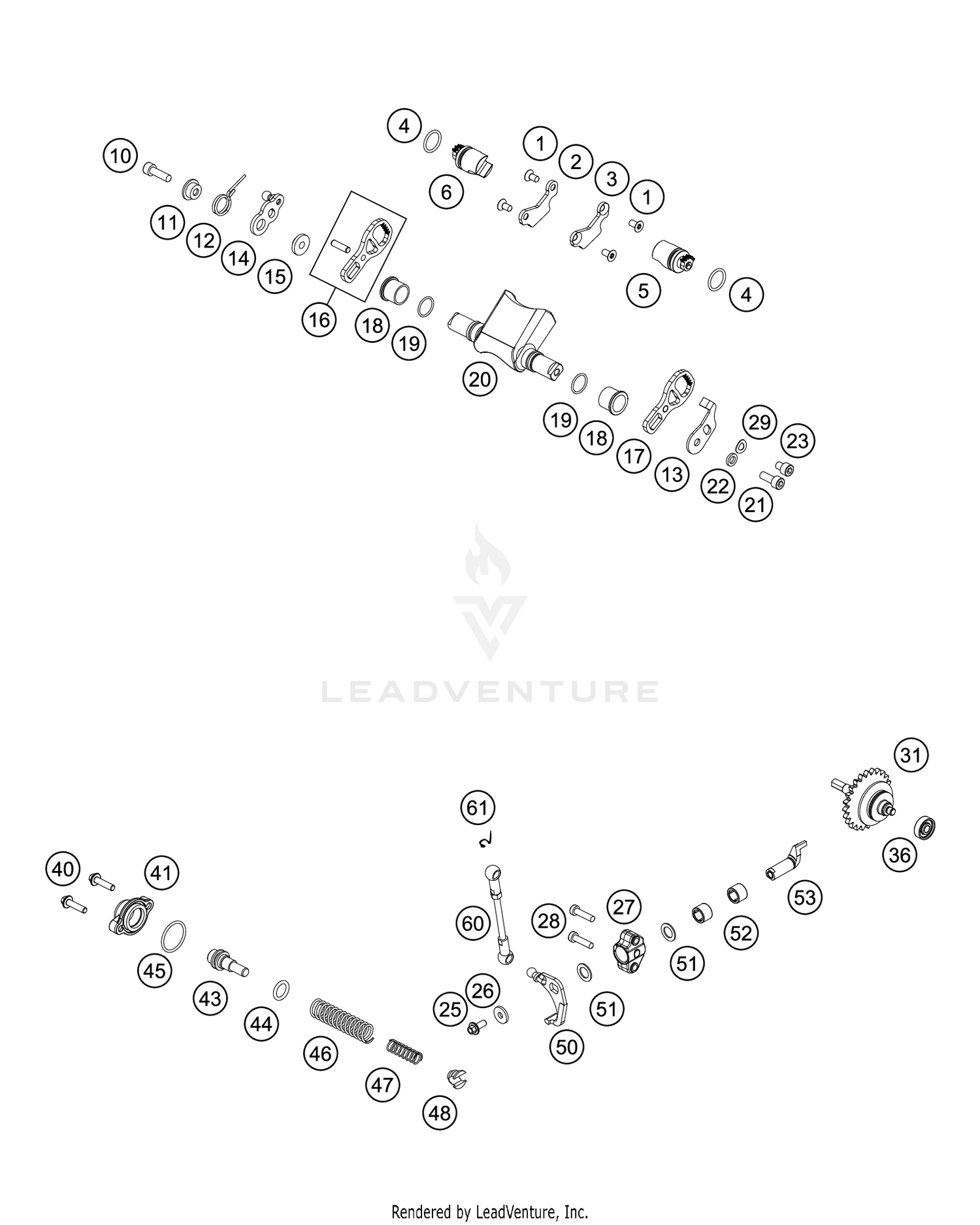

2018 KTM XC 300 EXHAUST CONTROL OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
hex lobe countersunc screw M5x10 - 10.9
0019050106S
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
retainer plate right
54837362000
Superseded by 54837362100
|
$12.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
retainer plate left
54837363000
Superseded by 54837363100
|
$12.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
O-RING 16,00X2,00 VITON
0770160021
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CONTROL ROLLER 300 LEFT CPL.
55437161044
|
$38.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CONTROL ROLLER 300 RIGHT CPL.
55437162044
|
$38.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
AH SCREW DIN0912-M 6X20
0912060203
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPRING SLEEVE
54637067000
|
$3.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
OVERLOAD SPRING
54637066000
|
$3.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RETAIN.PLATE CONTROL FLAP '92
54637085300
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CONTROL LEVER WITH BALL TYPE
54637065000
|
$20.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BUSHING SLEEVE
54637068100
|
$7.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GEAR SEGMENT RIGHT CPL. 08
54837364044
|
$37.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GEAR SEGMENT 300 L/S 08
54837364050
|
$30.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
exaust flap bushing
50437023000
Superseded by 50437023100
|
$4.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
O-RING 15,00X1,50 VITON
0770150151
|
$2.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CONTROL FLAP 300
55637120000
|
$87.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
AH SCREW DIN0912-M 6X16
0912060163
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
WASHER 6,5X11X2
54637056100
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
AH SCREW DIN0912-M 6X 8
0912060083
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HH COLLAR SCREW M 5X12 WS=6
0014050123
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
WASHER DIN7349-5X15X2
0349000050
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BEARING SUPPORT
55437058000
|
$15.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HH COLLAR SCREW M5X25 ISA30
0025050256
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
spring washer DIN 137 B - 6
0137060003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
Centrifugal force governor cmpl.
55437050044
Superseded by 55537050444
|
$177.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BALL BEARING 626LLBC3/5K
54637098100
|
$12.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
HH COLLAR SCREW M 5X20 WS=6
0014050203
|
$2.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
Closing cover
54637070100
Superseded by 55537035000
|
$17.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
Spring thrust bearing
54837075000
Superseded by 54837075100
|
$13.99 | ||
|
Unavailable |
|||
|
#44
O-RING 12,37X2,62 NBR70
0770021120
|
$2.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
O-RING 24,00X2,00 NBR70
0770240020
|
$1.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
ADJUST. SPRING 2003
54837069000
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
AUXILIARY SPRING SOFT, RED
54837072000
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
AUXILIARY SPRING MID. YELLOW
54637072300
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
AUXILIARY SPRING HARD GREEN
54837072100
|
$2.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#48
SPRING INSERT
54637071200
|
$9.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
angle lever
47237056000
|
$34.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
SHIM WASHER DIN988 10X16X1
0988101610
|
$1.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
needle sleeve HK 1010 10x14x10
0618101410
|
$5.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53
ADJUSTING LEVER 250/300
55437057100
|
$40.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#60
CONNECTING ROD CPL.
55437095044
|
$20.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#61
SECURING DIN-71805-S-8
50237195055
|
$1.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
