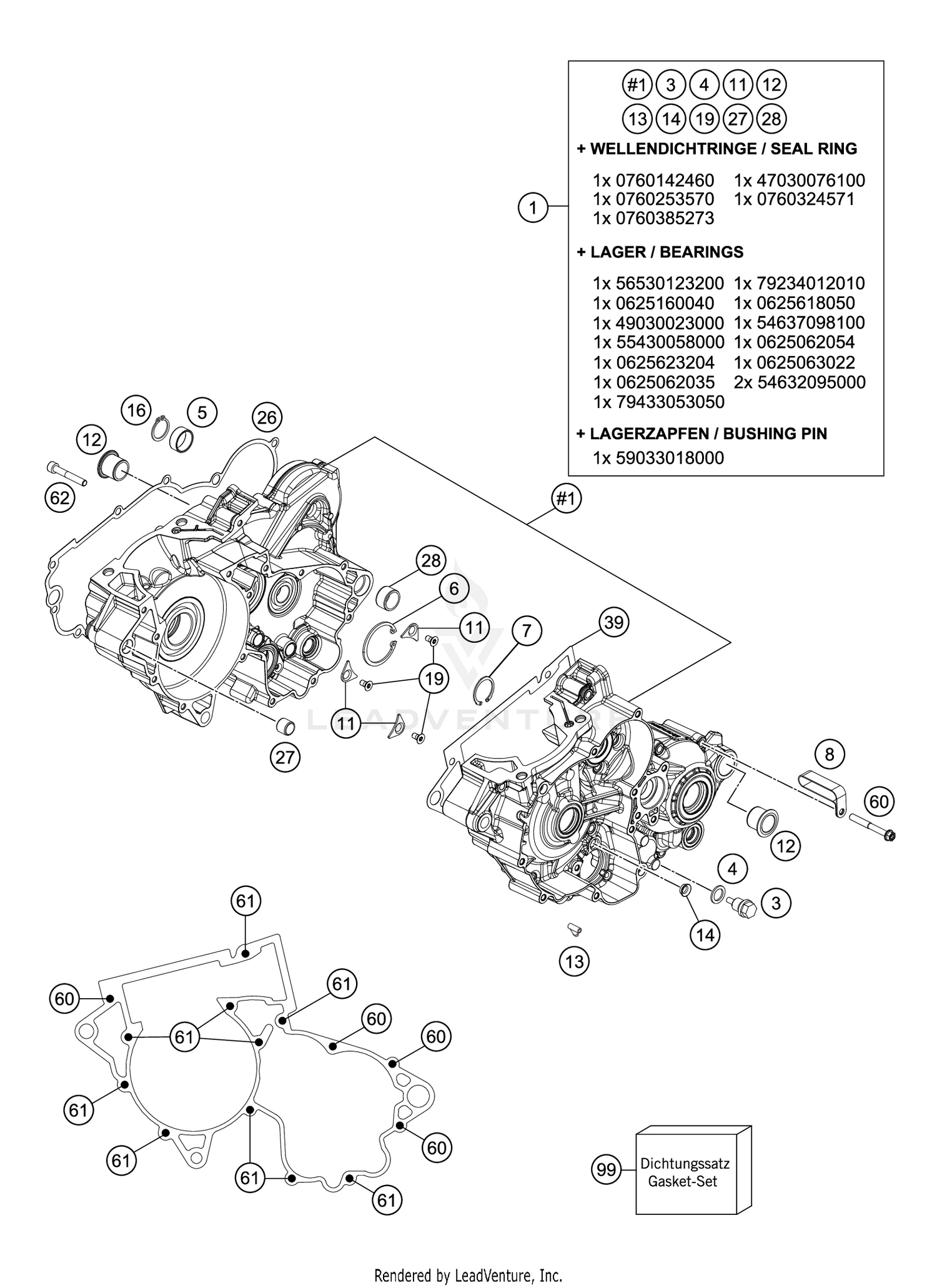

2018 KTM XC 300 ENGINE CASE OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Engine case cpl.
55430200144
|
$106.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$10.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CAROBRONZE BUSH
79433053050
|
$8.19 | ||
|
Unavailable |
|||
|
#6
CIRCLIP DIN0472-42X1,75
0472042175
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CIRCLIP DIN0472-28X1,2
55430059100
|
$0.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Bracket for bleeding tube
55430090000
|
$8.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Retaining bracket crankshaft bearing
75030085000
Superseded by 75030085100
|
$0.98 | ||
|
Unavailable |
|||
|
#12
CASE BUSH
75030010100
|
$11.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
ANGLE PIECE 50CCM LC 2001
45130022000
|
$5.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
COLLAR BUSHING
55140030100
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CIRCLIP DIN471 20X1,2
0471200120
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
hex lobe countersunc screw M5x10 - 10.9
0019050106S
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CLUTCH COVER GASKET INSIDE
55430025100
|
$22.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
DOWEL BUSHING 13,8X11X12
54630027000
|
$6.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
Dowel, 21x12
54830027000
Superseded by 54830027100
|
$4.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
ENGINE CASE GASKET
55430039000
|
$35.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#60
HH collar screw M6x60 TX30
0025060606
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#61
HH COLLAR SCREW M6X45 TX30
0025060456
|
$1.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#62
AH SCREW DIN0912 M 6X40
0912060406
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
Seal Kit Engine 250/300
55430199000
Superseded by 55430199001
|
$281.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
