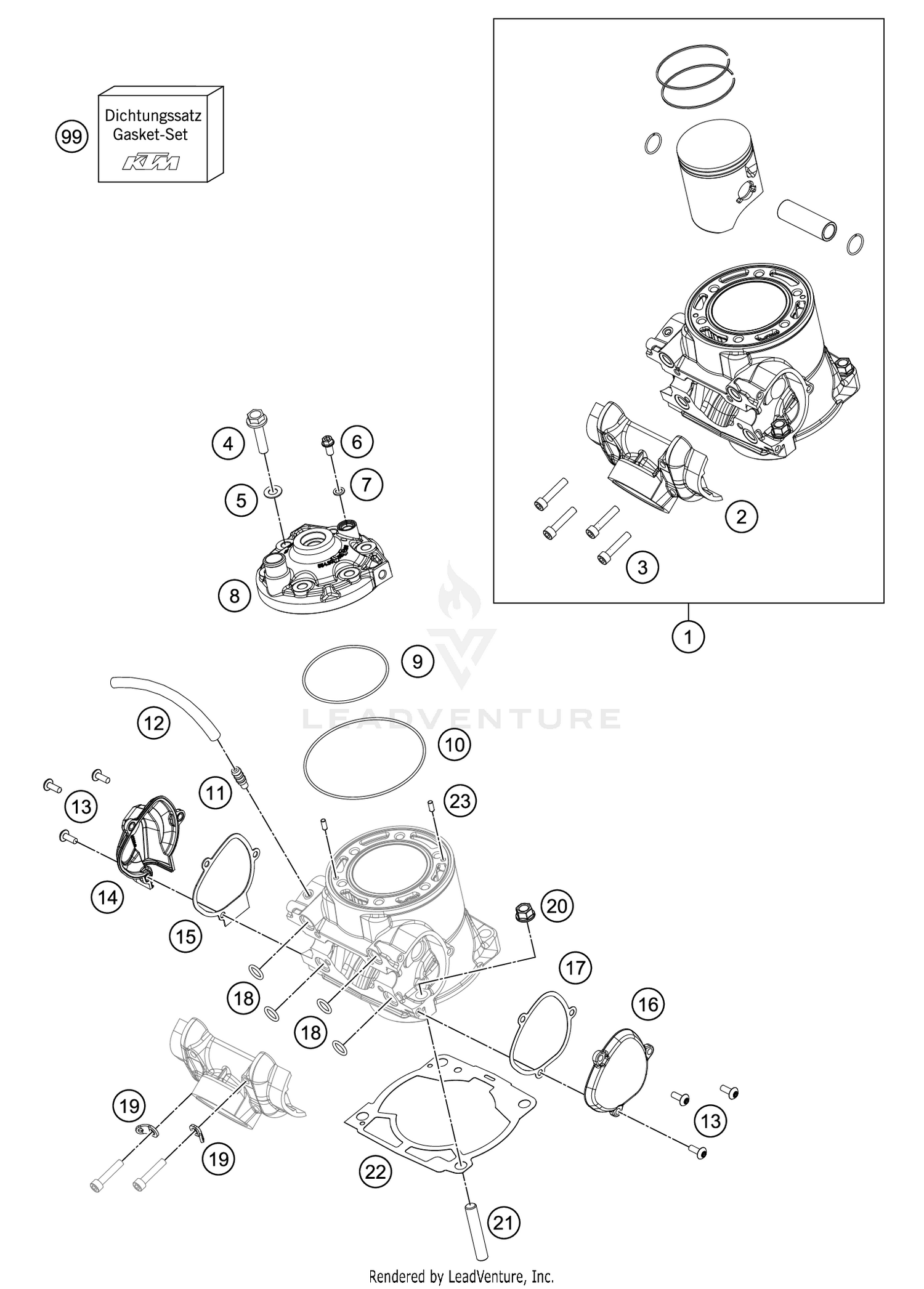

2018 KTM XC 300 CYLINDER, CYLINDER HEAD OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER + PISTON KPL. 17
55630038000
|
$1,210.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Connection Flange
55437001000
|
$298.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
AH SCREW DIN0912-M 6X35
0912060353
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
COLLAR SCREW M 8X35 WS=13
54830079000
|
$3.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CU-SEAL RING 8 X 16 X 1
56530080000
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CYLINDER HEAD 300 XC
55630206000
|
$149.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O-RING 78,00X2,00 VIT. BLACK
0770078020
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
O-ring 105x2
0770105020
|
$5.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
VACUUM CONNECTION M 6X1
58336020090
|
$6.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PVC-HOSE 6X9
50335030001
|
$6.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SCREW M5X14 TORX 25 07
58605083014
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Exhaust control cover rh
5483700700015
Superseded by 5483700710015
|
$36.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Gasket control cover, right
54837008000
Superseded by 55537008000
|
$6.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CONTROL COVER L/S 09
5483700500015
|
$23.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Gasket control cover, left
54837006000
Superseded by 55537006000
|
$6.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
O-RING 11,3 X2,4 SILICON
0770116241
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
RETAINING PLATE
51005074000
|
$2.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$0.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
Stud M10x35
0835100351S
Superseded by 0835100353
|
$1.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CYLINDER BASE GASKET
55430030025
|
$8.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CYLINDER BASE GASKET
55430030020
|
$8.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CYLINDER BASE GASKET
55430030040
|
$8.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CYLINDER BASE GASKET
55430030050
|
$8.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
CYLINDER FOOT GASKET
55430030075
|
$9.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$2.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
gasket kit piston 250/300
55430097000
Superseded by 55430097101
|
$97.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
