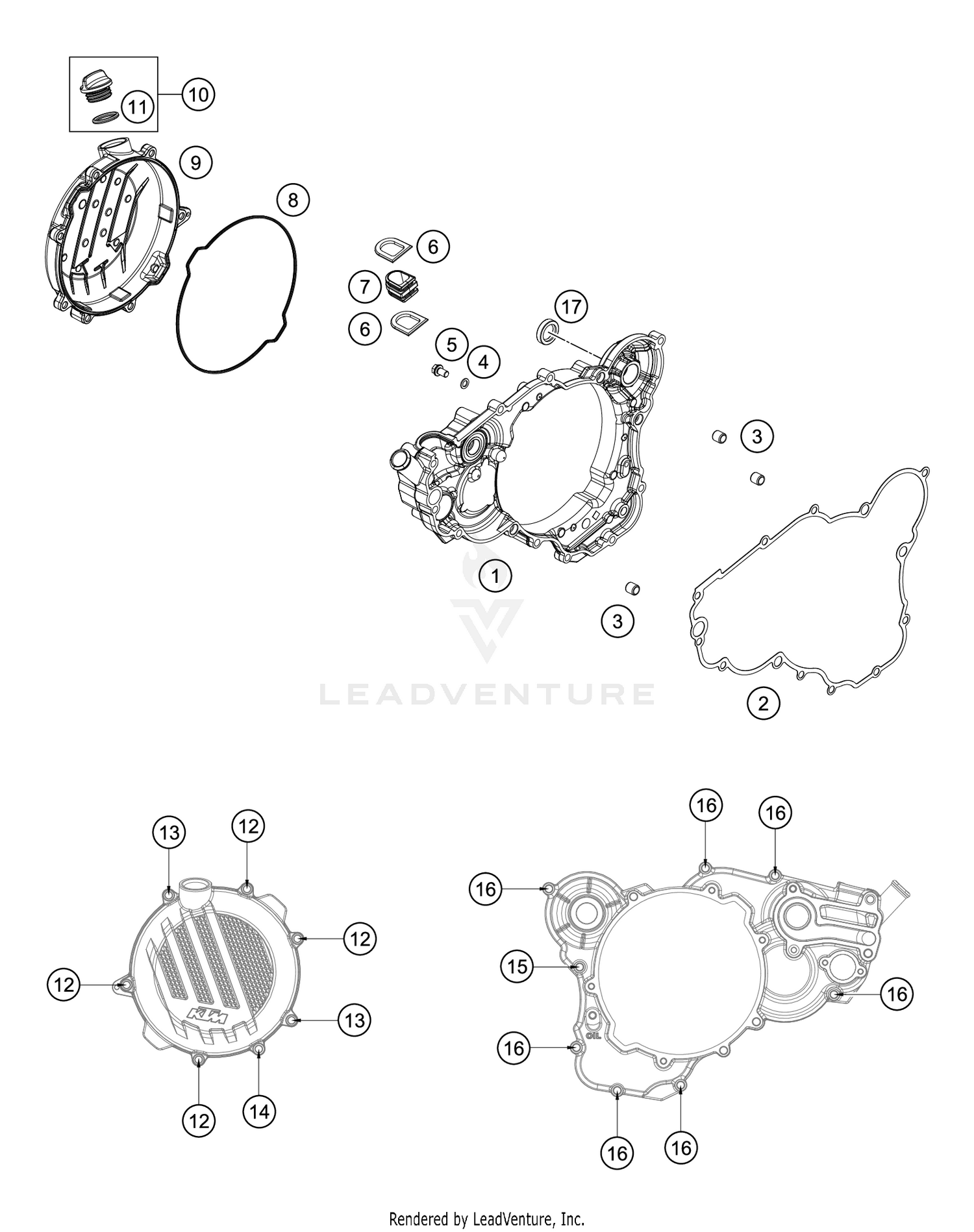

2018 KTM XC 300 CLUTCH COVER OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 Inner clutch cover cpl. 2018 55430001044 Superseded by 55430001144	$137.22
Available: Ships in 7-12 days. Add to View Price
#2 CLUTCH COVER GASKET INSIDE 55430025000 Superseded by 55430025100	$22.57
Available: Ships in 7-12 days. Add to View Price
#3 DOWEL 9,8 X7X10 49030090100	$1.18
Available: Ships in 7-12 days. Add to View Price
#4 CU-SEAL RING DIN7603-6X10X1 0603061001	$1.30
Available: Ships in 7-12 days. Add to View Price
#5 HH collar screw M6x10 TX30 0025060106	$2.02
Available: Ships in 7-12 days. Add to View Price
#6 SEALING ELEMENT BOTTOM 54637107000	$7.01
Available: Ships in 7-12 days. Add to View Price
#7 SEALING CARRIER 07 54837091100	$2.26
Available: Ships in 7-12 days. Add to View Price
#8 CLUTCH COVER GASKET OUTSIDE 55430027000	$12.58
Available: Ships in 7-12 days. Add to View Price
#9 CLUTCH COVER OUTSIDE 5543002600015	$57.49
Available: Ships in 7-12 days. Add to View Price
#10 OIL FILLER CAP M24x3 WITH O-R 79430020033	$7.48
Available: Ships in 7-12 days. Add to View Price
#11 O-RING 19,00X3,00 NBR 0770191015	$1.18
Available: Ships in 7-12 days. Add to View Price
#12 HH collar screw M6x20 TX30 0025060206	$2.02
Available: Ships in 7-12 days. Add to View Price
#13 HH collar screw M6x60 TX30 0025060606	$2.26
Available: Ships in 7-12 days. Add to View Price
#14 HH collar screw M6x55 TX30 0025060556	$2.58
Available: Ships in 7-12 days. Add to View Price
#15 HH collar screw M6x30 TX30 0025060306	$2.08
Available: Ships in 7-12 days. Add to View Price
#16 HH collar screw M6x25 TX30 0025060256	$2.22
Available: Ships in 7-12 days. Add to View Price
#17 SHAFT SEAL RING 19X30X7 B 0760193070	$5.22
Available: Ships in 7-12 days. Add to View Price
