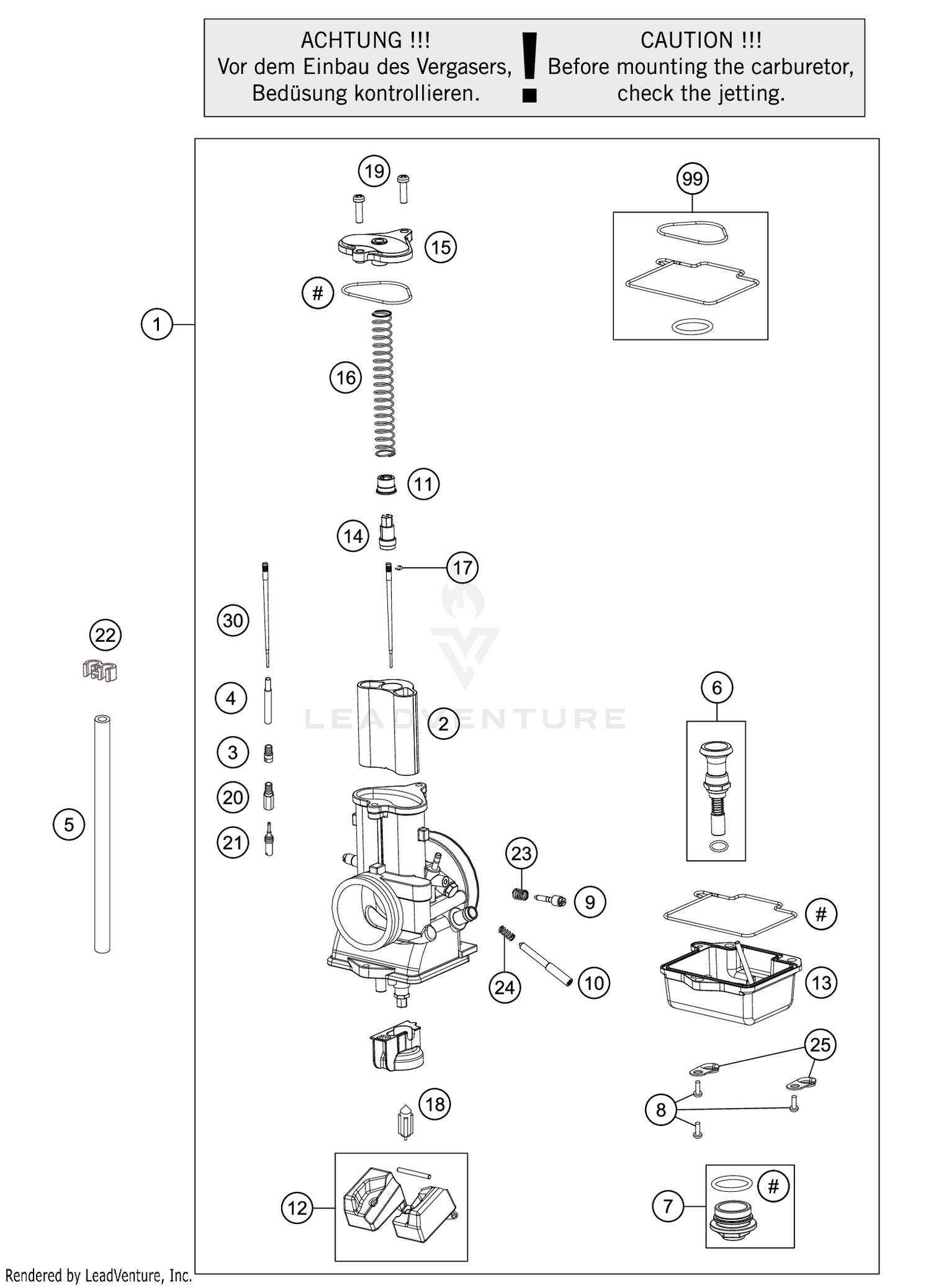

2018 KTM XC 300 CARBURETOR OEM Parts Diagram
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Vergaser
55431101244
|
|||
|
Unavailable |
|||
|
#2
THROTTLE SLIDE ''4.0''
55431035040
|
$175.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
STARTING JET ''50''
55431051050
|
$20.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
STARTING JET ''80''
55431051080
|
$21.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NEEDLE JET ''S-1''
55431021100
|
$19.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Needle jet S-4
55431021400
|
$18.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Needle jet S-7
55431021700
|
$18.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NEEDLE JET ''R-8''
55431021000
|
$19.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PVC-HOSE 4X6MM
31007007101
|
$3.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PVC-HOSE 3X5MM
52031137001
|
$4.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
start piston
55431245000
|
$31.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW PLUG CPL.
55431699000
|
$27.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HH COLLAR SCREW M 5X16 WS=6
0014050163
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Adjuster
55431017000
|
$16.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Adjuster
55431019000
|
$13.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
RING
55431034050
|
$3.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
FLOAT & PIN
55431009000
|
$117.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
FLOAT CHAMBER CPL.
55431011000
|
$131.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GUIDE HOLDER
55431030050
|
$51.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CARBURETTOR COVER
55431027000
|
$101.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SLIDING SPRING MIKUNI
55431030000
|
$8.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
LOCK RING
55431034060
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FLOAT NEEDLE CPL.
55431020000
|
$46.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW CARBURETTOR COVER
554831025000
|
|||
|
Unavailable |
|||
|
#20
MAIN JET ''100''
55431029100
|
$7.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''155''
55431029155
|
$7.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''400''
55431029400
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''410''
55431029410
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''420''
55431029420
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''430''
55431029430
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''440''
55431029440
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''450''
55431029450
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''460''
55431029460
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''470''
55431029470
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''480''
55431029480
|
$7.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''490''
55431029490
|
$7.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''500''
55431029500
|
$7.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''520''
55431029520
|
$7.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''540''
55431029540
|
$7.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''560''
55431029560
|
$7.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''580''
55431029580
|
$7.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
MAIN JET ''600''
55431029600
|
$7.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''15''
55431007150
|
$15.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''17.5''
55431007175
|
$15.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
"Idle jet ""22,5"""
55431007225
|
$15.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
"Idle jet ""25"""
55431007250
|
$15.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
"Idle jet ""27,5"""
55431007275
|
$15.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''30''
55431007300
|
$15.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''32.5''
55431007325
|
$15.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''35''
55431007350
|
$15.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''37.5''
55431007375
|
$15.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''40''
55431007400
|
$15.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''42.5''
55431007425
|
$15.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''45''
55431007450
|
$15.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''47.5''
55431007475
|
$15.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''50''
55431007500
|
$15.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
IDLING JET ''52.5''
55431007525
|
$15.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
distance holder
55431073000
|
$9.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
COMPRESSION SPRING ADJUSTER
55431017010
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
compressing spring
55431019010
|
$6.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
plate
55431012000
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6GAY69-74''
55431934000
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY42-71''
55431034000
|
$17.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY42-72''
55431034100
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY42-73''
55431034200
|
$17.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY42-74''
55431034300
|
$18.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY42-75''
55431034400
|
$14.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY42-76''
55431034500
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY43-71''
55431134000
|
$17.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY43-72''
55431134100
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY43-73''
55431134200
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY43-74''
55431134300
|
$18.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY43-75''
55431134400
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY43-76''
55431134500
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY44-71''
55431234000
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY44-72''
55431234100
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY44-73''
55431234200
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY44-74''
55431234300
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY44-75''
55431234400
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
JET NEEDLE ''6BFY44-76''
55431234500
|
$18.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
Gasket set Mikuni
55431099000
|
$23.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
