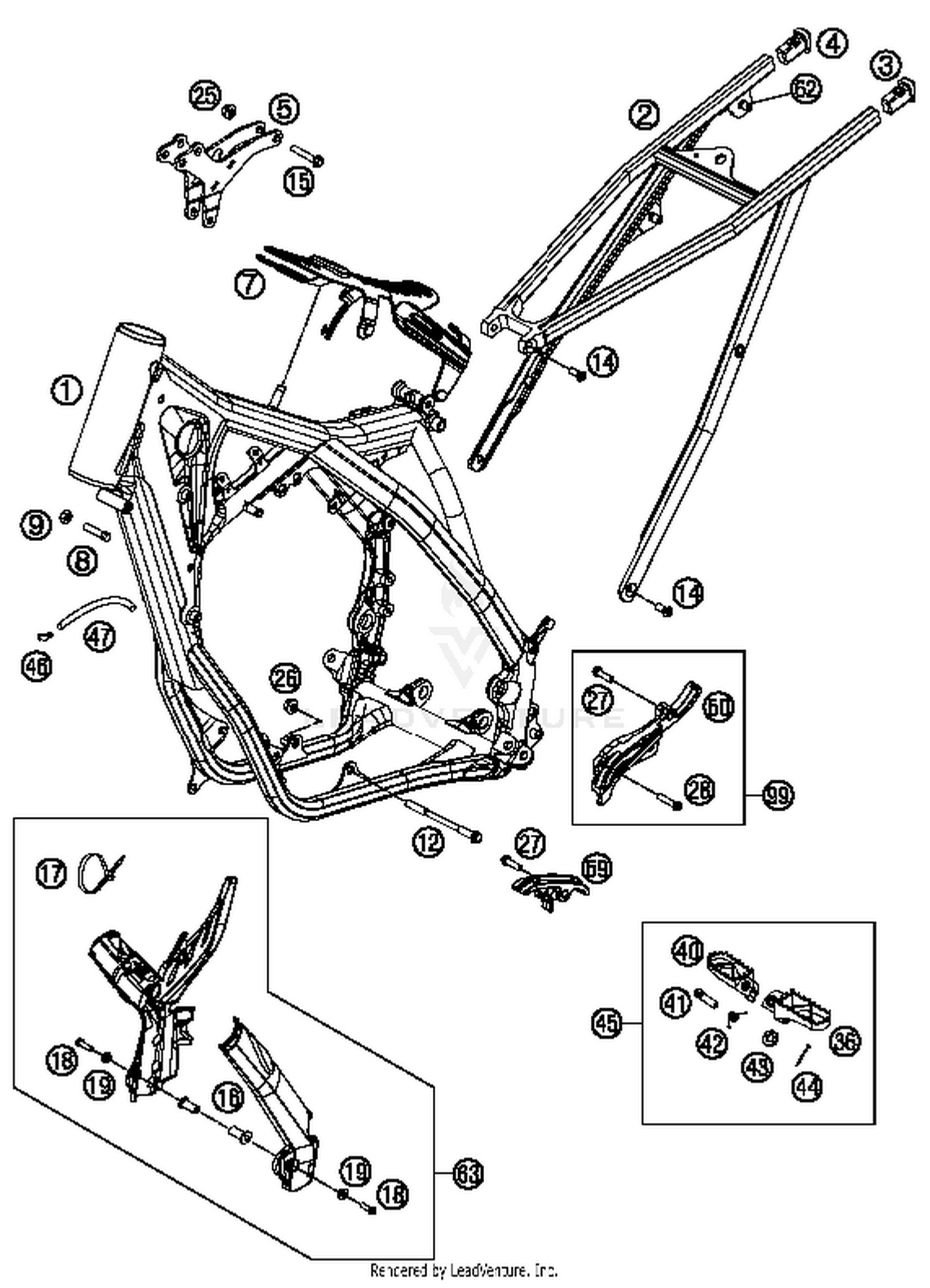

2014 KTM XC 300 Frame OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ANTRAZIT ''548L4''
54803601100BE
|
$1,641.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SUB FRAME SX
77203002000
|
$379.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SUB FRAME APPLICATION LEFT
78103002010
|
$22.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SUB FRAME APPLICATION RIGHT
78103002020
|
$20.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
REINFORCING 250 SX CPL.
54803613000
|
$44.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
TANK REST RUBBER
77207012000
|
$8.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPECIAL SCREW M8X26 WS=10
59001037000
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HEXAGON NUT DIN0934-M 8
0934080003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
engine brac.scr. M10x105 WS13
54603013000
|
$12.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
HH COLLAR SCREW M8X44 WS13
56530079000
Superseded by 56530079000S
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
|
$4.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CABLE TIE 140/2,5MM BLACK
44011076140
|
$0.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CABLE TIE 300/4,8MM BLACK
44011076305
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
|
$0.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BUSH F. FRAME PROTECTION 03
54803092060
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SELF LOCKING NUT M8 10.9
54310086200
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
HH collar screw M8x30
0025080306
|
$2.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HH collar screw M6x30 TX30
0025060306
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
FOOTREST L/S 08
59003040250
Superseded by 78003040050
|
$43.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
FOOTREST R/S 08
59003041250
Superseded by 78003041050
|
$43.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$12.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$4.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
PIN DIN0094-3,2X25 STEEL
0094032253
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
FOOTPEG L.+R. CPL. 03
5030314013390
|
$167.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
ANGLE PIECE '97
50303089000
|
$4.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
PVC-HOSE 7X10 PER METER
55007016001
|
$6.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
SPROCKET COVER 250 SX 07
54803096000
|
$10.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#59
CHAIN SLIDER LOWER PART CPL.
77203053000
|
$8.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#62
BLIND RIVET NUT EM6-60LF/HX
77303139000
|
$3.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#63
PLASTIC FRAME PROTECTION SET
77203094000
|
$51.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
SPROCKET COVER KIT
54803096010
|
$18.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
