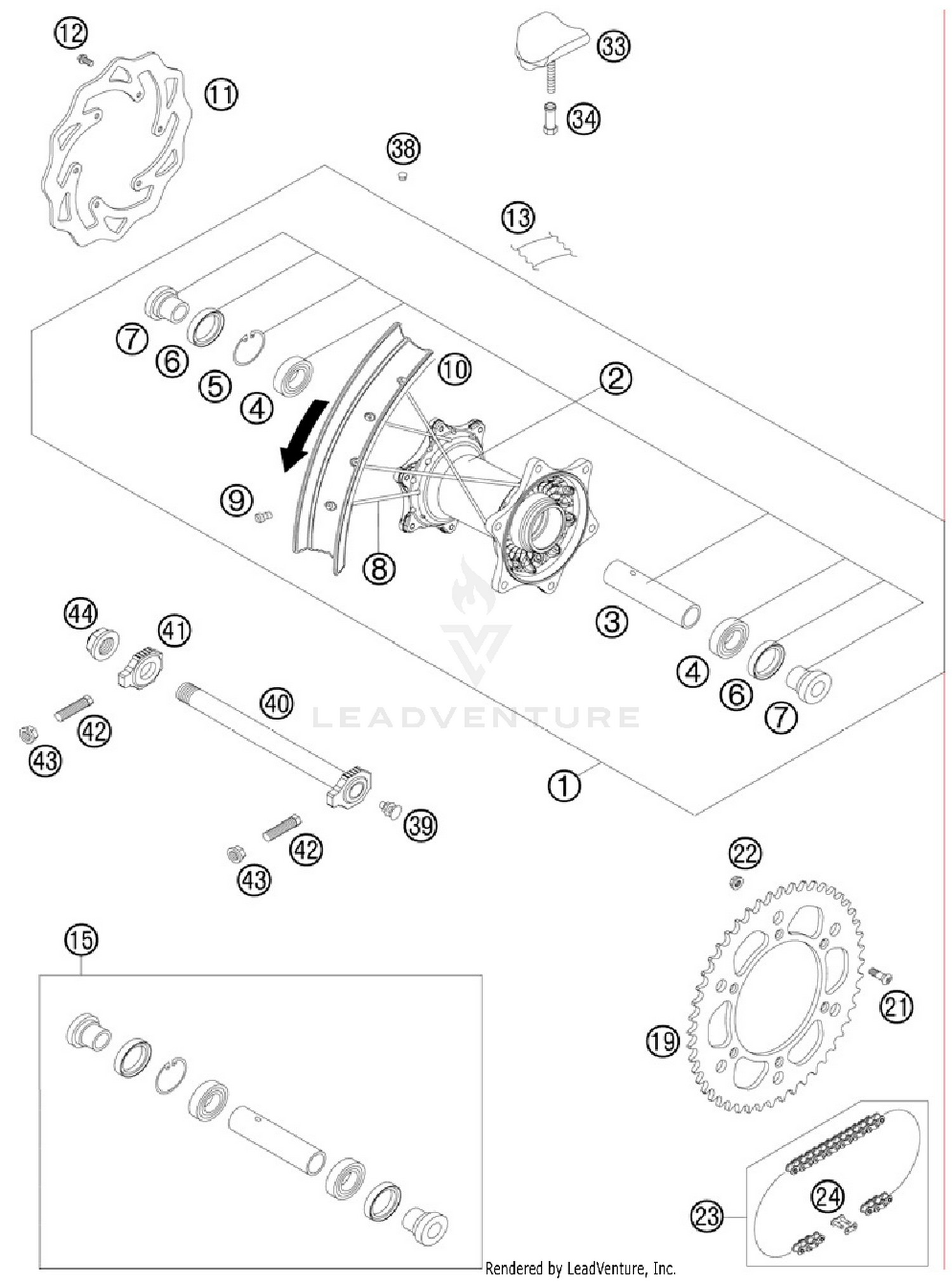

2012 KTM XC 300 Rear Wheel OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL 2,15X18''EXCEL 11
51510001044
|
$854.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
REARHUB CPL.
78010010144
Superseded by 26510010144
|
$313.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING DISTANCE TUBE 121,5MM
59010011000
Superseded by 77710011000
|
$20.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GR.BALL BEAR.6005 DDU2CG23S6NM
0625060058
|
$17.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CIRCLIP DIN0472-47X1,75
0472047175
|
$2.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SHAFT SEAL RING 32X47X7 BSL
0760324771
|
$12.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BUSHING FOR HUB 08
78010016000
|
$32.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPOKE M4,5X193- 18'' 11
77110071193
|
$4.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SPOKE NIPPLE M4,5 AL 11
77109072000
|
$2.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
RIM REAR 2,15X18''
51510070000
Superseded by 78110070000
|
$218.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BRAKE DISC REAR 220
77310060000
|
$127.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RIM BAND 18'' AND 19''
50310073200
|
$13.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
REAR WHEEL REP. KIT
78010015000
|
$107.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
REAR SPROCKET 38-T
58310051038
|
$62.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
REAR SPROCKET 42-T
58310051042
|
$62.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
REAR SPROCKET 40-T
58310151040
|
$62.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CORONA 45 T
58310151045
Superseded by 7771015104501
|
$48.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
REAR SPROCKET 48-T
58310151048
Superseded by 7771015104801
|
$48.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPROCKET 49-Z
58310151049
Superseded by 7771015104901
|
$48.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
REAR SPROCKET 50-T
58310151050
Superseded by 7771015105001
|
$48.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPROCKET 51-Z NATURE
58310151051
Superseded by 7771015105101
|
$48.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
REAR SPROCKET 52-T
58310151052
Superseded by 7771015105201
|
$48.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
hex nut EN 1661 M8 WS13
06923080003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CHAIN DID 118 LINKS
78010167118
Superseded by 78010267118
|
$112.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CONNECTING LINK F. 78010167118
78010166000
Superseded by 78010266000
|
$13.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
Rim lock 2,15"
54010100100
Superseded by 78110090200
|
$19.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
NUT FOR WHEEL HOLDER
77110090050
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
PLUG FOR RIM
55003135000
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
COVERING CAP SFL16
50210086000
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
WHEEL SPINDLE RE. CPL.265MM 07
77310085044
|
$75.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
CHAIN TENSIONER R/S 2000
50310084000
|
$20.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
screw M10x1.25x50 WS10
50304040100
|
$4.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
HH COLLAR NUT M10X1,25 WS=13
58414030000
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
HEXAGON NUT M20X1,5 '98
50310099000
|
$11.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
