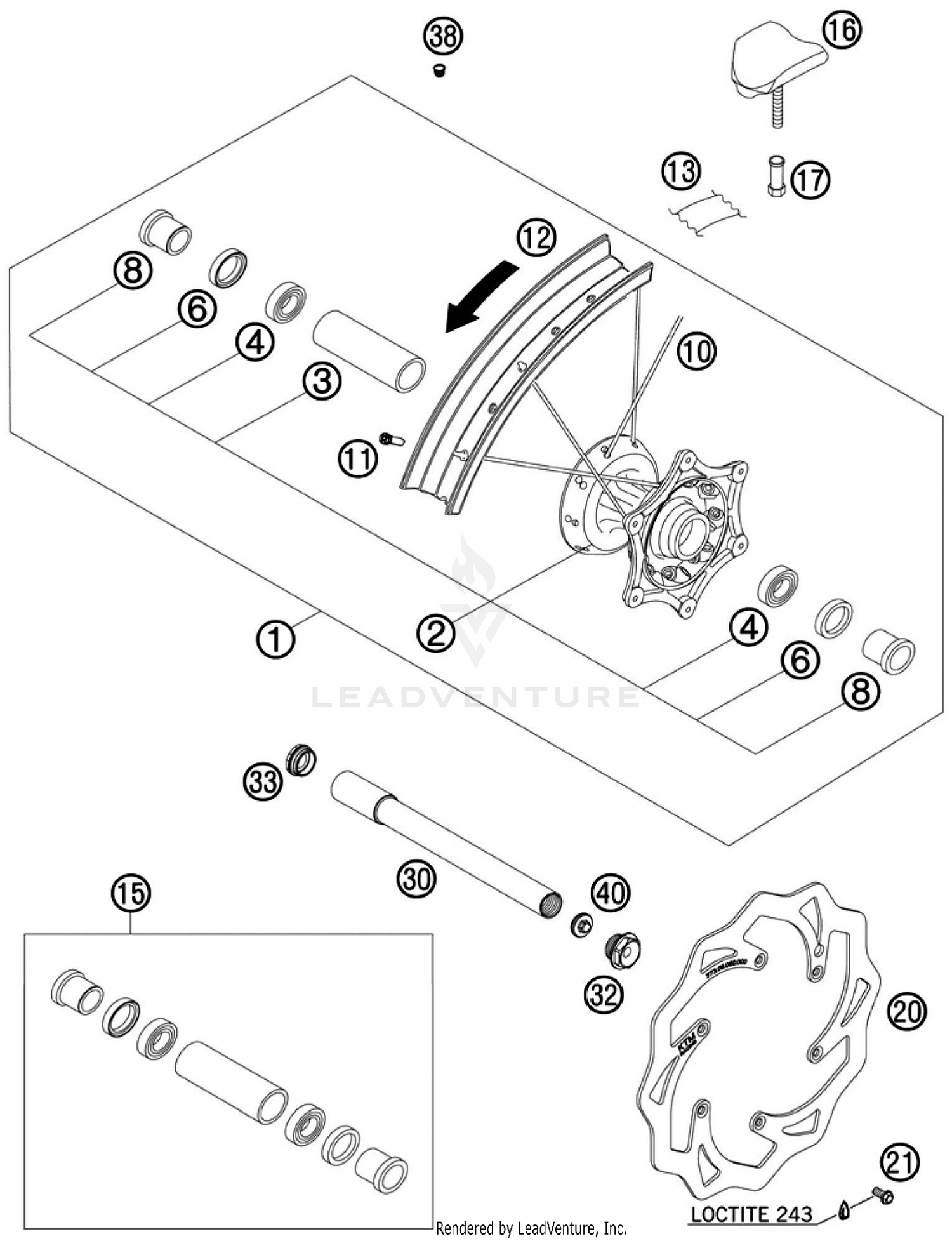

2010 KTM XC 300 Front Wheel OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL CPL.1,6X21''EXC.10
7800900114430
Superseded by 7800900124430
|
$744.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FRONT WHEEL HUB CPL.
78009010044
Superseded by 78009010144
|
$305.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEA.SPACERTUBE 35X2 L=79,4 03
54809011000
|
$25.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GR.BALL BEAR.6906 DDU2CG23S6NM
0625069068
|
$33.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SHAFT SEAL RING 35X47X7 TC
0760354771
|
$8.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPACER BUSHING F. FR. WHEEL 08
78009012000
|
$30.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPOKE M4,5x226-21'' 08
78009174226
|
$3.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Spoke nipple, Quadrax M4,5
50309072100
Superseded by 81210072200
|
$1.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
RIM FRONT 1,6X21'' BLACK
7800907000030
Superseded by 7810907000030
|
$220.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RIM BAND 21''
50309073000
|
$9.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
FRONT WHEEL REP. KIT
78009015000
|
$106.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Tyre locker 1,60"
51009100100
Superseded by 78109090200
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
NUT FOR WHEEL HOLDER
50310090050
Superseded by 77110090050
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BRAKE DISC FRONT 260
77309060000
|
$149.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
Wheel spindle, front
77309081000
Superseded by 77309081100
|
$82.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
SPINDLE SCREW M24X1,5 WS=27 03
54809082000
|
$9.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
PLUG BUSHING WS=27 03
54809081050
|
$9.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
PLUG FOR RIM
55003135000
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
AUXILIARY SCREW FRONT 06
54809081070
|
$5.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
