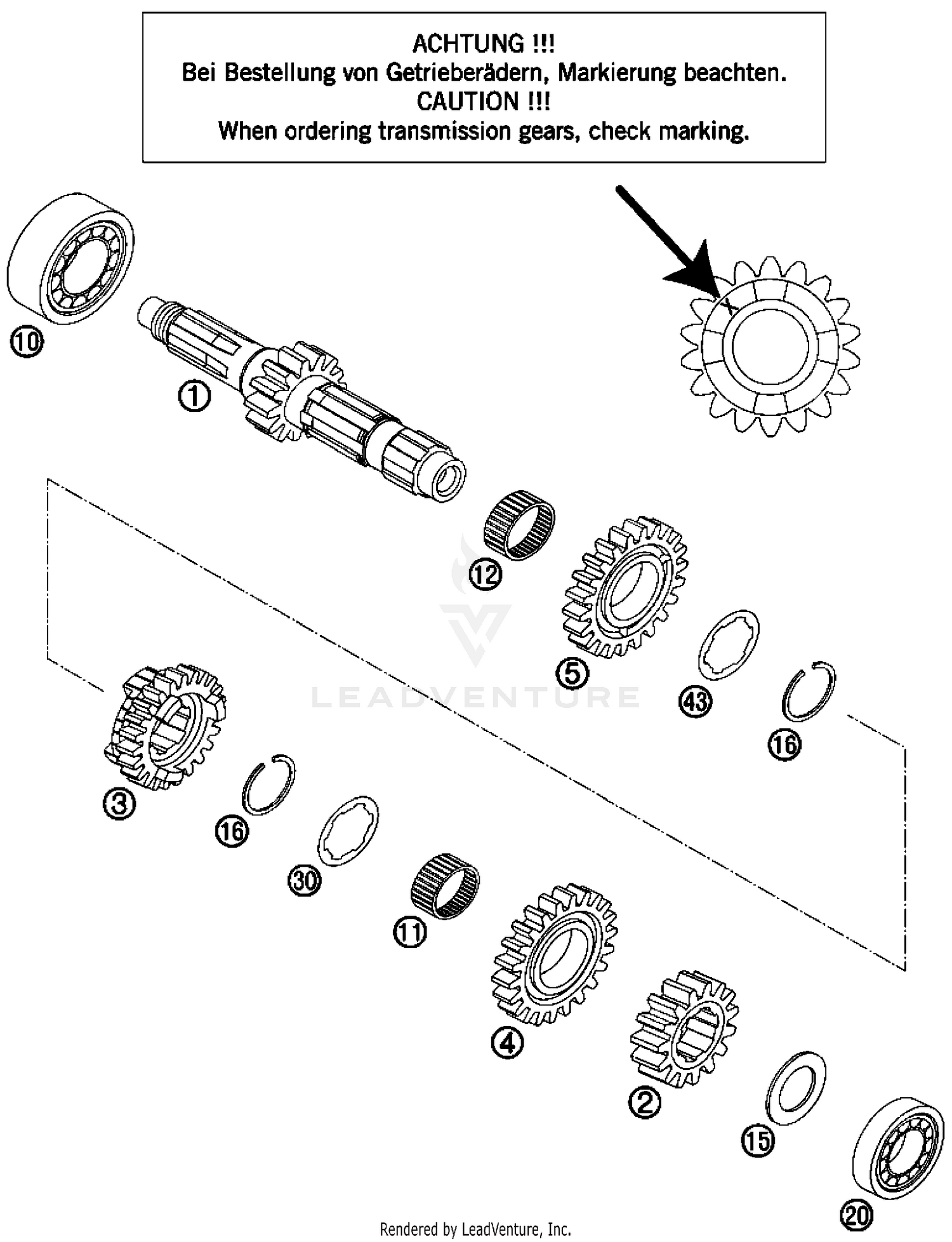

2008 KTM XC 300 Transmission I - Main Shaft OEM Parts Diagram
Accessory
+
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN SHAFT 14-T ''1E14'' 04
54833101000
|
$118.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Fixed gear 2nd g/16 teeth
54833002100
Superseded by 79333002000
|
$92.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SLIDING GEAR 3RD G.18-T ''3S18''
54833003000
|
$93.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Idler gear 4.G 21 teeth
54833004000
Superseded by 79333004000
|
$119.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Idler gear 5.G 22-Z
54833005000
Superseded by 79333005000
|
$120.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BALL BEARING 6205 C3 NTN
0625062054
|
$20.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NEEDLE BEAR. K 22X26X13 TN
0405222613
|
$8.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
NEDDLE BEAR. K24X28X11,9 DIV.
0405242812
|
$6.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
STOP DISK 20,2X33X1,5
54633015000
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Retaining ring 25x1,65
77033022000
Superseded by 77033022100
|
$1.59 | ||
|
Unavailable |
|||
|
#20
GROOVED BALL BEAR. TM 16004 C3
0625160040
|
$23.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
STOP DISC 25,2X32X1,5
59033030000
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
Stop disk
50333043000
Superseded by 79333043000
|
$2.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
