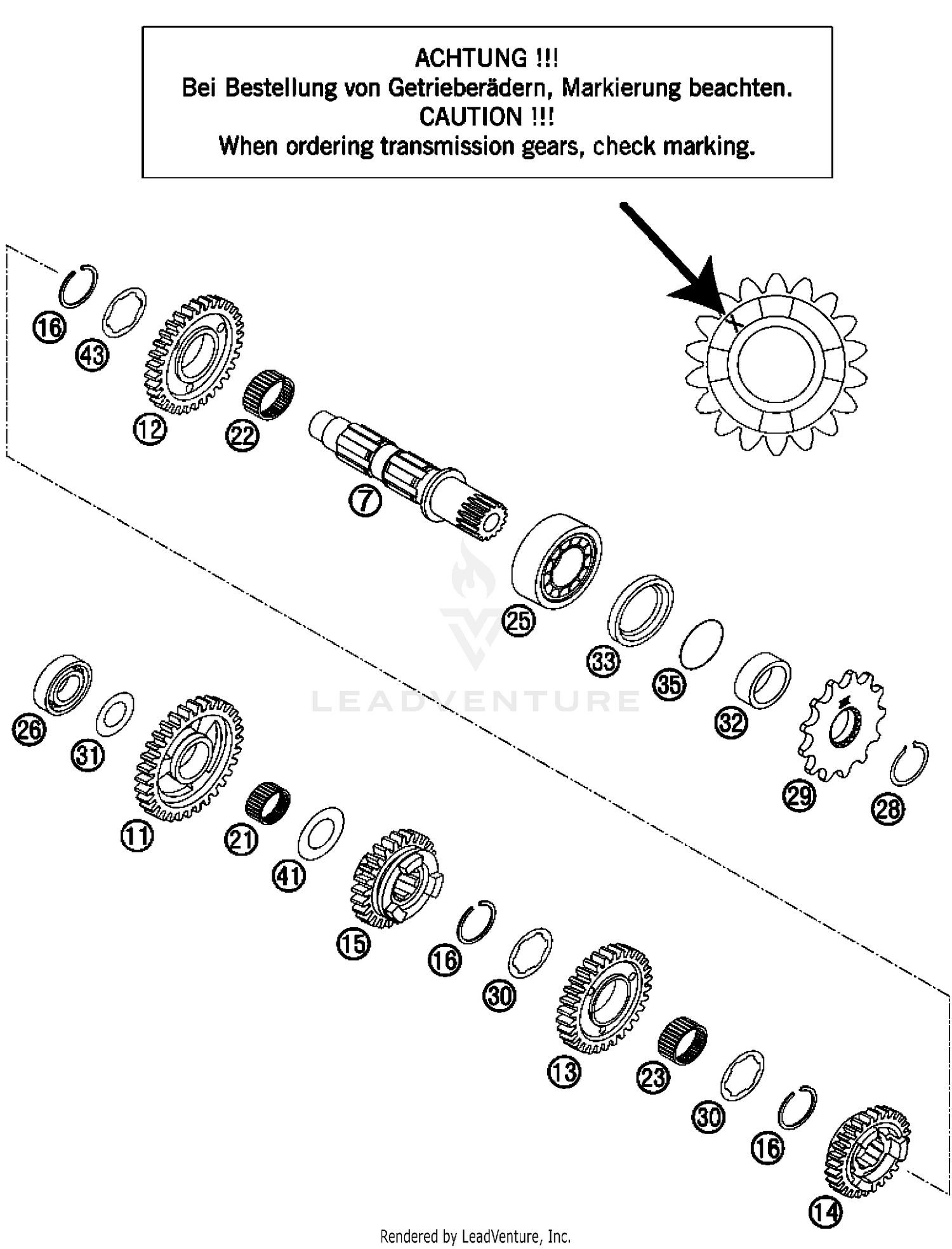

2008 KTM XC 300 Transission II - Countershaft OEM Parts Diagram
Accessory
+
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#7
COUNTERSHAFT 2003
54833007000
|
$126.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
IDLER GEAR 1ST G. 30-T ''1E30''
54833111000
|
$115.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Idler gear 2nd g 26 teeth
54833012100
Superseded by 79333012000
|
$148.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Idler gear 3rd g 24 teeth
54833013000
Superseded by 79333013000
|
$128.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Sliding gear 4 th.
54833014000
Superseded by 79333014000
|
$183.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Sliding gear 5 th.
54833015000
Superseded by 79333015000
|
$152.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Retaining ring 25x1,65
77033022000
Superseded by 77033022100
|
$1.59 | ||
|
Unavailable |
|||
|
#21
NEEDLE BEAR. K20X24X13
0405202413
|
$10.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
NEDDLE BEAR. K24X28X11,9 DIV.
0405242812
|
$6.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
NEEDLE BEAR. K 22X26X13 TN
0405222613
|
$8.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BALL BEARING TM-SC05C20C4 NTN
54833025000
|
$63.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BALL BEARING 6203 JR2 C3
0625062035
|
$14.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
LOCK RING DIN0471-25X1,64SD
52033096000
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SPROCKET 13T
50033029013
Superseded by 79233029013
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SPROCKET 14T
50033029014
Superseded by 79233029014
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
FRONT SPROCKET 15-T
50033029015
|
$26.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
STOP DISC 25,2X32X1,5
59033030000
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
STOP DISC 17,2X30X1
56033030000
|
$3.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
Wear bushing, sprocket 11 mm
54833032011
Superseded by 63533030011
|
$10.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
SHAFT SEAL RING 32X45X7 BSLNBR
0760324565
Superseded by 0760324571
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
O-RING 25,00X2,00 NBR 70
0770248022
Superseded by 0770250020
|
$2.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
SHIM 20X32X1
59033080000
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
Stop disk
50333043000
Superseded by 79333043000
|
$2.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
