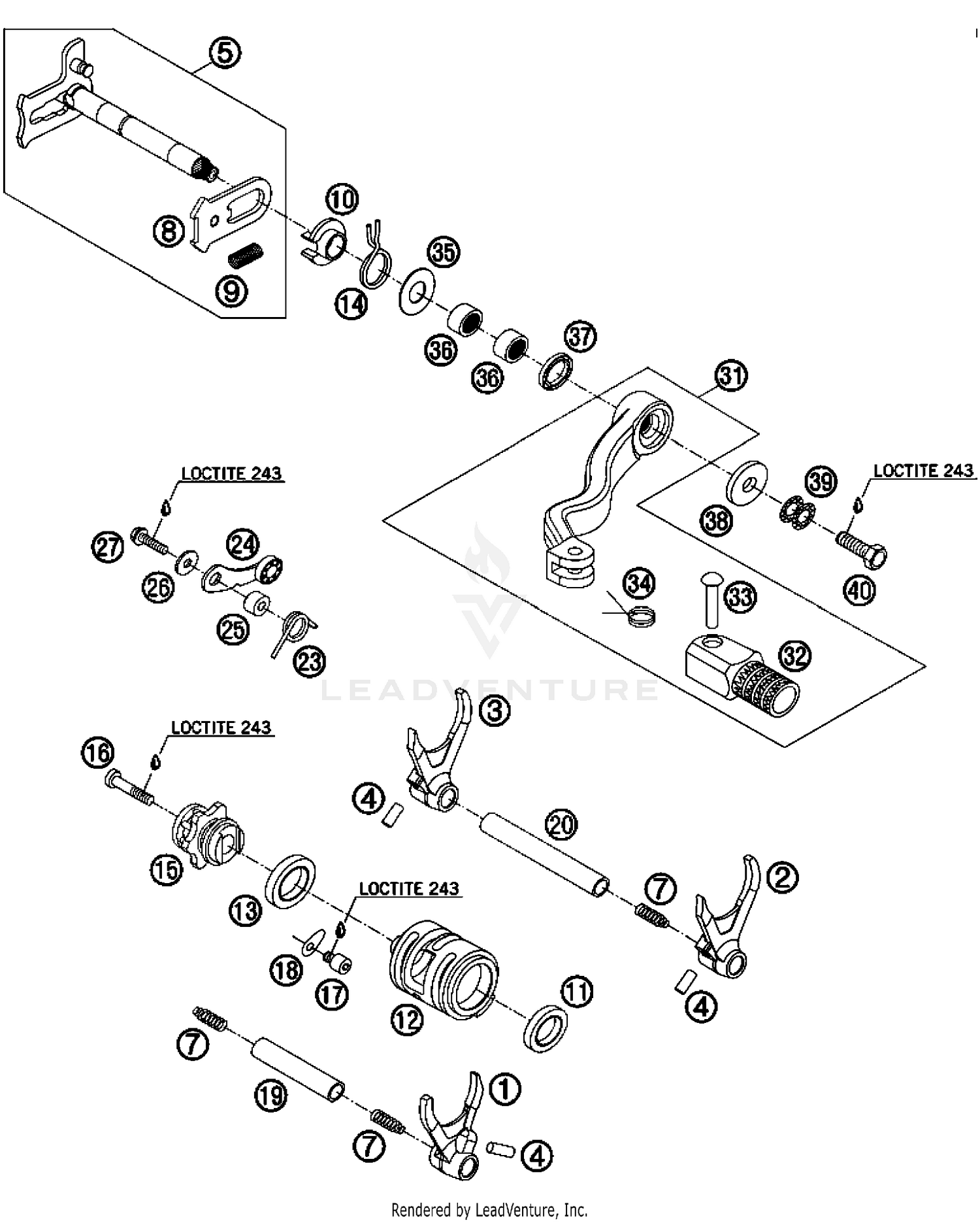

2008 KTM XC 300 Shifting Mechanism OEM Parts Diagram
Accessory
+
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFTING FORK 4TH/5TH GEAR 03
54834001000
|
$76.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SHIFTING FORK 2ND GEAR 03
54834002000
|
$74.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SHIFTING FORK 1ST/3RD GEAR 03
54834003000
|
$76.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NEEDLE ROLLER DIN5402 6X14,8
0402061480
|
$3.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Shift shaft cmpl.
54834005044
Superseded by 50534005044
|
$53.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PRESSURE SPRING 0,9MM
58038023200
|
$3.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SLIDING PLATE
54634008044
Superseded by 61234008044
|
$9.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
TENSIONING SPRING 0,8MM
56534013100
|
$0.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPRING GUIDE
54634020000
|
$6.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BALL BEARING 6903 C4
0625069034
|
$20.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SHIFT ROLLER 03
54834012000
|
$117.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BALL BEARING 61805 C3
0625068050
Superseded by 0625618050
|
$43.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
RETURN SPRING 03
54834014000
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SHIFT DRUM LOCATING CPL.
54834015000
Superseded by 54834015133
|
$45.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
AH SCREW DIN6912 M 6X30
0984060302
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
AH SCREW DIN0912-M 6X 8
0912060083
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
RETAINING PLATE
54634049000
|
$3.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SHIFT. RAIL MAIN SHAFT 250/300
54834019000
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SHIFT. RAIL C. SHAFT 250/300
54834020000
|
$12.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
LOCKING LEVER SPRING 03
54834023000
|
$2.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
LOCATING LEVER CPL. 08
50334024144
|
$13.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SLEEVE FOR LOCKING LEVER
54634052300
|
$2.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
WASHER DIN7349-5X15X2
0349000050
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
HH collar screw M5x20 TX30
0015050203
Superseded by 0025050206
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
SHIFT LEVER CPL. 250/300 05
54834031000
|
$91.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
STEP PLATE FOR SHIFT LEVER 250
54634131000
|
$31.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
BOLT 6X25 FOR SHIFT LEVER
54634031050
|
$7.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SHIFTING LEVER SPRING 250
54634032100
|
$2.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
STOP DISK 14X30X1
54634050000
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
needle sleeve HK 1412 14x20x12
54632095000
|
$6.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
radial shaft seal 14x24x6 B
0760142460
|
$8.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
STEEL WASHER 6,4X17X3
50232050001
|
$4.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
PAIR OF WASHERS M 6 NORDLOCK
50233041000
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPECIAL SCREW M6X16 WS=8 10.9
0933060165
Superseded by 59009062016
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
