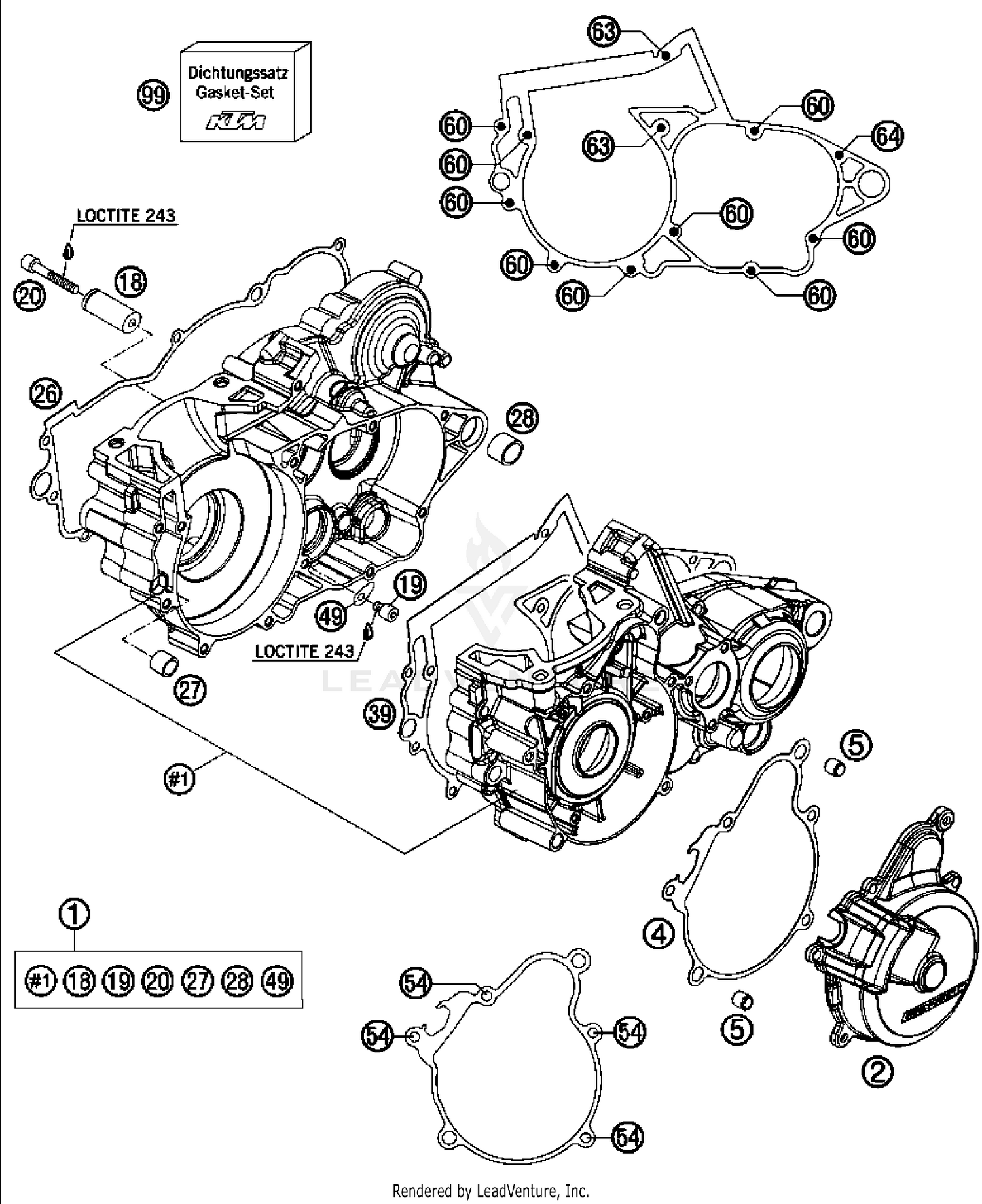

2008 KTM XC 300 Engine Case OEM Parts Diagram
Accessory
+
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE CPL. 250/300 2012
55130000144
Superseded by 55130000344
|
$841.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
IGNITION COVER
55130102000
Superseded by 5513010200025
|
$93.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GASKET
55130040000
Superseded by 55130040100
|
$14.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
DOWEL 9,8 X7X10
49030090000
Superseded by 49030090100
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BUSHING PIN 2000
59033018000
|
$12.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
AH SCREW DIN0912-M 6X 8
0912060083
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
AH SCREW DIN0912-M 6X40 A2
0912060404
|
$1.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CLUTCH COVER GASKET INSIDE
54830024000
Superseded by 54830024100
|
$26.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
DOWEL BUSHING 13,8X11X12
54630027000
|
$6.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
Dowel, 21x12
54830027000
Superseded by 54830027100
|
$4.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
ENGINE CASE GASKET 2003
54830039000
|
$15.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
RETAINING PLATE
54634049000
|
$3.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#54
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#60
HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#63
HH COLLAR SCREW M 6X55 WS=8
0015060553
|
$1.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#64
HH collar screw M6x60 TX30
0015060603
Superseded by 0025060606
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
GASKET SET 250/300 08
55130099000
Superseded by 55130099001
|
$220.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
