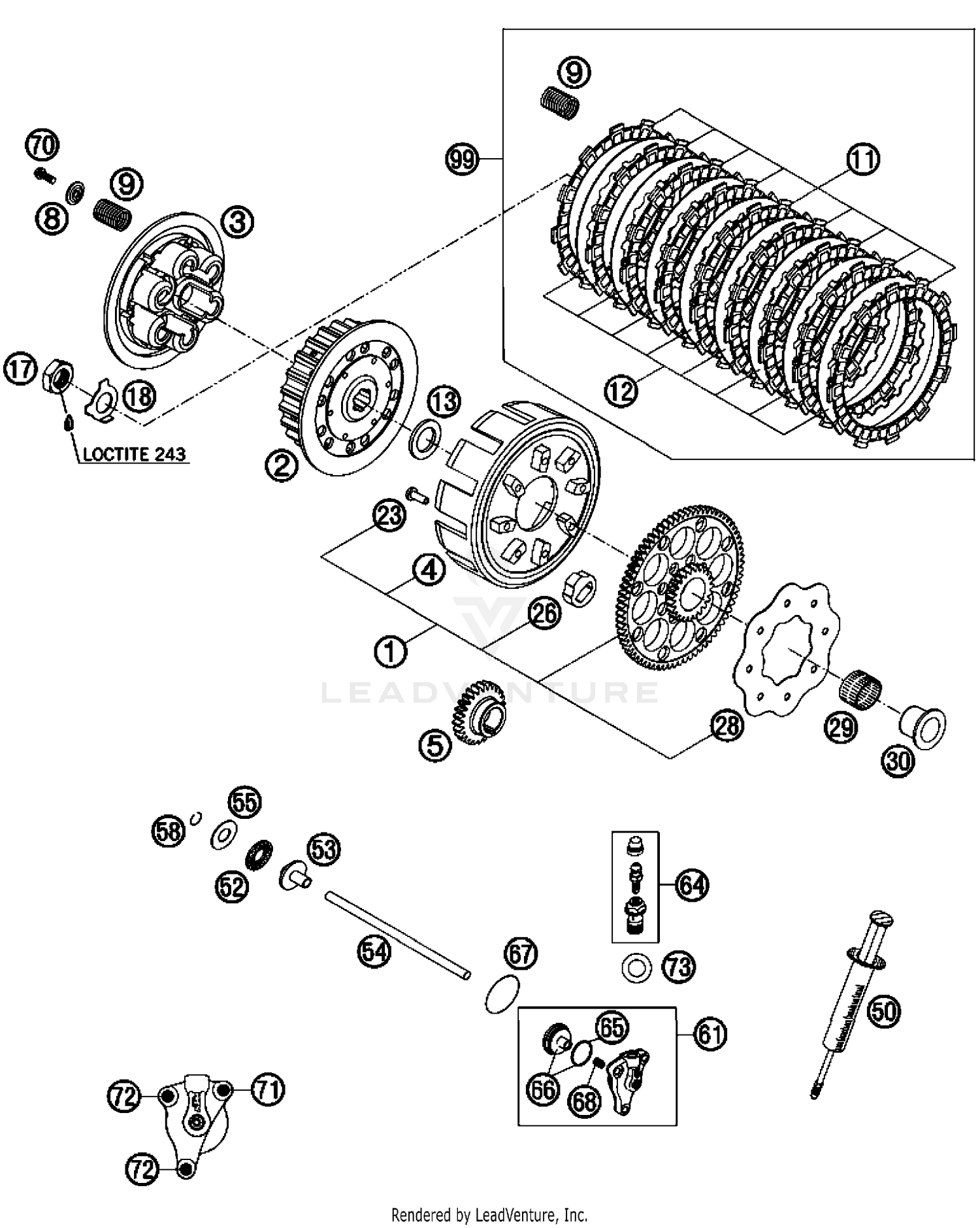

2008 KTM XC 300 Clutch OEM Parts Diagram
Accessory
+
Air & Fuel
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OUTER CLUTCH HUB 72-T CPL. 03
54832001072
|
$610.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
INNER CLUTCH HUB 546/548 2003
54832002000
|
$126.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PRESSURE CAP
54632003000
Superseded by 54632003100
|
$75.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
OUTER CLUTCH HUB LOOSE 2003
54832001000
|
$337.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PRIMARY GEAR 26T 2003
54832000026
|
$85.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPRING RETAINER 6,2 X 20 X 3,2
58132081000
|
$2.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CLUTCH SPRING 2,5X41,9 8,75W
54832080000
|
$6.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
LINING DISC FCC 04
54832011000
|
$24.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
STEEL DISC
54832012100
|
$10.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SUPPORTWASHER 22,2X35X3 HARDE.
57532013000
|
$22.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
|
$7.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
LOCK WASHER
56532018000
|
$5.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CLUTCH RIVET DIN7338- 6X15
0733060150
|
$7.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
DAMPING ELEMENT
58132026000
|
$6.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
RETAINING PLATE
58132028000
|
$7.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
|
$23.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
INNER RING WITH COLLAR
50332070000
|
$49.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$53.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
AXIAL NEEDLE BEARING AXK 1226
54637097200
|
$10.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53
PRESSURE PIECE CPL.
50332054051
Superseded by 50332154051
|
$24.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#54
PUSH ROD 250 2003
54832054000
|
$11.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#55
AXIAL WASHER AS1226 12X26X1
54637098200
|
$5.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#58
CIRCLIP DIN7993-RW12
0993012000
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#61
OUTPUT CYLINDER CPL. 06
54832061044
|
$129.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#64
BLEEDER SCREW CPL. 05
54813020000
Superseded by 62513020000
|
$27.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#65
O-RING
54832067000
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#66
PISTON CPL.
54832066000
|
$68.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#67
O-RING 30,00X1,50 NBR 70
0770300015
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#68
PRESSURE SPRING
54832069000
|
$11.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#70
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#71
HH collar screw M6x35 TX30
0015060353
Superseded by 0025060356
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#72
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#73
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
CLUTCH KIT 250/300 '04-'12
54832011010
|
$261.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
