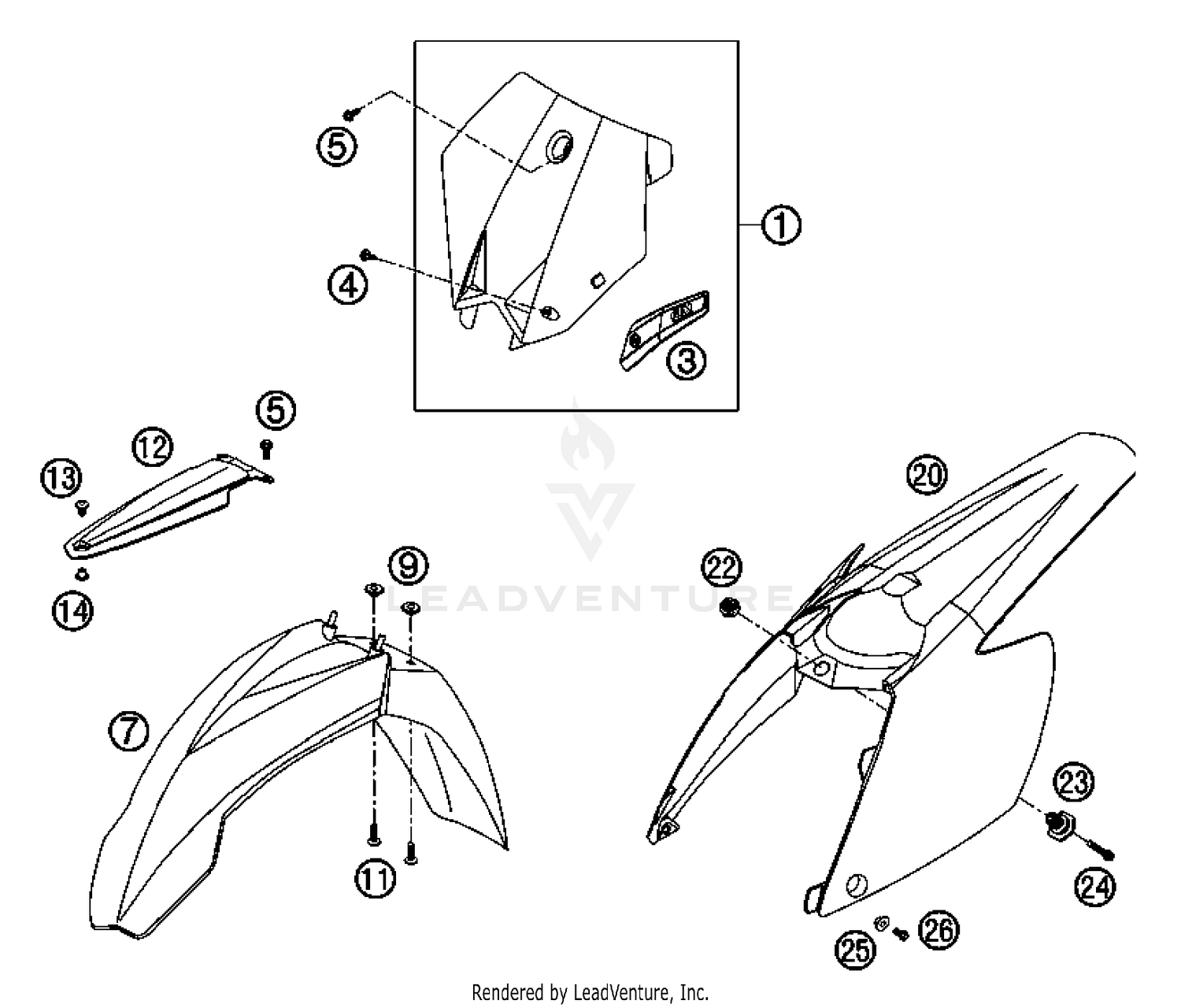

2006 KTM XC 300 Mask, Fenders OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 START NUMBER PLATE ORANGE 03 5480800701004	$27.53
Available: Ships in 7-12 days. Add to View Price
#3 BRAKE HOSE GUIDE 54808019000 Superseded by 54808019100	$7.98
Available: Ships in 7-12 days. Add to View Price
#4 SCREW F. PLASTIC K60X20AL SW6 0017060204 Superseded by 0017060206	$2.70
Available: Ships in 7-12 days. Add to View Price
#5 HH collar screw M6x15 TX30 0014060153 Superseded by 0024060156	$2.08
Available: Ships in 7-12 days. Add to View Price
#7 FENDER FRONT WIDE ORANGE 03 5030801030004	$28.73
Available: Ships in 7-12 days. Add to View Price
#9 SPACER BUSHING 03 54808020000	$3.73
Available: Ships in 7-12 days. Add to View Price
#11 HH COLLAR SCREW M 6X20 WS=8 0014060203	$1.89
Available: Ships in 7-12 days. Add to View Price
#12 FENDER BRACE BLACK '99 50308009100	$11.40
Available: Ships in 7-12 days. Add to View Price
#13 SCREW FEND.BRACE M8X9 WS=17 50308009050	$4.99
Available: Ships in 7-12 days. Add to View Price
#14 NUT FENDER BRACE M8 WS=17 50308009051	$4.17
Available: Ships in 7-12 days. Add to View Price
#20 REAR PART EXC ORANGE 04 5480801300004 Superseded by 5480801310004	$73.03
Available: Ships in 7-12 days. Add to View Price
#22 COLLAR NUT M12X1/WS17 H=5MM 50314057050	$6.58
Available: Ships in 7-12 days. Add to View Price
#23 BUSHING FOR SEAT FASTENING 03 54807048000	$10.57
Available: Ships in 7-12 days. Add to View Price
#24 HH collar screw M6x25 TX30 0015060253 Superseded by 0025060256	$2.22
Available: Ships in 7-12 days. Add to View Price
#25 BUSH 6X11X16X5 MM 50308052000 Superseded by 79608052000	$1.31
Available: Ships in 7-12 days. Add to View Price
#26 HH collar screw M6x16 TX30 0015060163 Superseded by 0025060166	$2.02
Available: Ships in 7-12 days. Add to View Price
