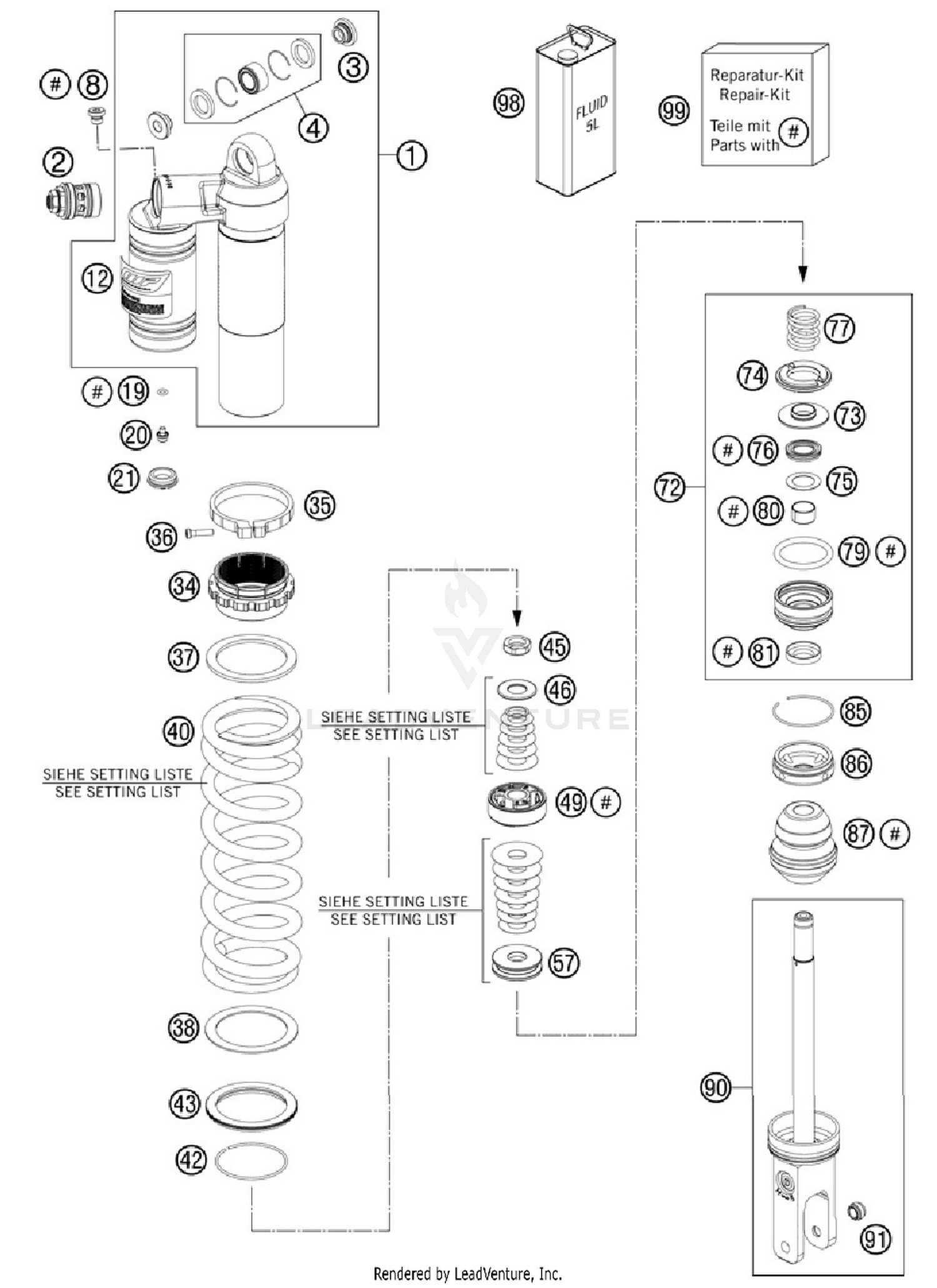

2012 KTM XC 300 Shock Absorber Disassembled OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MONOSHOCK UPPER PART CPL.
50180944S1
|
$400.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
DCC-COMPR.DAMP.CONTROL CPL. 11
50180213S14
|
$410.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Distance bush 10x15/18/24,5x10,5
46180010
|
$3.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$33.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HS cylinder-head screw R1/8 l8
50180095
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Sticker WP warning India 35x60
52000087
Superseded by 52000149
|
$9.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
O-ring 5,28x1,78 NBR70 black
46810893
|
$0.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$3.99 | ||
|
Unavailable |
|||
|
#21
Rubber cap do not open 22x5,5 NBR
46811208
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
Spring retainer M56x2x63,8x33 cpl.
50180938
Superseded by 50180938SA
|
$35.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
Clamp d64
50180937
|
$22.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
AH SCREW DIN0912-M 5X20
14460042
Superseded by 0912050203
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
Intermediate washer spring 64,45x78x3
50180965
|
$10.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
Intermediate washer spring 61,8x80x1,5
50180793
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPRING 260 48 N/MM ORANGE
91210081S
|
$150.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPRING 260 51N/MM D11,25 OR.
91210082S
|
$150.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPRING 260 54N/MM D11,5 OR.
91210083S
|
$150.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPRING 260 57N/MM D11,75 OR.
91210084S
|
$150.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
SPRING 260 60 N/MM ORANGE
91210089S
|
$150.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
Round-wire snap ring 58,5x2
50180273
|
$1.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
Spring retainer 61,5x79,1x7
50180824
|
$25.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
Piston rod nut 16x1
50180141
|
$10.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
Rebound disc 16x34x2 h0
50180836
|
$10.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
PISTON D50
50180786S
Superseded by 50180786E
|
$47.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#57
Rebound disc 16x43x12,5 h8
50180801
|
$35.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#57
Rebound disc 16x43x15 h12
50180961
|
$22.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#72
ADAPTER D50 H28 CPL.
50180603S3
|
$81.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#73
Spring retainer 18,6x43,7x2 rebound
50180800
|
$7.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#74
Rubber pad rebound 28,8x48x8
50180798
|
$3.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#75
Shim 29,75x19x0,4
50180604
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#76
Seal ring cpl. 18x30x5
50180605S
Superseded by 50180605ST
|
$21.95 | ||
|
Unavailable |
|||
|
#77
Spring (3,2) 30-30
50180780
|
$13.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#79
O-ring 41x5 NBR70
50180103
|
$0.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#80
Guide bushing 18x20x12
46180119
|
$5.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#81
Dirt scarper NOK 18mm black
50180606
|
$6.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#85
Round-wire snap ring 53x1,75
50180126
|
$0.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#86
Cover 50x6 h16
50180626
|
$45.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#87
Rubber pad 17x59x64
50180775
|
$21.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#90
MONOSHOCK BOTTOM PART CPL.
50180773SA1
|
$497.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#91
Bush M10x12/15/13x9,5
46811205
|
$6.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#98
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$197.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
REPAIR-KIT
R12018
|
$91.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
