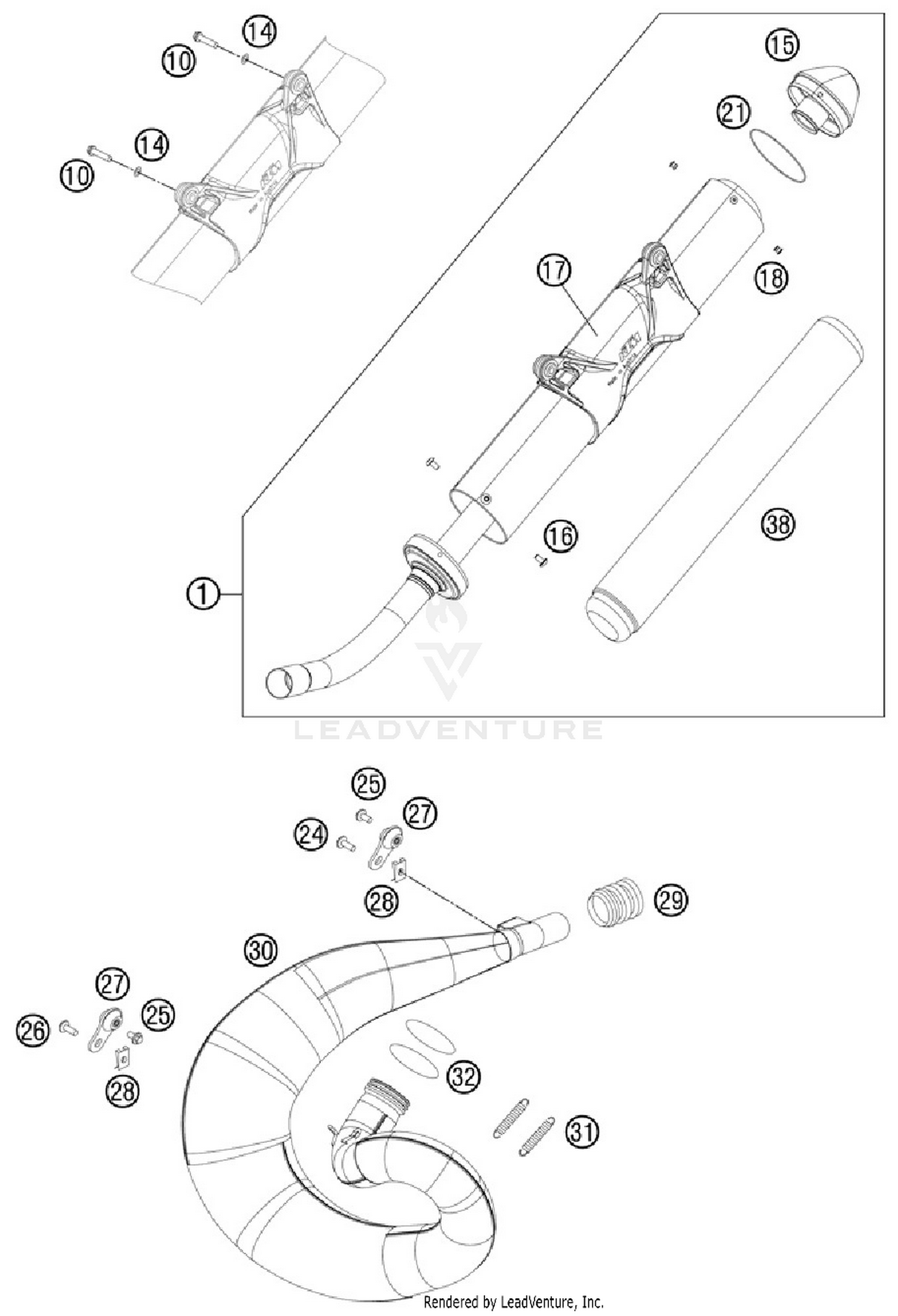

2012 KTM XC 300 Exhaust System OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 MAIN SILENCER 250-300 EXC 54805083200	$404.02
Available: Ships in 7-12 days. Add to View Price
#10 HH collar screw M6x30 TX30 0025060306	$2.08
In Stock: Ready to ship. Add to View Price
#14 spring washer DIN 137 B - 6 0137060003	$1.07
In Stock: Ready to ship. Add to View Price
#15 ENDCAP CPL. 54805083260	$84.13
In Stock: Ready to ship. Add to View Price
#16 SCREW TORX M5X10 05 58605083010	$1.89
Available: Ships in 7-12 days. Add to View Price
#17 SILENCER HOUS. CPL. W. HANGING 54805183085	$105.51
Available: Ships in 7-12 days. Add to View Price
#18 DUMMY RIVET 4,8X 8 NIRO 0011480800	$2.36
In Stock: Ready to ship. Add to View Price
#21 O-RING 74,00X1,50 FKM 75SH 0770740015	$3.21
In Stock: Ready to ship. Add to View Price
#24 HH collar screw M6x13 TX30 0024060136	$2.36
In Stock: Ready to ship. Add to View Price
#25 HH COLLAR SCREW M6X10 TX30 0024060106	$2.02
In Stock: Ready to ship. Add to View Price
#26 HH collar screw M6x15 TX30 0024060156	$2.08
Available: Ships in 7-12 days. Add to View Price
#27 SWINGELEMENT FOR EXHAUST PIPE 50305012000	$19.86
In Stock: Ready to ship. Add to View Price
#28 clip nut M6 54603048100	$3.92
In Stock: Ready to ship. Add to View Price
#29 SILICON SLEEVE D=29/31MM 50205057000	$32.82
Available: Ships in 7-12 days. Add to View Price
#30 EXHAUST MANIFOLD 54805107000	$536.96
Available: Ships in 7-12 days. Add to View Price
#31 Tension spring L=65ámm 50305016000 Superseded by 50305016200	$2.52
Available: Ships in 7-12 days. Add to View Price
#32 O-RING 44,00X3,00 VITON 0770440030	$3.92
In Stock: Ready to ship. Add to View Price
#38 ROCKWOOL 315G 54805078315	$59.39
Available: Ships in 7-12 days. Add to View Price
