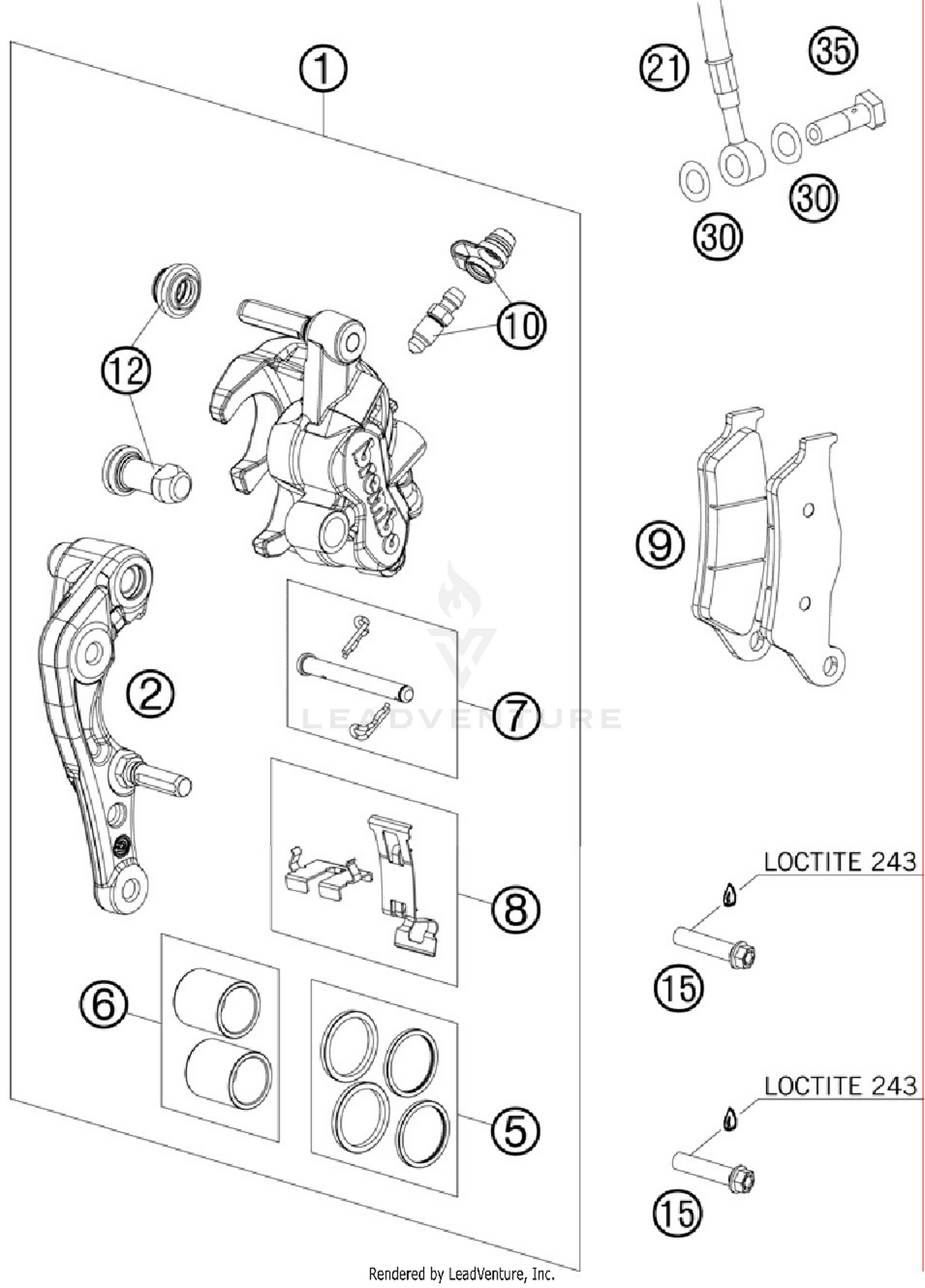

2012 KTM XC 300 Brake Caliper Front OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER NAT. WITHOUT PADS
7701301500101
|
$327.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BRAKE CALIPER SUPPORT FRONT 09
77013014000
|
$143.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
REP. KIT SEALS 24MM
77013021000
|
$22.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
REP. KIT PISTON 24MM
77013019000
|
$50.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT CPL. 09
77013017000
|
$25.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
RETAINING PLATE SET BREMBO
77013018000
|
$27.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BRAKE PADS TOYO B153
77013020000
|
$43.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BLEEDER SCREW WITH CAP
61013020100
|
$9.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CUP SET SHORT
54613218000
Superseded by 54613218100
|
$22.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH COLLAR SCREW M8X35 TX40
0025080356S
|
$2.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BRAKEHO. FRONT 1300MM 2000
59013011000
|
$114.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
sealing ring DIN 7603 10x14x1
0603100141
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
HOLLOW SCREW M10X1X19
50213025000
|
$6.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
