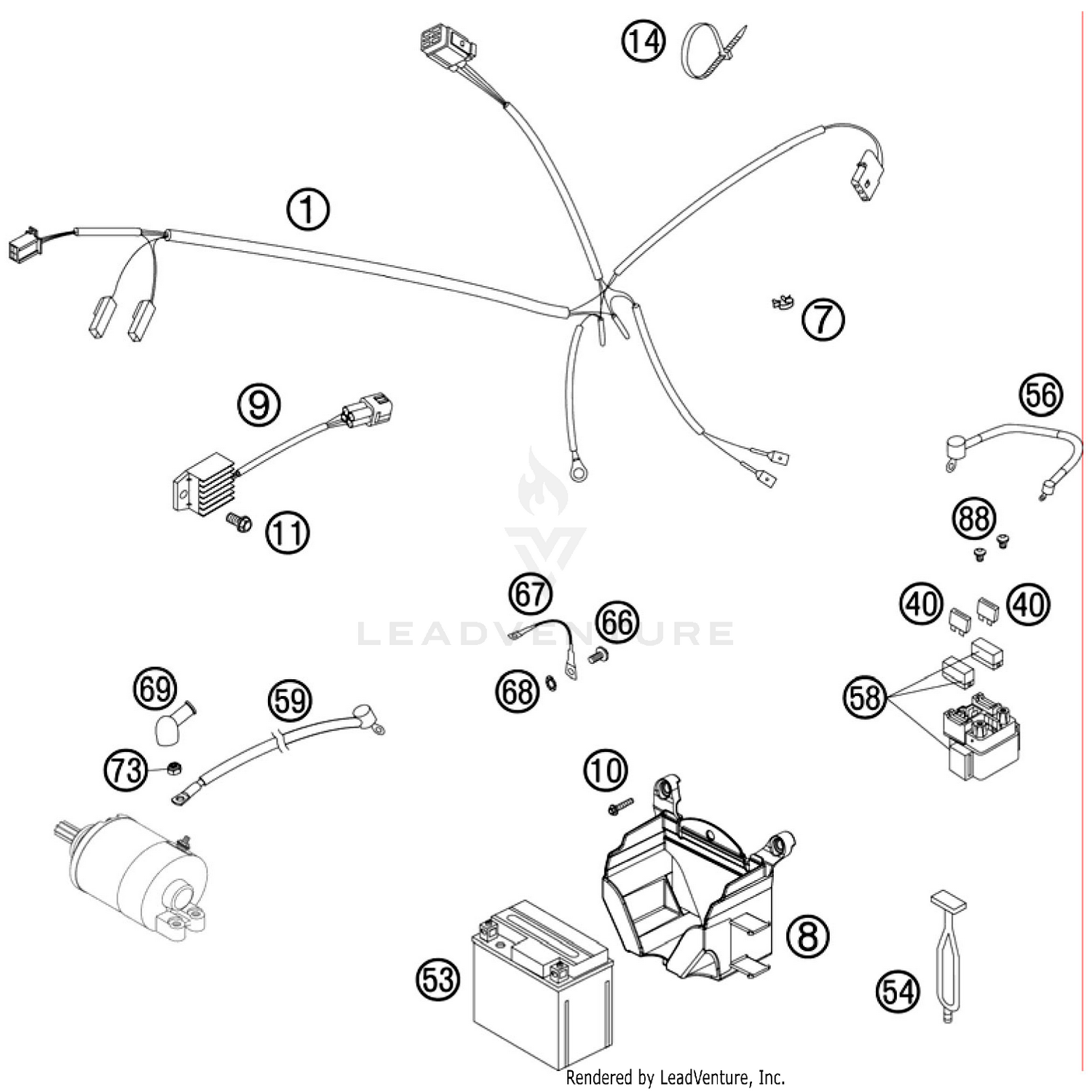

2010 KTM XC 300 Wiring Harness OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS RACING USA 05
59411075100
|
$66.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRING HOLDER 16MM
57013072100
|
$0.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BATTERY CASING
77311055000
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
VOLTAGE REGULATOR 04
80011034000
|
$93.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW FOR PLASTIC K60X20 SW6
0017060203
Superseded by 0017060205
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$0.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CABLE TIE 200/3,6MM BLACK
44011076200
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE TIE 300/4,8MM BLACK
44011076305
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
FUSE 10 A 2000
58011109110
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#53
battery 12V/24Wh
77311053000
Superseded by 79111053000
|
$161.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
RUBBER L=145MM
50303018000
|
$5.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
WIRING HARNESS BATTERY DUKE'99
58711086000
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#58
STARTER RELAY 12V '99
58211058000
|
$72.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
STARTERCABLE 1100MM 07
55111059000
|
$24.46 | ||
|
Available to order. Add to View Price |
|||
|
#66
EJOT SPIRAL SCREW SF M5X10-K
0009050103
Superseded by 0009050106
|
$1.18 | ||
|
Unavailable |
|||
|
#67
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#68
CONTACT WASHER M6 VSV-K6
58411098100
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#69
PROTECTION CAP F. STARTER ENG.
58440099000
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#73
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#88
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
