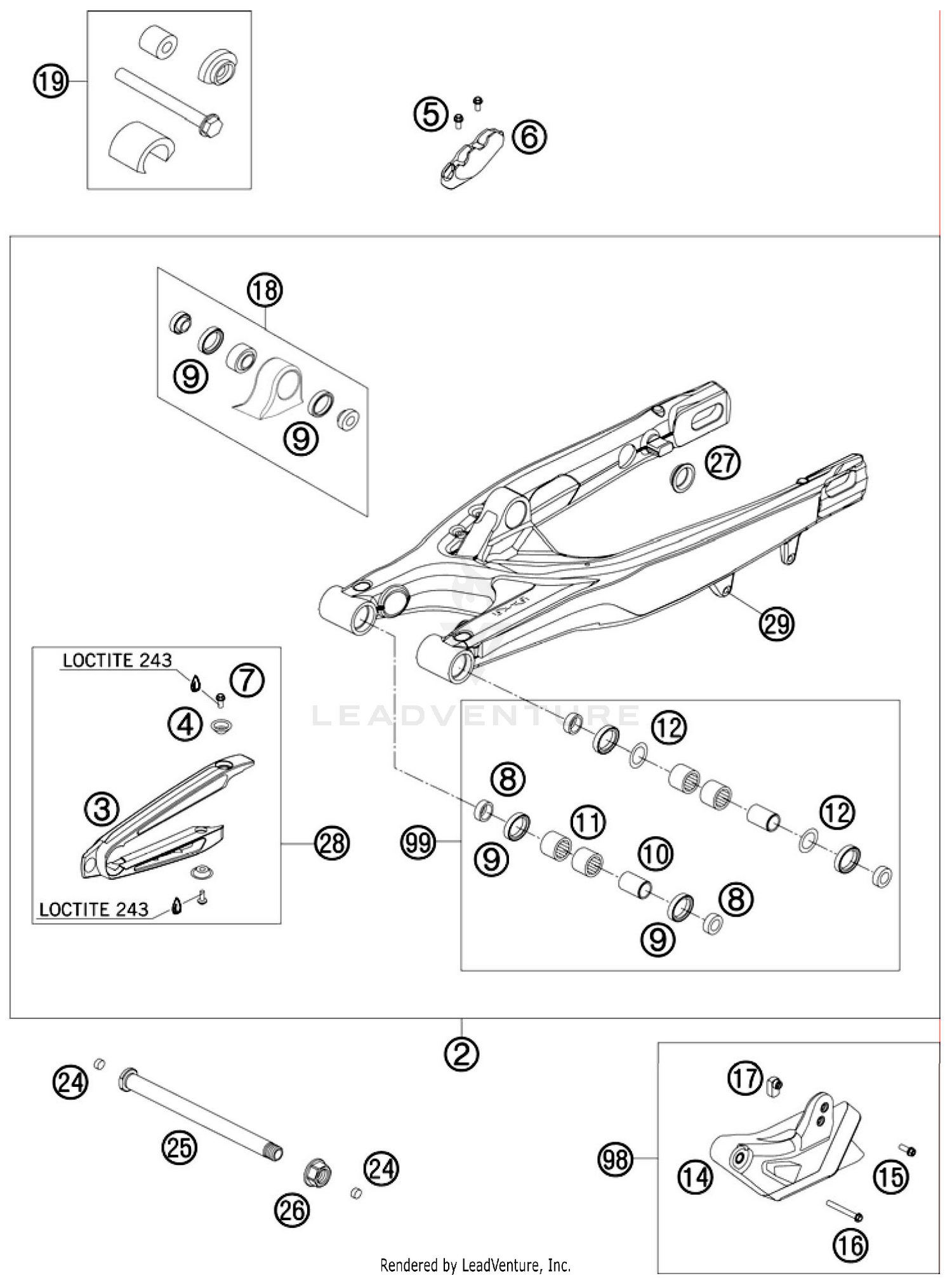

2010 KTM XC 300 Swing Arm OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
SWING ARM CPL. 2011
77304030044
Superseded by 77304030344
|
$755.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN SLIDING PROTECTION
77304066000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
Chain slider bushing
77304066050
Superseded by 77304066150
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
EJOT SPIRAL SCREW SF M5X10-K
0009050103
Superseded by 0009050106
|
$1.18 | ||
|
Unavailable |
|||
|
#6
BRAKE HOSE GUIDE LOWER 07
77313047000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BUCKET F. SHAFT SEAL RING 03
54804034000
|
$4.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
radial shaft seal 25x32x7
0760253270
|
$6.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING SLEEVE F. SWING ARM 03
54804032000
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE BEARING HK 2216
58033097000
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOP DISK 22,2X31,7X1
54603036000
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CHAIN GUIDE CPL.
78004070000
Superseded by 78004070100
|
$42.29 | ||
|
Unavailable |
|||
|
#15
SPECIAL SCREW M6X19 WS=8 10.9
59009062019
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HH COLLAR SCREW M6X45 TX30
0025060456
|
$1.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
INSERTION NUT F. CHAIN GUIDE
77304070030
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIVOT BEARING+BUSH. PDS '11
50304090044
Superseded by 50304090144
|
$64.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
TOOL BEARING MOUNTING PDS
50329000044
|
$537.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG SFL13
55009086000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWINGARM BOLT M16X1,5 07
77304037000
|
$53.21 | ||
|
Available to order. Add to View Price |
|||
|
#26
SELF LOCK.NUT M16X1,5 WS=19 03
54804038000
|
$1.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLOSING COVER ROUND 03
58404041100
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN GUARD CPL. 07-11
77304066010
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#29
PRESS IN NUT M6 STEEL ZINC
54603055051
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#98
Chain guide kit
77304070310
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
SWINGARM REPAIR KIT 05-15
54804230210
|
$80.69 | ||
|
Available to order. Add to View Price |
|||
