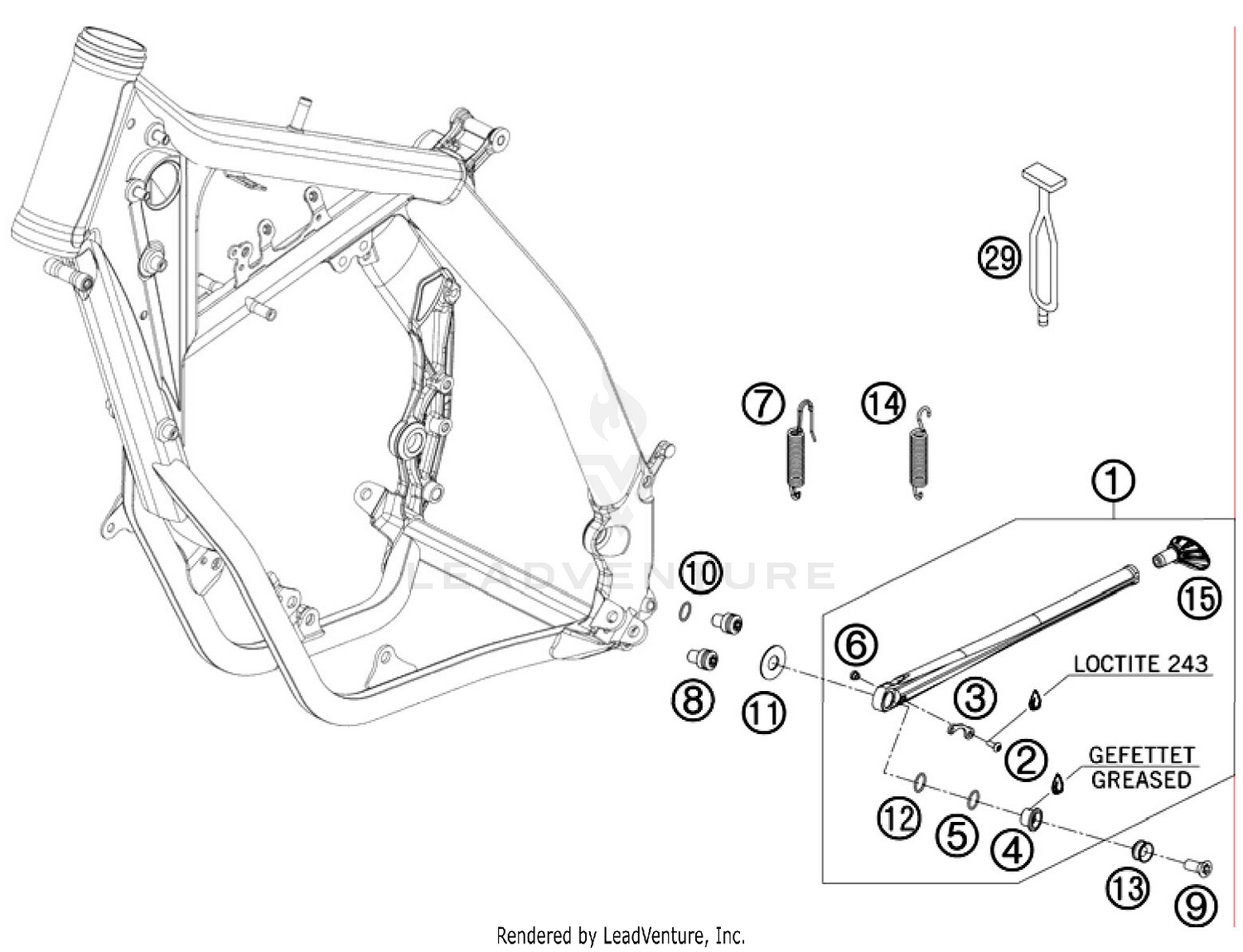

2010 KTM XC 300 Side / Center Stand OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 SIDE STAND CPL. 08 78003023044	$123.32
Available to order. Add to View Price
#2 SCREW M5X14 TORX 25 07 58605083014	$2.02
In Stock: Ready to ship. Add to View Price
#3 SPRING BRACKET F. SIDE ST. 08 78003023090	$5.22
In Stock: Ready to ship. Add to View Price
#4 SIDE STAND BUSHING EXC USA 08 78003023080	$22.88
In Stock: Ready to ship. Add to View Price
#5 o-ring 18.00x2.00 NBR70 0770180020	$1.50
In Stock: Ready to ship. Add to View Price
#6 Spacing tube spring retaining bracket 78003023070 Superseded by 78003123070	$0.98
In Stock: Ready to ship. Add to View Price
#7 SIDE STAND SPRING EYE MOVEABLE 81203024000	$17.70
In Stock: Ready to ship. Add to View Price
#8 SIDE STAND STOP SCREW M10X12 78003023182	$3.68
In Stock: Ready to ship. Add to View Price
#9 COUNTER-SUNK SCREW ISA45 M8X26 0019080266S	$2.02
In Stock: Ready to ship. Add to View Price
#9 HH collar screw M8x30 0025080306	$2.85
In Stock: Ready to ship. Add to View Price
#10 O-RING 12,00X2,00 NBR 70 0770120020	$1.71
In Stock: Ready to ship. Add to View Price
#11 WASHER F. SIDE STAND 12,2X29,5 78003023083	$2.97
In Stock: Ready to ship. Add to View Price
#12 O-RING 12,5X1,5 NBR 0770125015	$1.18
Unavailable
#13 SIDE STAND BUSHING EXC-EU 08 78003023081	$11.52
In Stock: Ready to ship. Add to View Price
#14 SIDE STAND SPRING 08 78003024100	$8.91
In Stock: Ready to ship. Add to View Price
#15 STAND BASE 78003023055 Superseded by 78003023155	$6.64
In Stock: Ready to ship. Add to View Price
#29 RUBBER L=145MM 50303018000	$5.93
In Stock: Ready to ship. Add to View Price
