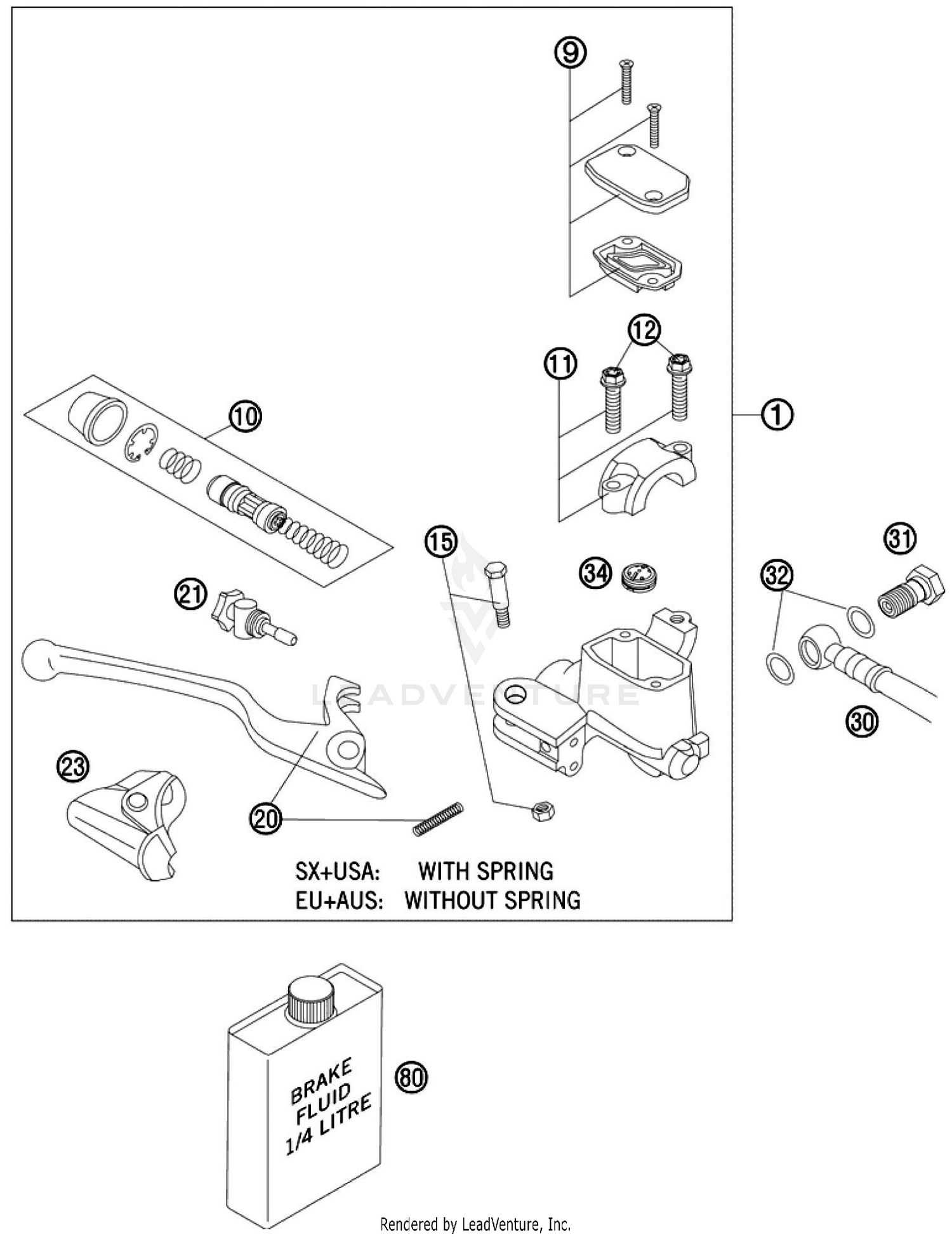

2010 KTM XC 300 Hand Brake Cylinder OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HAND BRAKE CYLINDER CPL. SX 09
77013001044
|
$249.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HANDBRAKE CYL.COVER CPL.NATURE
50313003000
|
$23.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
REP.SET PISTON D=9MM 2009
54813008300
|
$62.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLAMP CPL. NATURE
50313005000
|
$26.01 | ||
|
Available to order. Add to View Price |
|||
|
#12
HH collar screw M6x25 TX30
0025060256
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
LEVER SCREW CPL. 2001
50313006100
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
HAND BRAKE LEVER + SPRING 2009
54813002200
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
ADJUSTING SCREW CPL. SX 2009
54813007300
|
$29.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTION CAP HAND BRAKE CYL.
50313004000
|
$11.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BRAKEHO. FRONT 1300MM 2000
59013011000
|
$114.51 | ||
|
Available to order. Add to View Price |
|||
|
#31
banjo bolt M10x1x19 black
54813020200
Superseded by 54813020100
|
$9.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
sealing ring DIN 7603 10x14x1
0603100141
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
VALVE
54802051000
|
$18.42 | ||
|
Available to order. Add to View Price |
|||
|
#80
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$11.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
