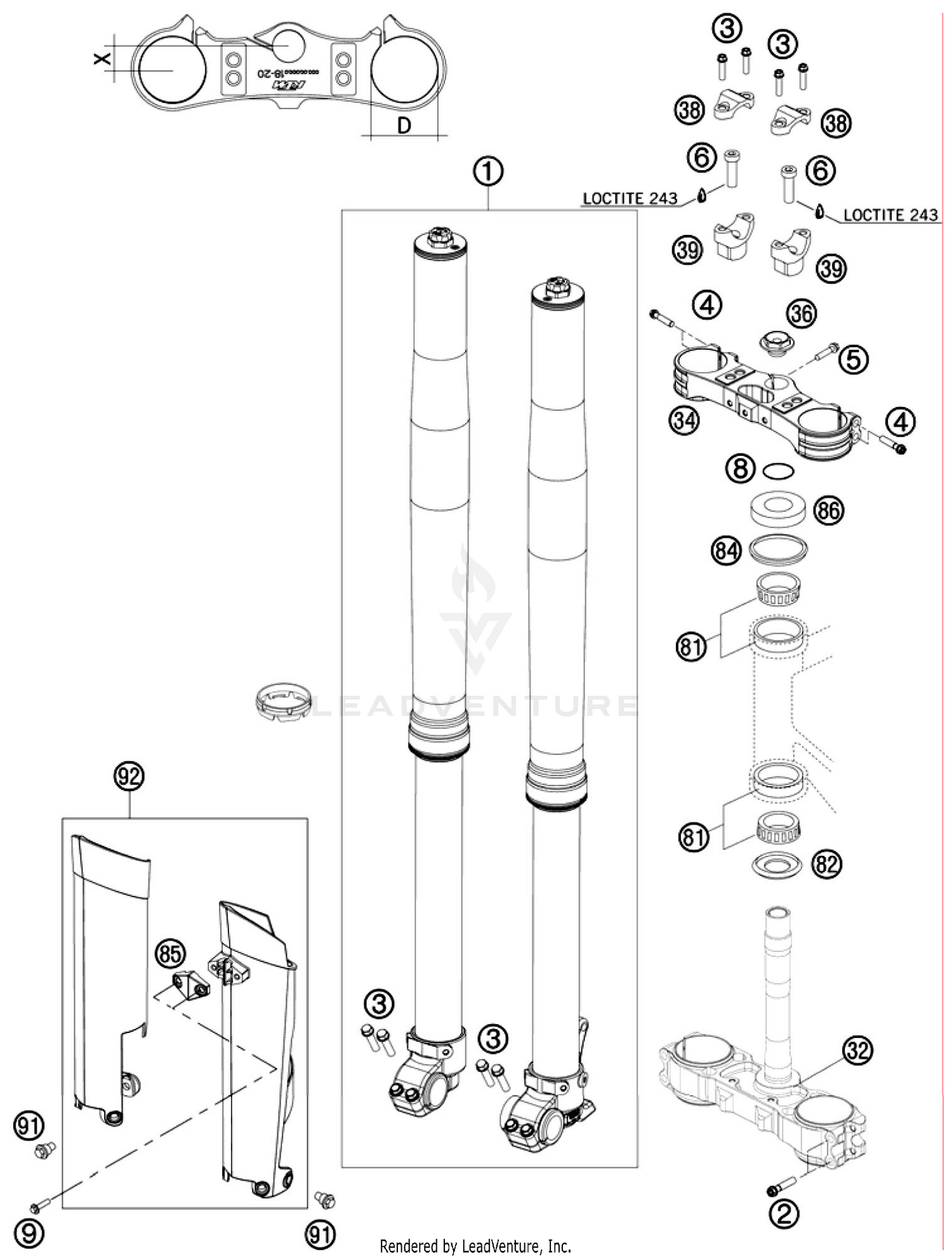

2010 KTM XC 300 Front Fork, Triple Clamp OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK KTM 250/300 XC
14187J2801
|
|||
|
Unavailable |
|||
|
#2
HH collar screw M8x50 TX40
0025080506
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HH COLLAR SCREW M8X40 TX40
0025080406
|
$3.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HH COLLAR SCREW M8X25 TX40
0025080256S
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M10X35 ISA45
0912100356
Superseded by 0032100356S
|
$3.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING 25X3,55 NBR70 05
0770025035
|
$0.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW F. PLASTIC K60X20AL SW6
0017060204
Superseded by 0017060206
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOTT.FORK PLATE VMT. X=22MM BL
7720103202230
|
$354.44 | ||
|
Available to order. Add to View Price |
|||
|
#34
TRIPLE CLAMP TOP X=22 BLACK
7720103402230
Superseded by 7770103402230
|
$214.16 | ||
|
Available to order. Add to View Price |
|||
|
#36
STEER.HEAD SCREW M20X1,5 WS=27
54801036000
|
$11.52 | ||
|
Available to order. Add to View Price |
|||
|
#38
HANDLEBAR CLAMP 28MM
59401038000
Superseded by 77201038000
|
$24.94 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLEB.SUPP. D=28MM H=32MM 05
59401039032
|
$36.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HANDLEB.SUPP. D=28MM H=37MM 05
59401039037
|
$34.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
HANDLEB.SUPP. D=28MM H=42MM 05
59401039042
|
$36.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#81
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$49.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#82
O-RING SUPPORT W. SEALING LIP
54601084100
Superseded by 77701084000
|
$19.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#84
STEARING HEAD GASKET TOP
54601184000
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#85
CLAMP F.SPEED.CABLE D=6MM 08
7800108500030
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#86
STEERING HEAD COVER
54201086000
|
$8.39 | ||
|
Unavailable |
|||
|
#91
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92
FORK PROTECT. L/S+R/S BLACK
7800109410030
Superseded by 7800109420030
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
