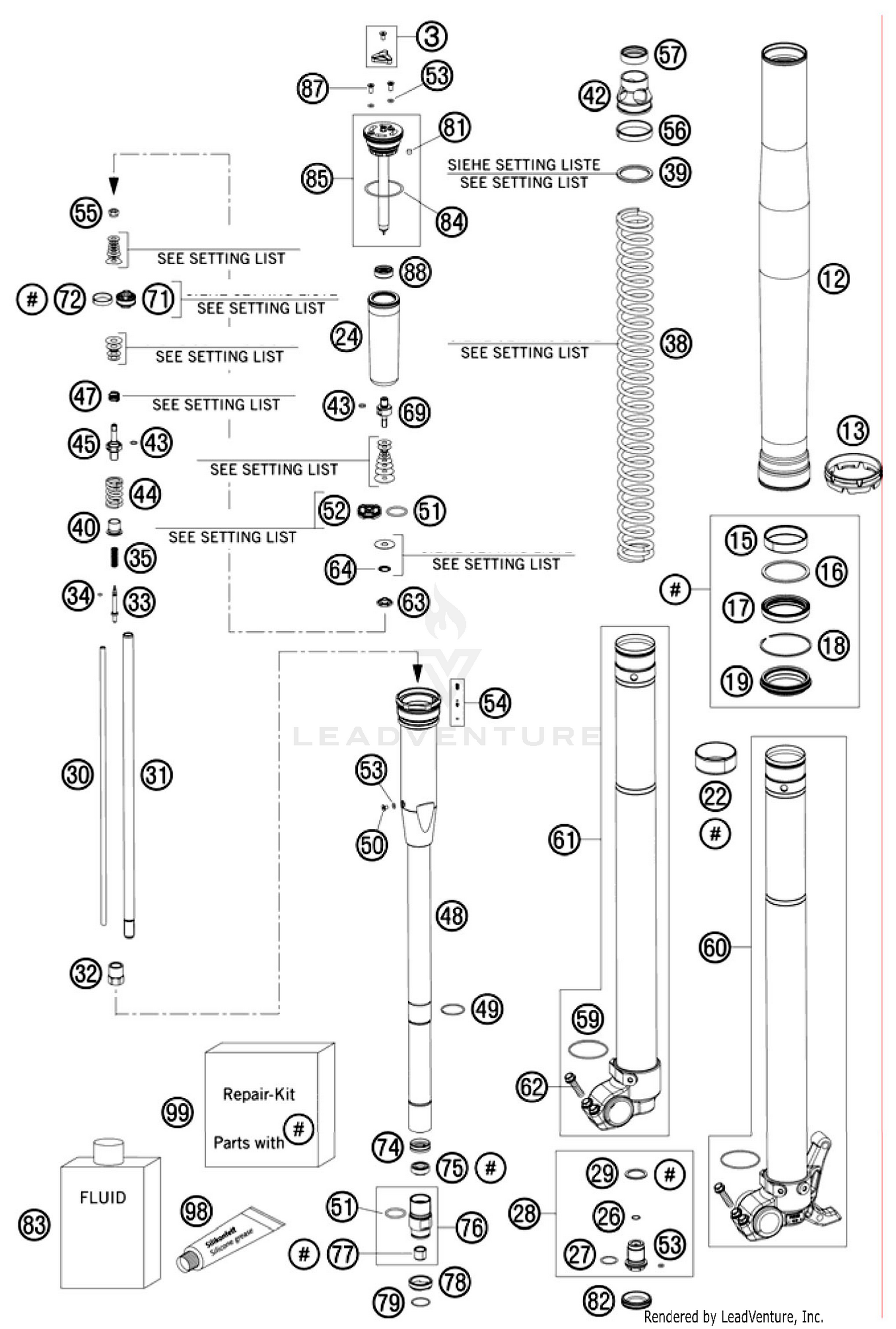

2010 KTM XC 300 Front Fork, Disassembled OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
Adjuster compression cpl.
48600811S
Superseded by 48600811ST
|
$3.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Fork outer tube 49,13x577 dt54 db60 natu
48600736
|
$448.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
Fork protection ring 62,1mm
48600698
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
Guide bushing 48x52x12
48600429
Superseded by 48601009
|
$11.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Supportwasher 50x57,6x1,5
48600013
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
Shaft seal SKF 48x58x11,4 black
48600347
Superseded by S604800001000C1
|
$12.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Snap ring SB58x1,5 acc drawing
48600070
|
$1.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Dirtscarper SKF 48mm black
48600816
Superseded by S604800000000C1
|
$11.29 | ||
|
Unavailable |
|||
|
#22
Guide bushing 47x49x20
48600428
Superseded by 48601008
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
Membrane 11,2x37x112
48600281
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-ring 9,5x1,5 NBR70 yellow
48600301
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-ring 17x2 70 Sh NBR black
46810811
|
$0.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SCREW BUSH M20X1 L=33 CPL.
48600280S
|
$60.39 | ||
|
Unavailable |
|||
|
#29
Copper disc 20,5x26x1
48600275
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#30
Adjustment tube 6x371
48600269
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
Piston rod 12x405
48600464
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Lock nut M12x1 h23 WAF17
48600459
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#33
Needle 4,5x43,6 rebound
48600887
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-ring 2x1,5 NBR70
48600298
|
$0.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
Spring (5,4) 4-23 rebound
48600444
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,4 N/MM SET D=5,1MM
91410027S
|
$145.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,6 N/MM SET D=5,1MM
91410028S
|
$145.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,8N/MM SET D=5,25 MM
91410029S
Superseded by 91410020S
|
$145.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 5,0 N/MM
91410030S
|
$145.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,0 N/MM SET
91410059S
|
$145.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,2 N/MM SET D=5,0MM
91410060S
|
$145.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
Washer 35x43x2,5 plastic
48600456
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#39
Preload bush 35x43x3,5
48600457
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#39
Washer 35x43x1,5 plastic
48600458
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#40
Spring retainer 12,3x19x1,25 rebound
48600525
|
$1.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
Spring support ring 27,08x42x41
48600520
|
$66.81 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-ring 6x1,2 NBR70
48600299
|
$0.10 | ||
|
Available to order. Add to View Price |
|||
|
#44
Spring (13,9) 37-32 rebound
48600578
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#45
Tap 6x46 rebound
48600576
|
$9.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Spring (11,4) 0,4-8 valve
48600382
|
$1.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
Membrane holder WP
48600519S3
Superseded by 48600519E3
|
$317.38 | ||
|
Available to order. Add to View Price |
|||
|
#49
Round-wire snap ring 28,5x1,5
48600512
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#50
HS countersunk head screw M4x6
48600542
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#51
O-ring 21x2 NBR70
46811499
|
$0.21 | ||
|
Available to order. Add to View Price |
|||
|
#52
Piston 6x27,8x9 compression
48600047
|
$9.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
O-ring 4x1,5 NBR70
50180222
|
$0.21 | ||
|
Available to order. Add to View Price |
|||
|
#54
PIN VALVE SET
48600518S
|
|||
|
Unavailable |
|||
|
#55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#56
Guiding ring 39x44x8
48600744
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#57
Spring guide ring 27,08x32x9,5
48600577
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#59
Washer 32x42x2,5 plastic
48600113
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#60
AXLE CLAMP LEFT + TUBE CPL.
48600863SA
|
$1,170.35 | ||
|
Available to order. Add to View Price |
|||
|
#61
AXLE CLAMP RIGHT + TUBE CPL.
48600864SA
|
$546.68 | ||
|
Available to order. Add to View Price |
|||
|
#62
HH collar screw M8x25
0025080256
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
Nut valve M6x0,5 h6,5 WAF17
48600885
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#64
Spring (8,5) l6,5 valve
48600202
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#69
Tap 6x38 compression
48600509
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#71
Piston 6,07x22,7x13
48600575
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#72
Piston ring 21x23x5
48600455
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
RING D=23,45X2,65
48600296
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#75
Seal ring Freudenberg 12mm 85Sh violett
48600829
|
$5.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#76
SCREW SLEEVE M24,5X1 CPL
48600760S
|
$35.64 | ||
|
Available to order. Add to View Price |
|||
|
#77
Guide bushing 12x14x10
48600430
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
Check valve locking R4
48600709
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
Round-wire snap ring 24x2
48600446
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#81
Silicon plug 60Sh
15080017
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
Rubber cap 26,4x11
48600692
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#83
FORK OIL SAE4 5L
48600765S1
Superseded by 48601166S1
|
$176.64 | ||
|
Available to order. Add to View Price |
|||
|
#84
O-ring 43x2 NBR70 siliconized yellow
40140024
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#85
SCREW CAP L=125
48600516S1
Superseded by 48600516E1
|
$107.62 | ||
|
Available to order. Add to View Price |
|||
|
#87
Cross flat head screw M4x10
48600526
|
$1.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#88
Clamping ring bladder 11,31x22x7,5
48600514
|
$11.03 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#99
Fork service kit 48mm
R14018
Superseded by RP10046T
|
$99.95 | ||
|
Available to order. Add to View Price |
|||
