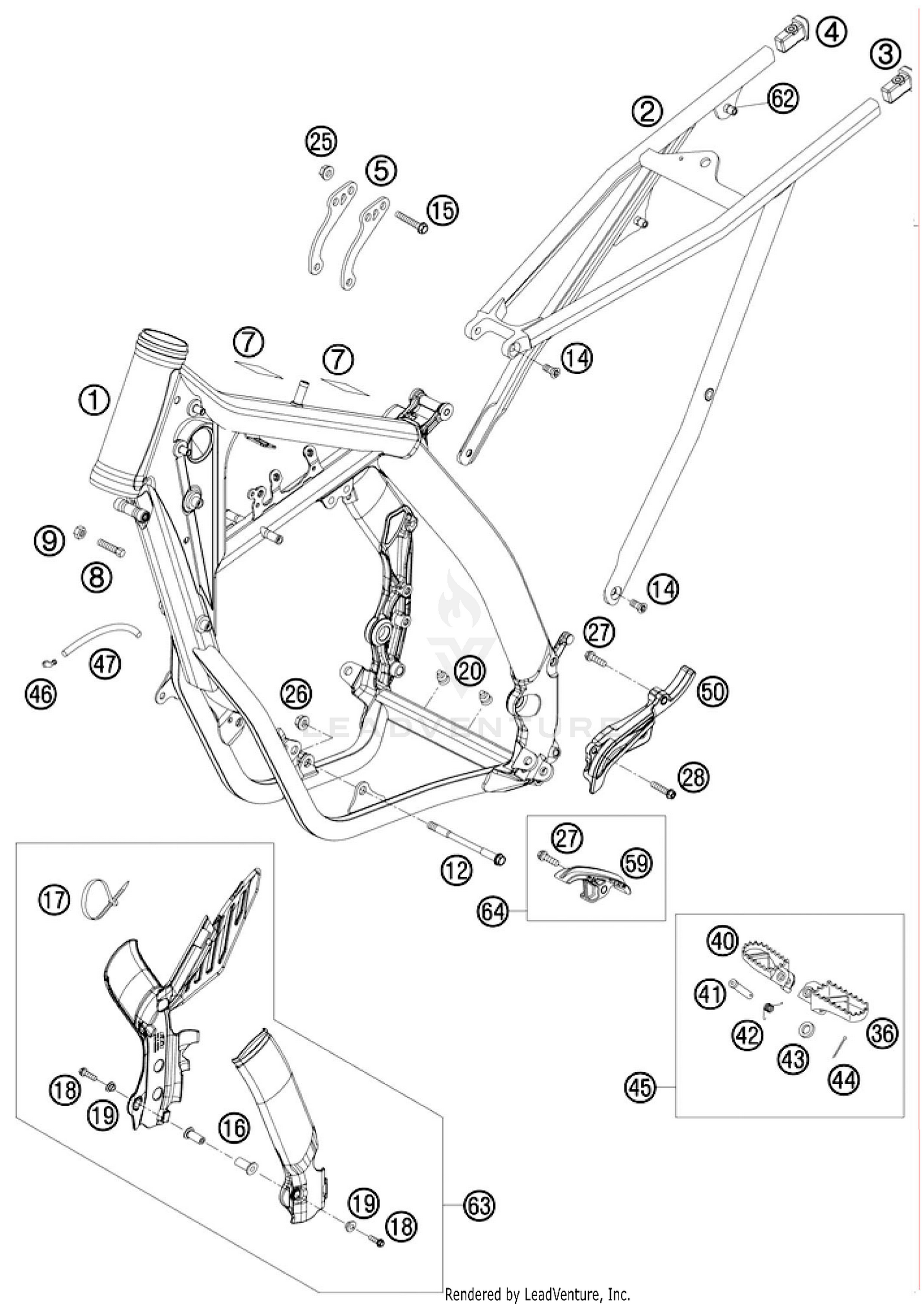

2010 KTM XC 300 Frame OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME 250/300 ''CB08'' 08
5480340110030
|
$1,328.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB FRAME SX ''Q7'' 07
77303002000
|
$379.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
REINFORCING B. 250 SX 07
54803413000
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPECIAL SCREW M8X26 WS=10
59001037000
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
HEXAGON NUT DIN0934-M 8
0934080003
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
engine brac.scr. M10x105 WS13
54603013000
|
$12.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH COLLAR SCREW M8X44 WS13
56530079000
Superseded by 56530079000S
|
$2.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
|
$4.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CABLE TIE 300/4,8MM BLACK
44011076305
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BUSH F. FRAME PROTECTION 03
54803092060
|
$3.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLASTIC CAP SFL10
54403135000
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
SELF LOCKING NUT M8 10.9
54310086200
|
$2.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
HH collar screw M8x30
0025080306
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
HH collar screw M6x30 TX30
0025060306
|
$2.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
FOOTREST L/S 08
78003040050
|
$43.52 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST R/S 08
78003041050
|
$43.52 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$12.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$0.20 | ||
|
Available to order. Add to View Price |
|||
|
#45
FOOTREST L/S + R/S CPL. 09
78003040033
|
$115.88 | ||
|
Available to order. Add to View Price |
|||
|
#46
ANGLE PIECE '97
50303089000
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#47
PVC-HOSE 7X10 PER METER
55007016001
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPROCKET COVER 250 SX 07
54803096000
|
$10.92 | ||
|
Available to order. Add to View Price |
|||
|
#59
CHAIN SLIDING PIECE BELOW 07
77303053000
|
$8.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
BLIND RIVET NUT EM6-60LF/HX
77303139000
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#63
PLASTIC FRAME PROTECTION SET
77303094100
|
$28.99 | ||
|
Unavailable |
|||
|
#64
CHAIN SLIDING KIT BELOW CPL07
77303053010
|
$10.72 | ||
|
Available to order. Add to View Price |
|||
