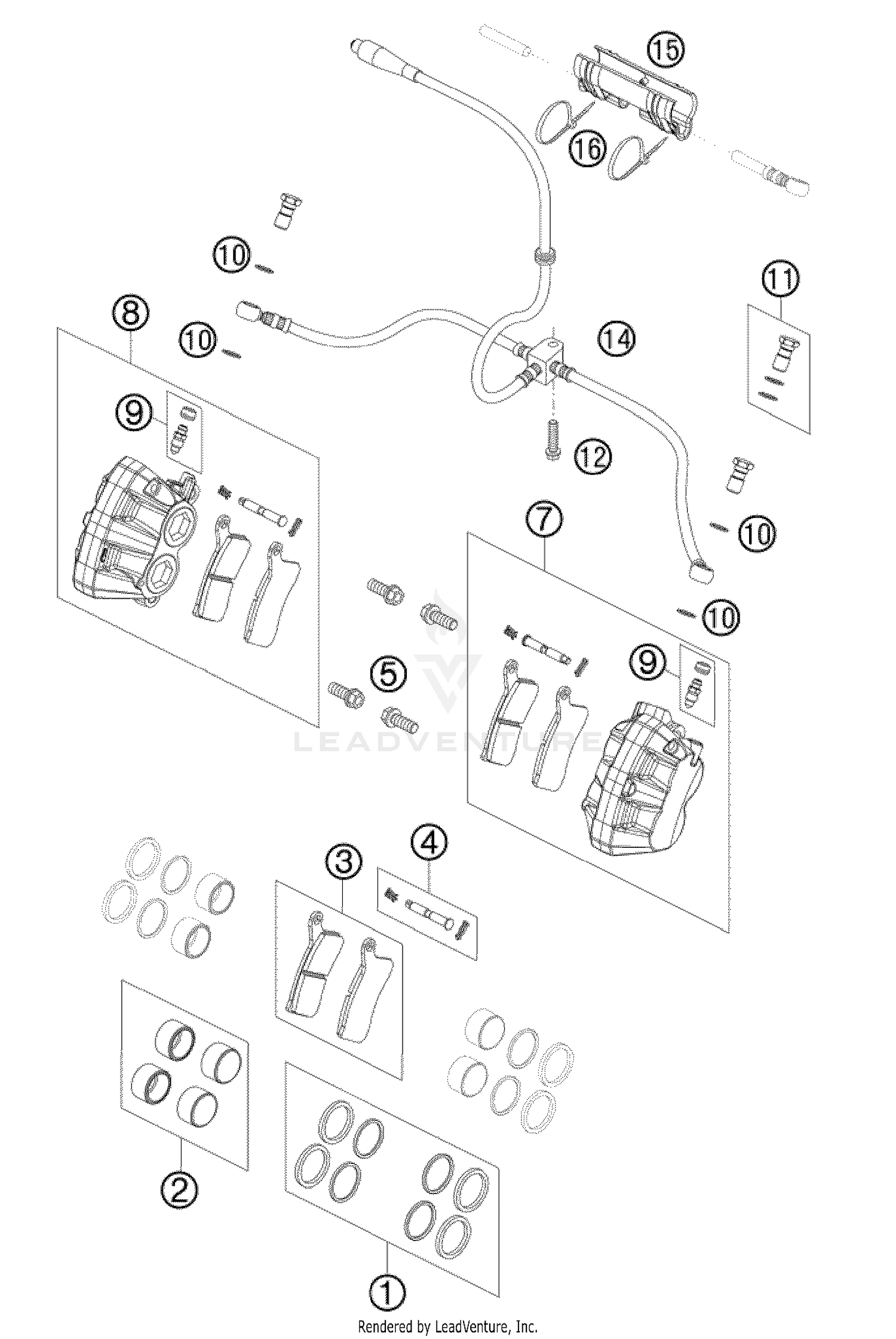

2009 KTM SX ATV 450 Brake Caliper Front OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEALING RING 8X MAGURA 26MM
83013021000
|
$215.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON KIT 4X MAGURA 26MM
83013019000
|
$85.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRAKE PAD SET FRONT ORGANIC
83013030100
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SET - BOLT 1X, PIN 2X
83013017000
|
$38.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
HH collar screw M8x20
0025080206
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE CALIPER FRONT L/S
83013015100
|
$731.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE CALIPER FRONT R/S
83013016100
|
$757.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLEEDER SCREW WITH CAP
54732064000
|
$21.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
COPPER GASKET
59413013050
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLLOW SCREW + COPPER GASKET
59032062000
|
$24.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
HH collar screw M6x25 TX30
0025060256
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BRAKE PIPE FRONT 790 2X610MM
83013012000
|
$292.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRAKE LINE GUIDE
83013012050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE TIE 300/4,8MM BLACK
44011076305
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
