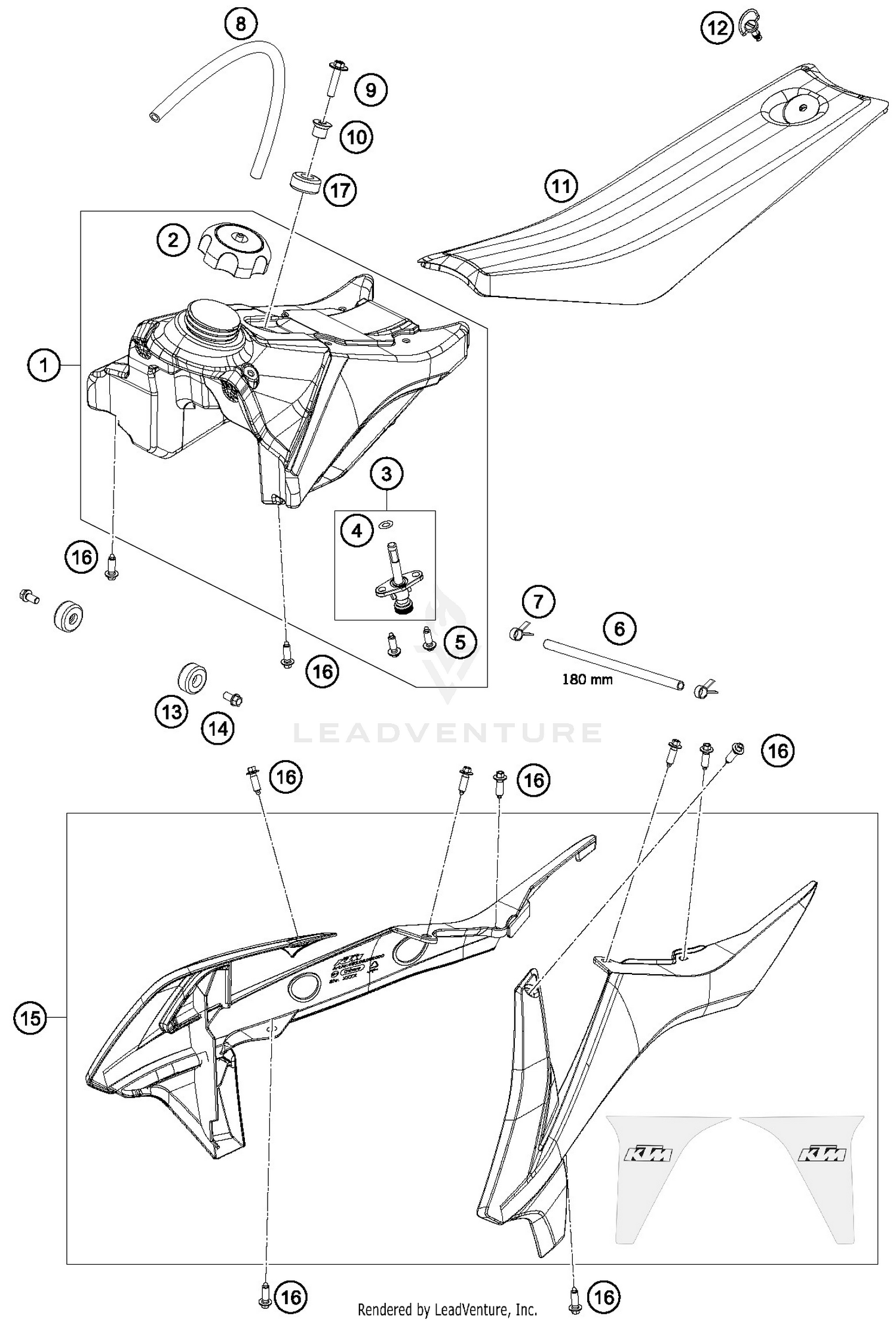

2016 KTM SX 50 MINI Tank, Seat, Covers OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 FUEL TANK CPL. MINI 2016 4530701313330	$217.76
Available: Ships in 7-12 days. Add to View Price
#2 FILLER CAP CPL. SMALL 49007008044	$23.53
Available: Ships in 7-12 days. Add to View Price
#3 FUEL COCK CPL. 58507003200	$24.94
Available: Ships in 7-12 days. Add to View Price
#4 O-RING 1,78x10,82x14,38 2-013 0770020130	$1.18
Available: Ships in 7-12 days. Add to View Price
#5 SCREW FOR PLASTIC K60X20 SW6 0017060205	$1.07
Available: Ships in 7-12 days. Add to View Price
#6 FUEL HOSE VITON 6X1,5 PER/M 58307016001	$36.49
Available: Ships in 7-12 days. Add to View Price
#7 YDNAC-CLAMP FUEL HOSE (8MM) 45031005000	$0.60
Available: Ships in 7-12 days. Add to View Price
#8 PVC-HOSE 5,6X10X270MM 78007000270	$4.64
Available: Ships in 7-12 days. Add to View Price
#9 COLLAR SCREW M6X27 TX 0024060273	$2.15
Available: Ships in 7-12 days. Add to View Price
#10 TANK BUSHING 07 77307026000	$3.34
Available: Ships in 7-12 days. Add to View Price
#11 SEAT 45307040000	$88.38
Available: Ships in 7-12 days. Add to View Price
#12 QUICK RELEASE CPL. 50 SXR '97 45007040051	$20.19
Available: Ships in 7-12 days. Add to View Price
#13 TANK ROLLER 12X26X12 '98 50307014000	$10.95
Available: Ships in 7-12 days. Add to View Price
#14 HH collar screw M6x12 TX30 0025060126	$2.02
Available: Ships in 7-12 days. Add to View Price
#15 SPOILERSET ORANGE 50SX/MINI 16 45308054000EBA	$83.99
Available: Ships in 7-12 days. Add to View Price
#16 SCREW F. PLASTIC K60X20AL SW6 0017060206	$2.70
Available: Ships in 7-12 days. Add to View Price
#17 TANK ROLLER 12X26X12 '98 50307014000	$10.95
Unavailable
