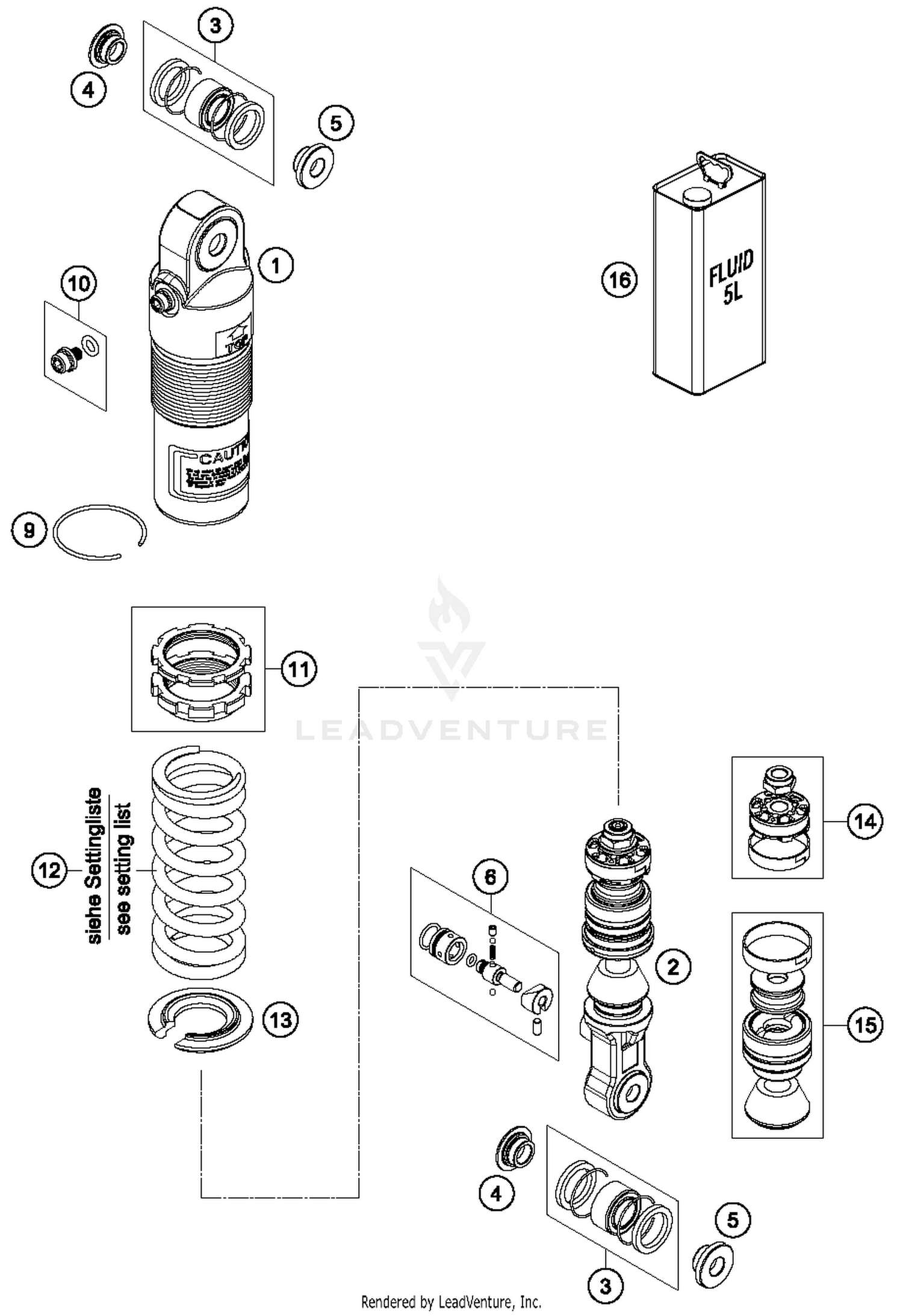

2016 KTM SX 50 MINI Shock Absorber Disassembled OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 MONOSHOCK UPPER PART CPL.WHITE 36120784S1 Superseded by 36120861S1	$218.48
Available: Ships in 7-12 days. Add to View Price
#2 MONOSHOCK LOW.PART CPL.SX MINI 36120781S15	$496.90
Available: Ships in 7-12 days. Add to View Price
#3 Ball joint bearing kit top 12mm R12012 Superseded by R12012T	$33.54
Available: Ships in 7-12 days. Add to View Price
#4 Distance bush 10x15/18/24,5x8,5 46180008	$3.72
Available: Ships in 7-12 days. Add to View Price
#5 Distance bush 10x15/18/24,5x10,5 46180010	$3.72
Available: Ships in 7-12 days. Add to View Price
#6 TAP ADJ. REBOUND 46180522S1	$48.59
Available: Ships in 7-12 days. Add to View Price
#9 Round-wire snap ring 38x1,5 40540015	$2.15
Available: Ships in 7-12 days. Add to View Price
#10 PLUG SCREW M5X6 CPL. 36120151S	$11.52
Available: Ships in 7-12 days. Add to View Price
#11 ADJUSTING NUT CPL. 36120418S	$34.02
Available: Ships in 7-12 days. Add to View Price
#12 SPRING 65N/MM 65-120 120MM ORA 93010184S	$150.91
Available: Ships in 7-12 days. Add to View Price
#12 SPRING 75N/MM 75-120 120MM ORA 93010185S	$150.91
Available: Ships in 7-12 days. Add to View Price
#12 SPRING 85N/MM 85-120 120MM ORA 93010186S	$150.91
Available: Ships in 7-12 days. Add to View Price
#13 Spring retainer 27x53x3 36120461	$45.69
Available: Ships in 7-12 days. Add to View Price
#14 MONOSHOCK PISTON SET SX MINI R310	$45.29
Available: Ships in 7-12 days. Add to View Price
#15 MONOSHOCK REP. KIT SX MINI R311	$158.59
Available: Ships in 7-12 days. Add to View Price
#16 SHOCK ABSORBER FLUID 5 LT 50180751S1	$197.43
Available: Ships in 7-12 days. Add to View Price
