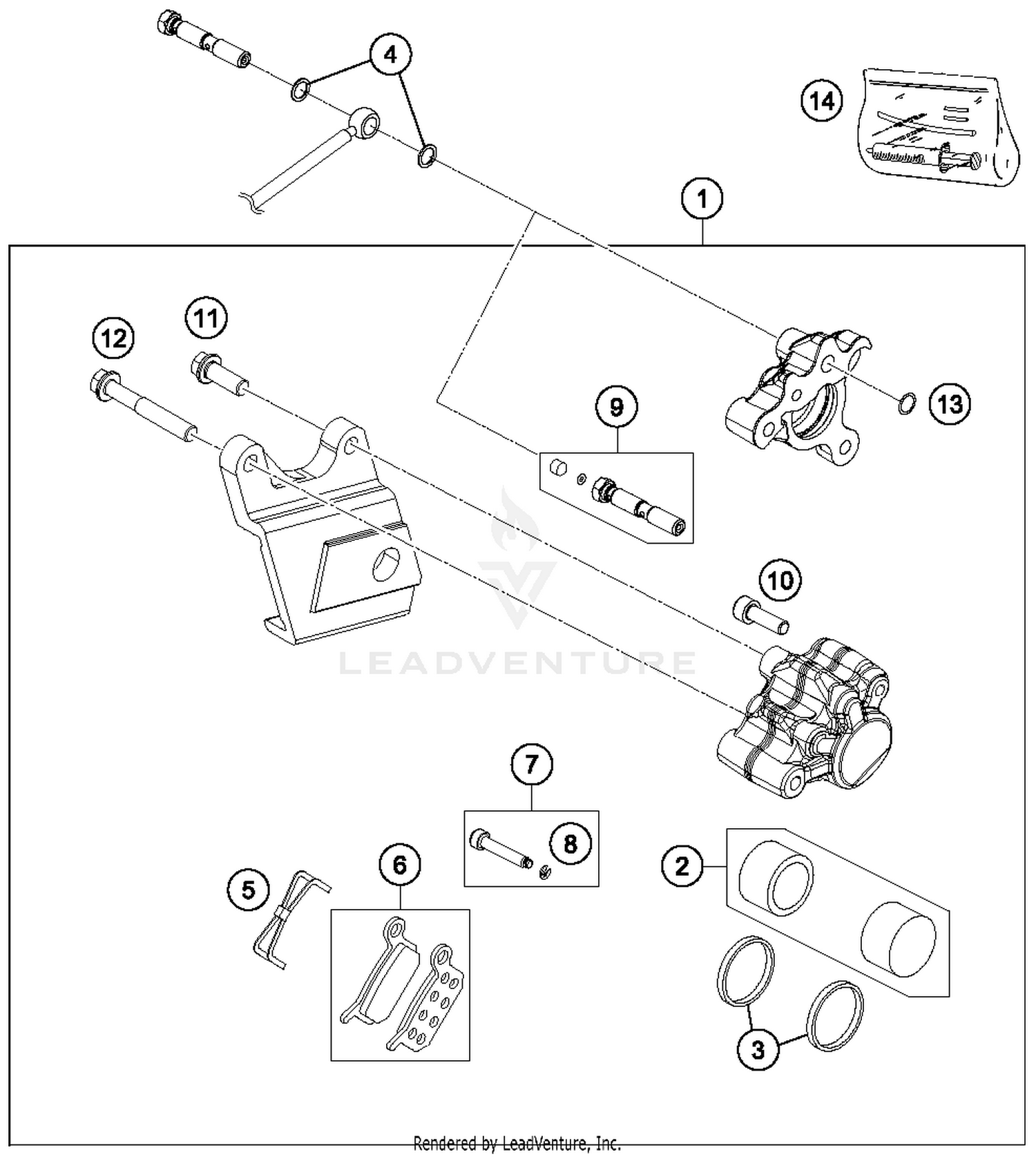

2016 KTM SX 50 MINI Brake Caliper Rear OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRAKE CALIPER REAR
45213080000
|
$236.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
REPAIR KIT BRAKEPISTON
45113019100
|
$12.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
O-RING 22X2X2 EPDM
0770022020
|
$8.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
O-RING 6,00X1,00 FORMULA
0770060019
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
RETAINING SPRING 50 LC
45113018000
|
$15.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRAKE PAD SET 50 LC 2002
45113030000
|
$34.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
AH SCREW + CIRCLIP 50/65 04
45113225000
|
$13.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
TAB WASHER DIN6799 RS2,5
0799025000
|
$0.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HOLLOW SCREW CPL.
46113225000
|
$25.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
AH SCREW DIN0912-M 5X16
0912050163
|
$0.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HH collar screw M6x40 TX30
0025060406
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
O-RING 8,00X1,00 FORMULA
0770080019
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BLEEDER INJECTION-SET 50-65
45119050000
|
$34.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
