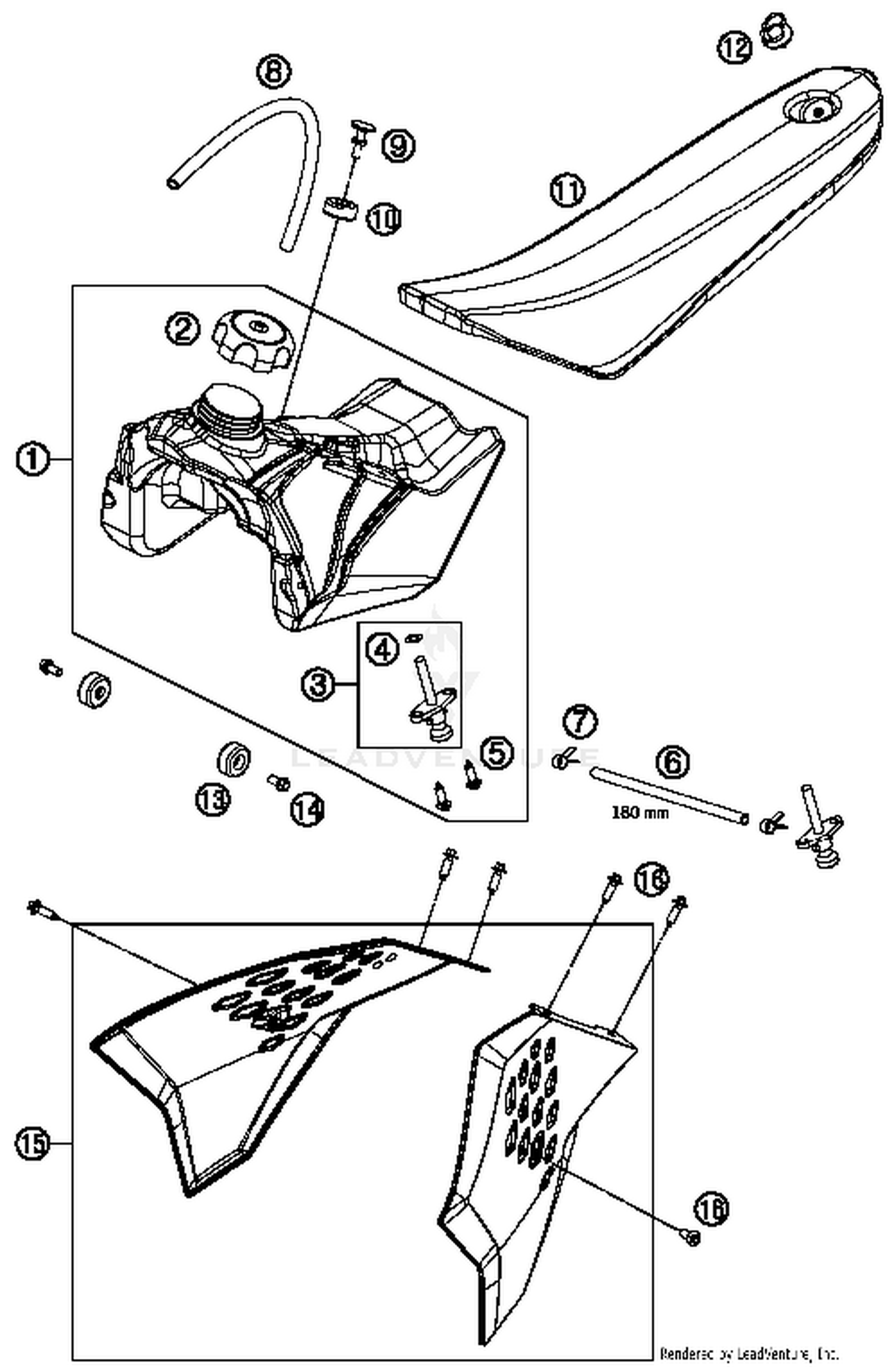

2015 KTM SX 50 MINI Tank, Seat, Cover OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK CPL. 50SX MINI 2009
4520701313330
|
$190.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FILLER CAP CPL. SMALL
49007008044
|
$23.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
FUEL COCK CPL.
58507003200
|
$24.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
O-RING 1,78x10,82x14,38 2-013
0770020130
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW FOR PLASTIC K60X20 SW6
0017060205
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
FUEL HOSE VITON 6X1,5 PER/M
58307016001
|
$36.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
YDNAC-CLAMP FUEL HOSE (8MM)
45031005000
|
$0.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PVC-HOSE 5,6X10X270MM
78007000270
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
TANK SCREW MINI 50 2001
45107011000
|
$8.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
TANK ROLLER 12X26X12 '98
50307014000
|
$10.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SEAT 50 SX 09
45207040000
|
$97.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
QUICK RELEASE CPL. 50 SXR '97
45007040051
|
$20.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
TANK ROLLER 12X26X12 '98
50307014000
|
$10.95 | ||
|
Unavailable |
|||
|
#14
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SPOILERSET ORANGE 50SX/MINI 15
4520805400004D
|
$83.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SCREW F. PLASTIC K60X20AL SW6
0017060206
|
$2.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
