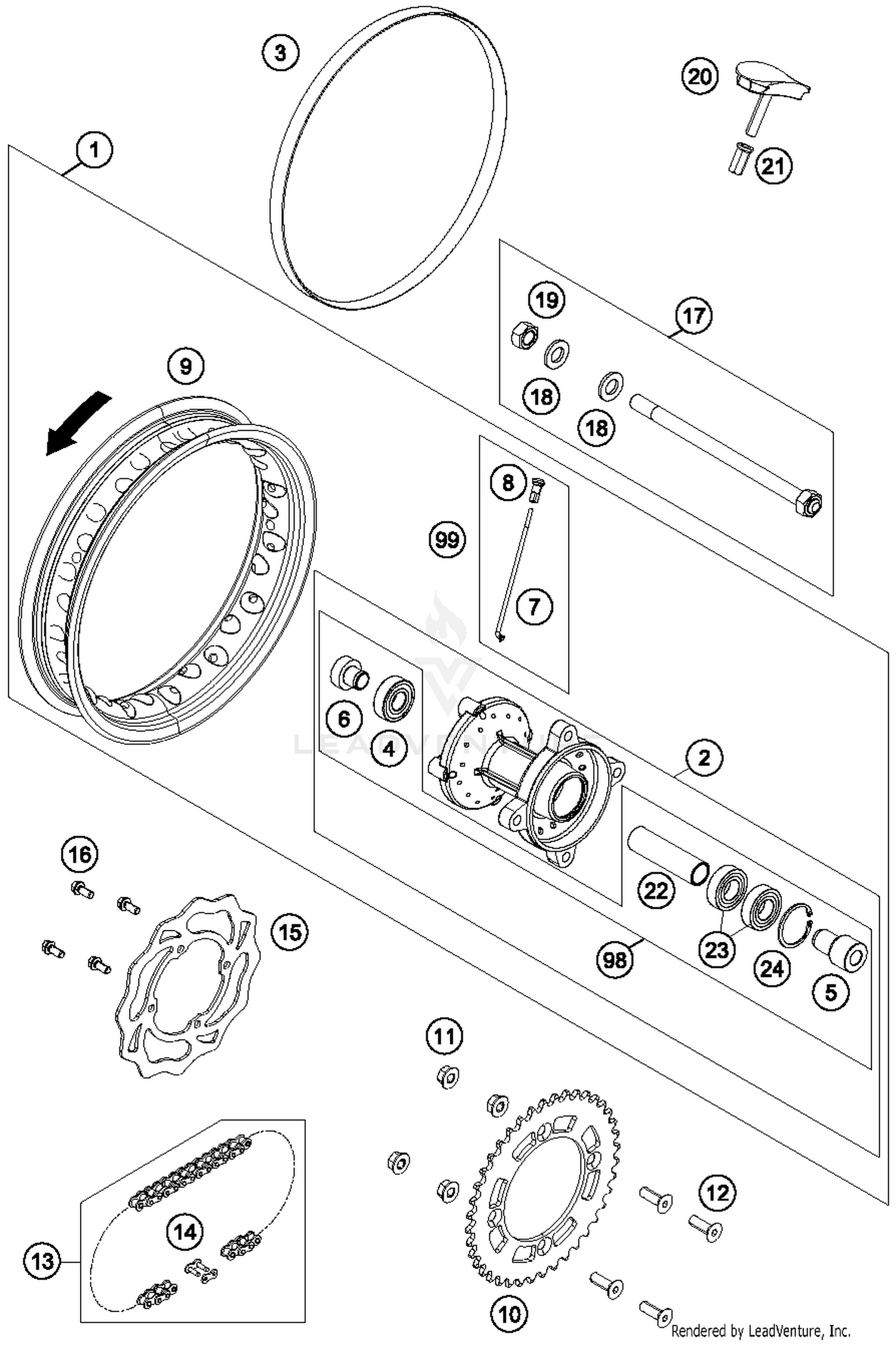

2015 KTM SX 50 MINI Rear Wheel OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL 50SX/MINI 2015
45210001544
|
$585.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
REAR WHEEL HUB CPL. 50SX 2015
45210010144
|
$306.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
RIM BAND 10'' 22MM
45009073000
|
$5.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BALL BEARING 6202-2RSH/C3
0625062028
|
$13.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SPACER BUSHING LEFT 2015
45210013100
|
$19.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER BUSHING REAR R/S
45210014000
|
$19.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPOKE 3X101 C.113°
45210071101
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPOKE NIPPLE ALU
46210072000
|
$1.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
REAR RIM 10''X1.6 BLK. 2012
4521007010030
|
$159.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPROCKET 38-T 50SX ´13
45210151038
|
$36.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPROCKET 39-T 50SX ´13
45210151039
|
$36.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPROCKET 40-T 50SX ´13
45210151040
|
$36.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPROCKET 41-T 50SX ´13
45210151041
|
$36.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPROCKET 42-T 50SX ´13
45210151042
|
$36.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SELF LOCKING NUT M8 10.9
54310086200
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
FLAT HEAD SCREW DIN7991-M 8X25
0991080253
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RACING CHAIN 1/2X3/16'' 50 SX
45110265104
|
$37.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CONNECTING LINK 1/2X3/16'' 90RS
45110266000
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BRAKE DISC FRONT JUN/SEN 09
45209060000
|
$74.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
AXLE CPL. 207MM M12X1
46010085044
|
$39.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FLAT WASHER DIN0125-A13
0125120003
|
$0.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
Nut M12x1 h10 WAF19 DIN 934
0934120103
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
RIM LOCK CPL. 2004
45110090000
|
$30.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
NUT FOR WHEEL HOLDER
77110090050
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BEARING DISTANCE TUBE 2015
45210011100
|
$15.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
GR.BALL BEAR. 6003-2RSH/C3HMTF
0625060037
|
$30.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CIRCLIP DIN0472-35X1,5
0472035150
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#98
REAR WHEEL REP. KIT 50 SX 15
45210015100
|
$112.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
SPOKE KIT REAR 10'' '14
00050000969
|
$65.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
