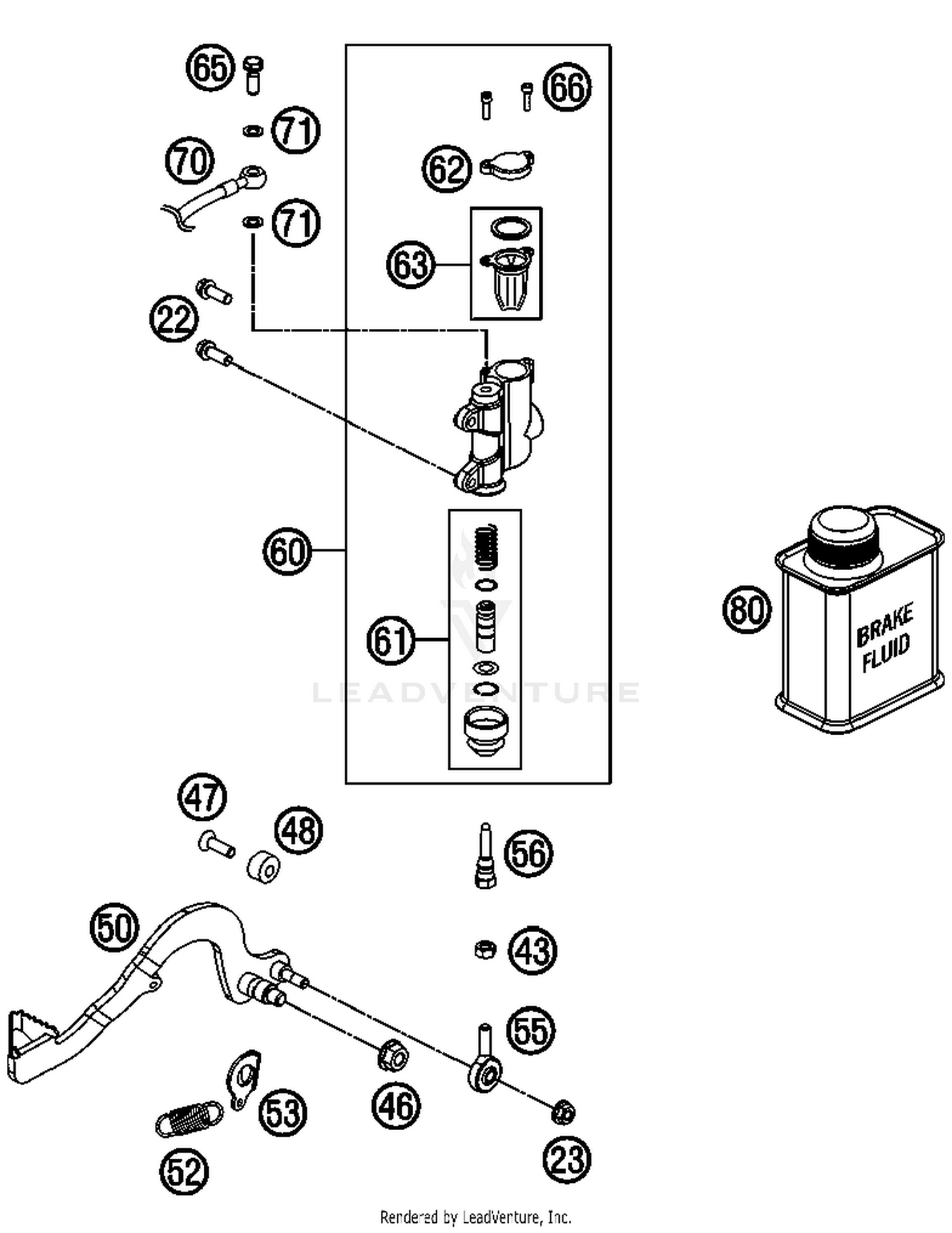

2013 KTM SX 50 MINI Rear Brake Control OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#22
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SELF LOCKING NUT M6 10.9
56509064100
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
hex nut DIN 934 M6
0934060003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
SELF LOCKING NUT M8 10.9
54310086200
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
FLAT HEAD DIN7991-M 6X20
0991060202
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#48
BRAKE LEVER STOP
45203063000
|
$27.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
FOOT BRAKE LEVER
45213050000
|
$111.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
Return spring for brake lever
54603062000
Superseded by 54603062200
|
$6.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53
LOCK WASHER 50 SX
45213053000
|
$6.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#55
SWIVEL HEAD KA6 INNOX
46213055000
|
$43.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#56
PUSH ROD
46213056000
|
$11.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#60
REAR BRAKE CYL. 50+65 04
46113060000
|
$143.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#61
REP. SET PISTON REAR D=11 2003
47013061000
|
$40.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#62
CYLINDER COVER REAR 85 SX 03
47013062000
|
$8.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#63
GASKET CYLINDER COVER REAR 03
47013063000
|
$10.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#65
HOLLOW SCREW M6
46113325000
|
$19.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#66
AH.SCREW DIN0912-M 4X10
0912040103
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#70
BRAKE TUBE REAR
45213170100
|
$56.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#71
O-RING 6,00X1,00 FORMULA
0770060019
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#80
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$11.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
