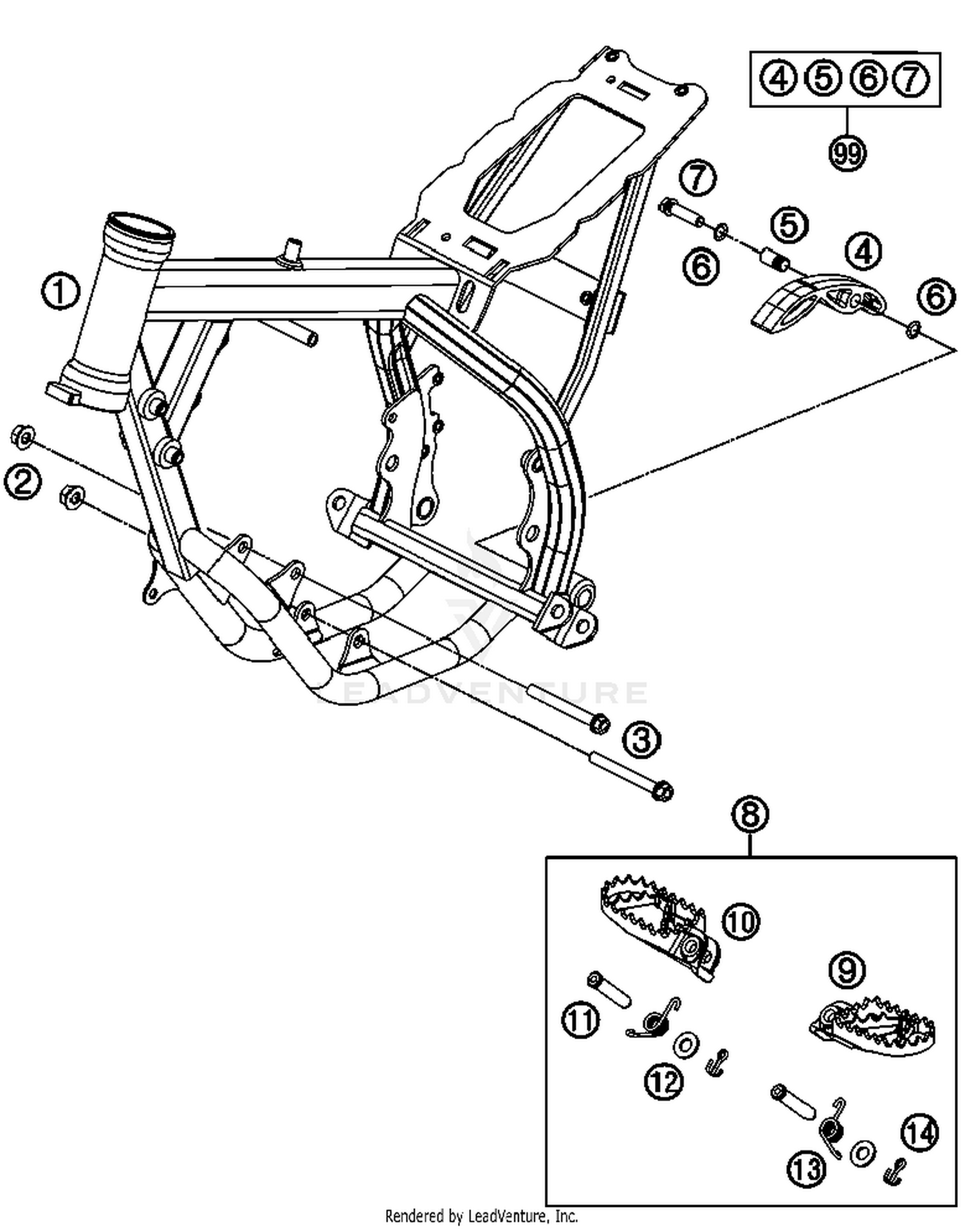

2013 KTM SX 50 MINI Frame OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ANTHRACITE M. ''452L5''
45203001400BE
|
$1,083.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SELF LOCKING NUT M8 10.9
54310086200
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
HH collar screw M8x65 TX40
0025080656
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CHAIN SLIDING PIECE BELOW '97
51103053000
|
$8.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BUSHING 8,2X10X20
51103053051
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
LOCK WASHER 8MM
36003014000
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HH collar screw M8x30
0025080306
|
$2.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
FOOTREST CPL. 14
4700304003390
Superseded by 47103040033
|
$110.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
FOOTREST L/S
59003040050
Superseded by 47103040000
|
$43.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
FOOTREST R/S
59003041050
Superseded by 47103041000
|
$42.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$12.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
washer DIN 125 A 10.5
0125100003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
FOOTREST SPRING L/S & R/S
54603041000
|
$4.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PIN DIN0094-3,2X25 STEEL
0094032253
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
CHAIN SLIDING KIT BELOW MINI
51103053110
|
$18.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
