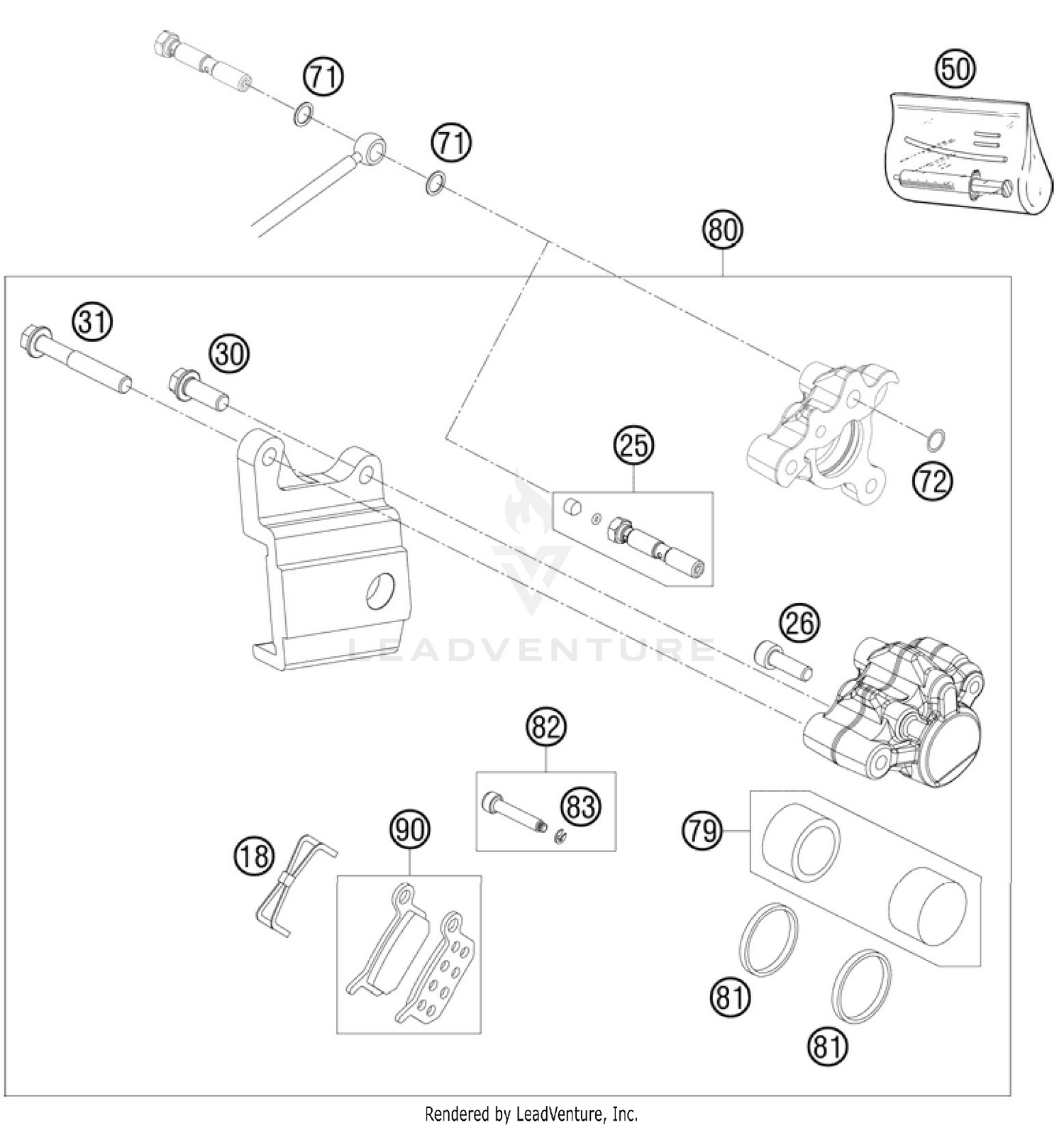

2011 KTM SX 50 MINI Brake Caliper Rear OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#18
RETAINING SPRING 50 LC
45113018000
|
$15.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HOLLOW SCREW CPL.
46113225000
|
$25.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
AH SCREW DIN0912-M 5X16
0912050163
|
$0.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
HH collar screw M6x20 TX30
0025060206
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
HH collar screw M6x40 TX30
0025060406
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
BLEEDER INJECTION-SET 50-65
45119050000
|
$34.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#71
O-RING 6,00X1,00 FORMULA
0770060019
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#72
O-RING 8,00X1,00 FORMULA
0770080019
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#79
REPAIR KIT BRAKEPISTON
45113019100
|
$12.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#80
BRAKE CALIPER REAR CPL.50LC 04
45113080000
|
$236.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#81
O-RING 22X2X2 EPDM
0770022020
|
$8.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#82
AH SCREW + CIRCLIP 50/65 04
45113225000
|
$13.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#83
TAB WASHER DIN6799 RS2,5
0799025000
|
$0.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#90
BRAKE PAD SET 50 LC 2002
45113030000
|
$34.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
