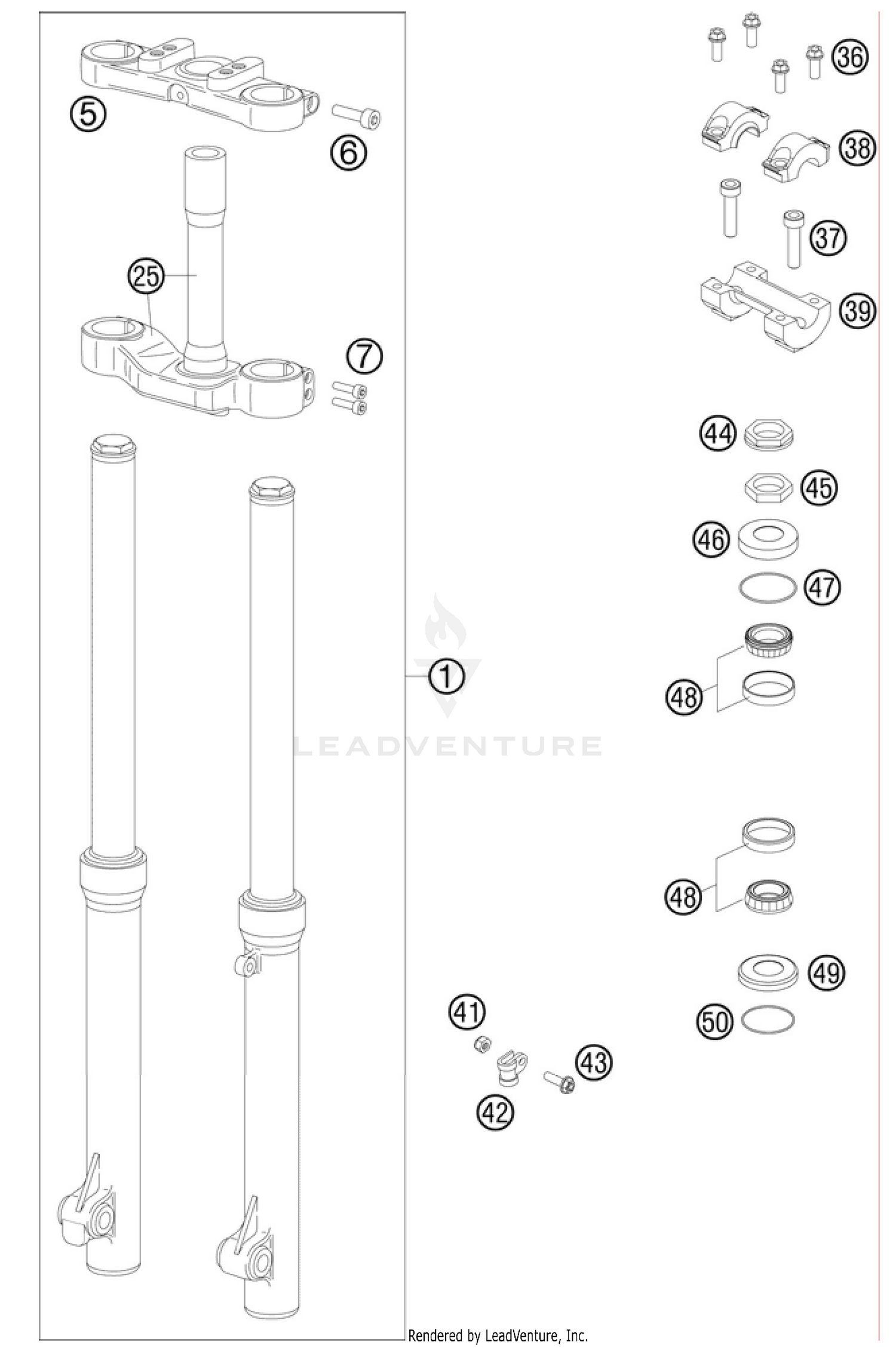

2010 KTM SX 50 MINI Front Fork, Triple Clamp OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK CPL. 50SX MINI
45201000233
|
|||
|
Unavailable |
|||
|
#5
TOP FORK PLATE 50 LC SEN. 03
7501498A
|
$139.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
AH SCREW DIN0912-M 8X30
0912080303
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
AH SCREW DIN0912-M 6X25
0912060253
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOTTOM TRIP. CLAMP CPL.
77051264
|
$346.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
HH collar screw M8x30
0025080306
|
$2.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
AH-COLLAR SCREW M10X25 ISA45
0912100250
Superseded by 0032100256S
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
HANDLEBAR CLAMP D=22MM 2001
50301038000
|
$21.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
HANDLEBAR SUPPORT D=22MM 2001
45101039000
|
$53.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
BRAKE CABLE CLAMP RSGU 9/12
45001070000
|
$4.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
HH collar screw M5x20 TX30
0025050206
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
HH NUT M20X1,5 WS=27 RIGHT
59030029000
|
$8.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
STEERING HEAD NUT M20X1,5
46001043000
|
$7.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
COVERING CAP
49001086000
|
$6.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
O-RING 40,94X2,62 NBR70
0770021300
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#48
TAPERED ROLLER BEARING 32004X
49001081000
|
$42.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
PROTECTION RING 20,1X39X5
46001086000
|
$8.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
O-RING 36,00X3,00 NBR
0770360030
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
