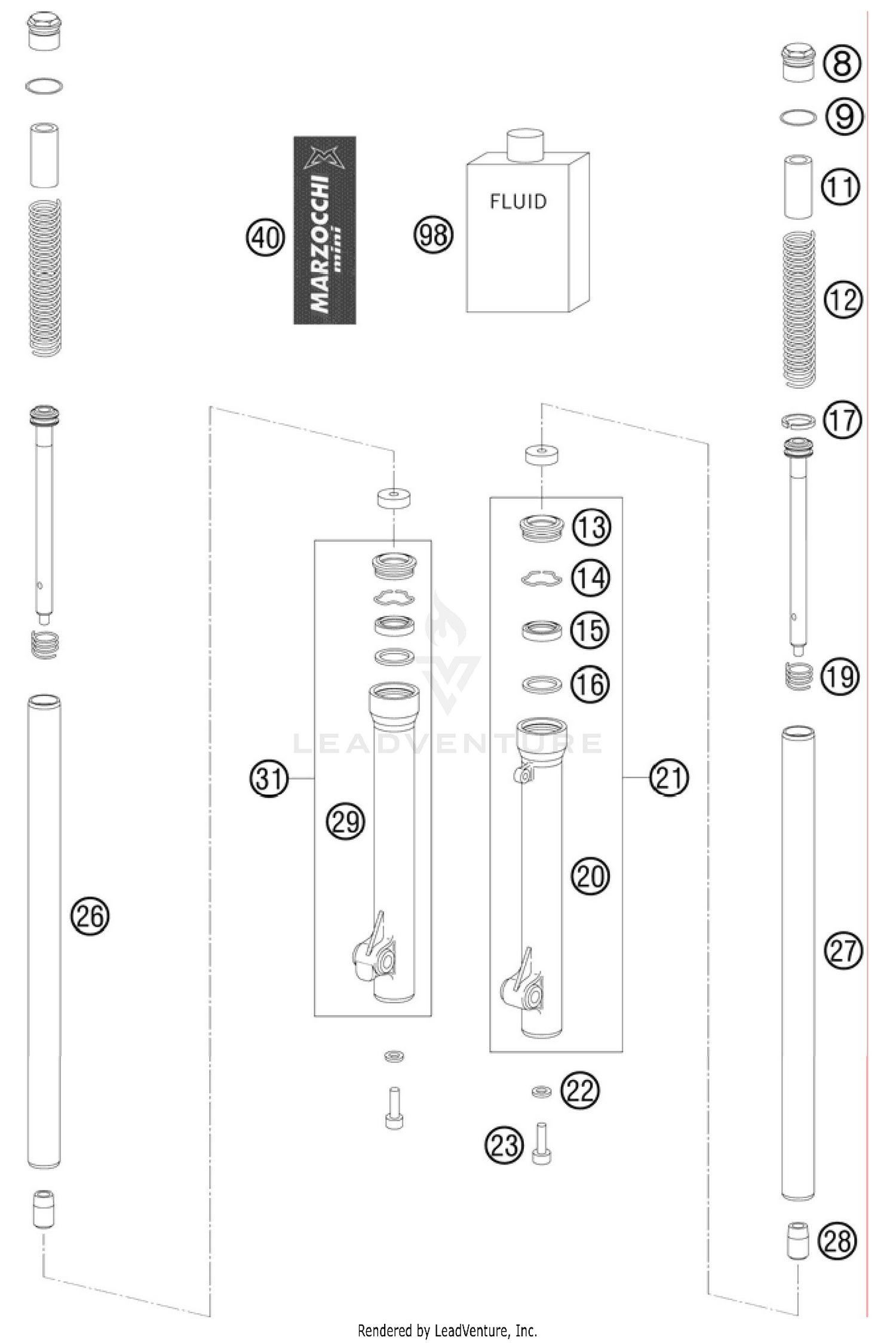

2010 KTM SX 50 MINI Front Fork, Disassembled OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#8
PLUG CAP
7504212AC
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O-RING
7528010
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PRE LOAD BUSH L=55MM
7518031
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPRING 2N/MM
75141169
|
$17.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPRING 2,5N/MM
75141214
|
$14.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
DUST SEAL
7533297
|
$10.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
STOP RING
7523264
|
$5.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
OIL SEAL 32/42/6,5-9,5
7528230
|
$17.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
WASHER D42X32,5X1,5
7522166AA
|
$5.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PISTON RING D32
7524157
|
$3.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
REBOUND SPRING
75141015
|
|||
|
Unavailable |
|||
|
#20
SLIDER L/S 50 LC
75031570A
|
|||
|
Unavailable |
|||
|
#21
SLIDER CPL. L/S 50LC
75031570A/R
|
|||
|
Unavailable |
|||
|
#22
WASHER 14X8X1,5
7522225
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SHCS DIN 912 M8x40
0912080403
|
$1.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
FORK TUBE R/S MINI/JUN. 02
7708247/R
|
$118.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
FORK TUBE L/S MINI/JUN. 02
7708248/R
|
$129.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
FOOT BUFFER
7512068
|
$9.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SLIDER R/S 50 LC
75031571A
|
|||
|
Unavailable |
|||
|
#31
SLIDER CPL. R/S 50LC
75031571A/R
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
STICKER LEFT SIDE MARZOCCHI
7547325
|
$14.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
STICKER RIGHT SIDE MARZOCCHI
7547331
|
$14.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#98
FORKOIL EBH16 SAE 7.5
7550013
|
|||
|
Unavailable |
|||
