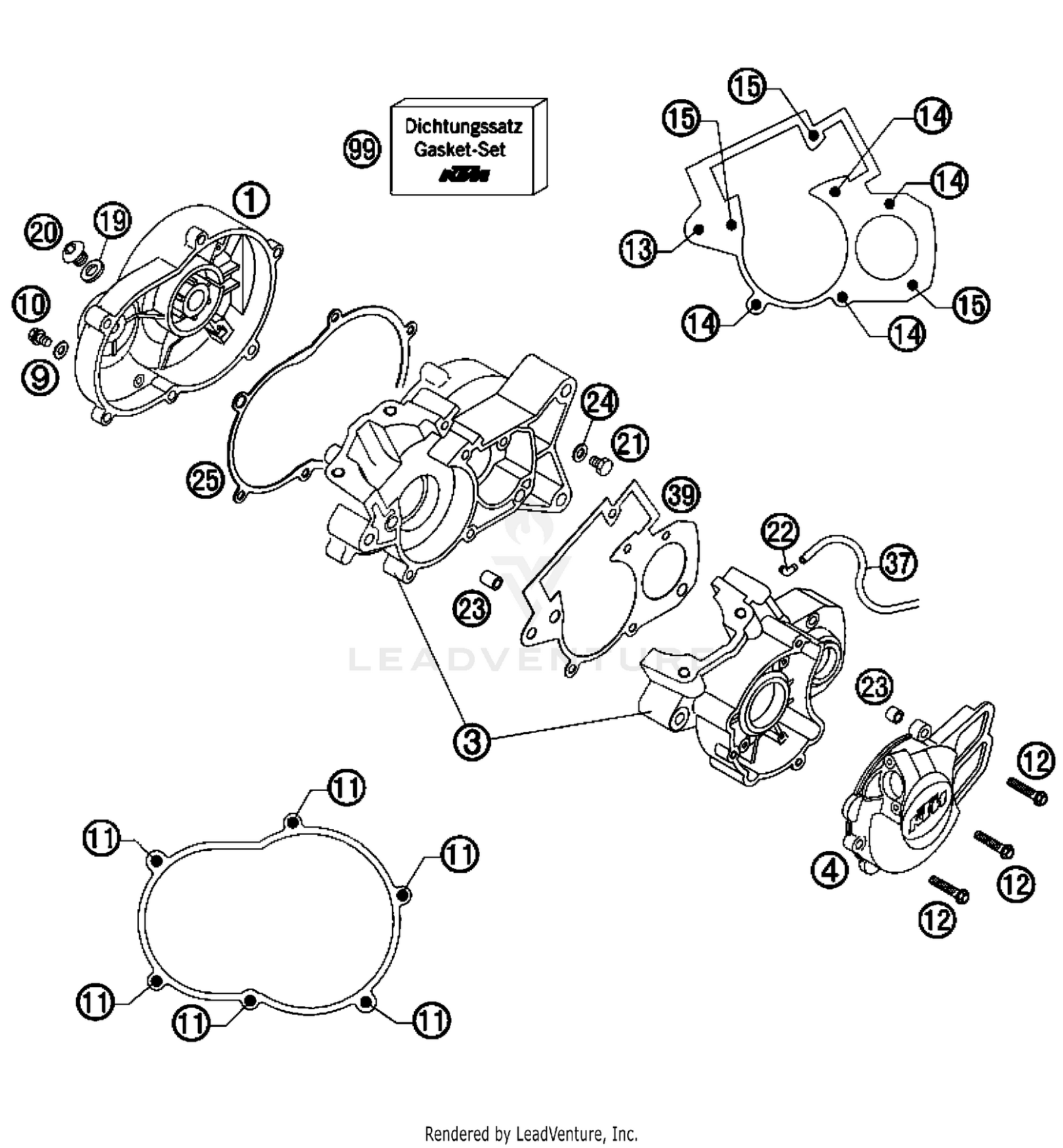

2008 KTM SX 50 MINI Engine Case OEM Parts Diagram
Air & Fuel
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH COVER 50 2004
45130001100
|
$90.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
ENGINGE CASE 50CCM LC 2001
45130000044
|
$240.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
IGNITION COVER 50 GS 2002
45130502100
|
$68.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
HH collar screw M6x10 TX30
0015060103
Superseded by 0025060106
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HH collar screw M6x30 TX30
0015060303
Superseded by 0025060306
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
HH COLLAR SCREW M 8X60 WS=10
0015080603
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
AH SCREW DIN0912-M 6X35
0912060353
|
$1.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
AH SCREW DIN0912-M 6X40 A2
0912060404
|
$1.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
GASKET FOR OIL PLUG
45130019000
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
OIL PLUG 50 LC 2001
45130020000
|
$9.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
OIL DRAIN PLUG M10 WS=13
46030021100
|
$13.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
ANGLE PIECE 50CCM LC 2001
45130022000
|
$5.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
DOWEL 7X9X10
45130023000
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
sealing ring DIN 7603 10x14x1
0603100141
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
GASKET FOR CLUTCH COVER 2001
45130025000
|
$6.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
PVC-HOSE 3X5MM
52031137001
|
$4.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
ENGINE CASE GASKET 50 LC 2001
45130039000
|
$3.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#99
GASKET SET CPL. 50 LC 2001
45130599000
Superseded by 45130099000
|
$86.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
