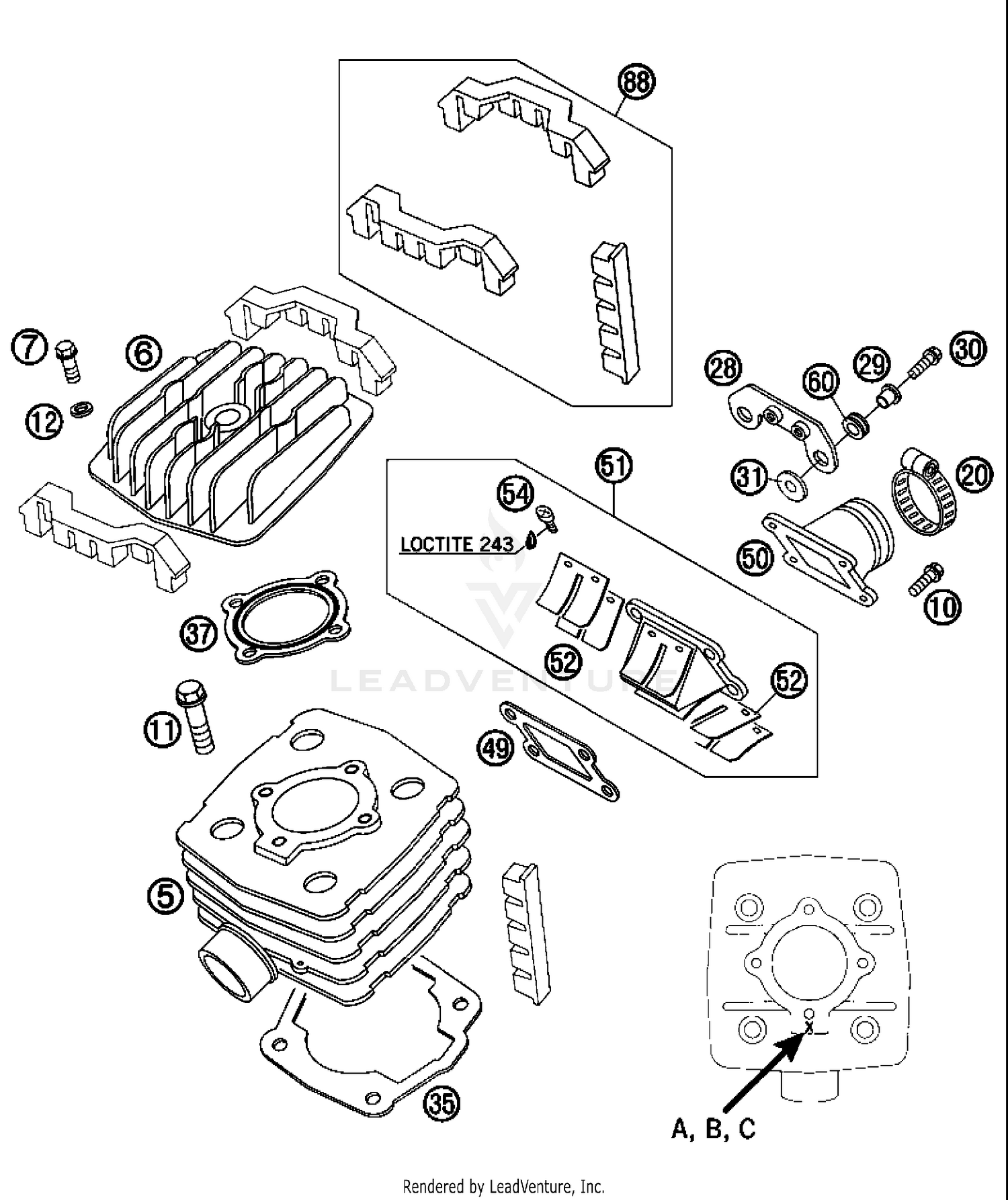

2008 KTM SX 50 MINI Cylinder, Cylinder Head OEM Parts Diagram
Air & Fuel
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#5
CYLINDER A. PISTONKIT
45130505100 A
Superseded by 45130538100
|
$323.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CYLINDER A. PISTONKIT
45130505100 B
Superseded by 45130538100
|
$323.83 | ||
|
Unavailable |
|||
|
#5
CYLINDER A. PISTONKIT
45130505100 C
Superseded by 45130538100
|
$323.83 | ||
|
Unavailable |
|||
|
#6
CYLINDER HEAD 50 GS 2002
45130506100
|
$48.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HH collar screw M6x25 TX30
0015060253
Superseded by 0025060256
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
HH collar screw M8x20
0015080203
Superseded by 0025080206
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
WASHER DIN0125-A 6,4
0125060003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CLAMP 25-40 SGT 4
10001120000
|
$5.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
BRACKET IGNITI. COIL 50LC 2001
45139028000
|
$6.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
COLLAR BUSHING 6,3X8X7,5
45139128000
|
$5.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
HH collar screw M6x30 TX30
0015060303
Superseded by 0025060306
|
$2.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
WASHER DIN9021-A 6,4
0021060003
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,2 MM
46030035020
|
$11.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,5 MM
46030035050
|
$10.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
CYLINDER HEAD GASKET 50 AC 02
45130537000
|
$4.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
INTAKE VALVE GASKET
46030049000
|
$2.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
INLET MANIFOLD 50CCM LC 2001
45130050000
|
$54.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
MEMBRANE HOUSING CPL.65SX 2001
46030051144
|
$86.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
MEMBRANE LOOSE 60/65 CCM
46030052000
|
$15.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#54
FLAT HEAD SCREW DIN7985-M 3X6
0985030063
|
$0.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#60
rubber grommet D=8mm open
31008060000
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#88
DAMPING RUBBER-SET 2002
45130588000
|
$44.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
