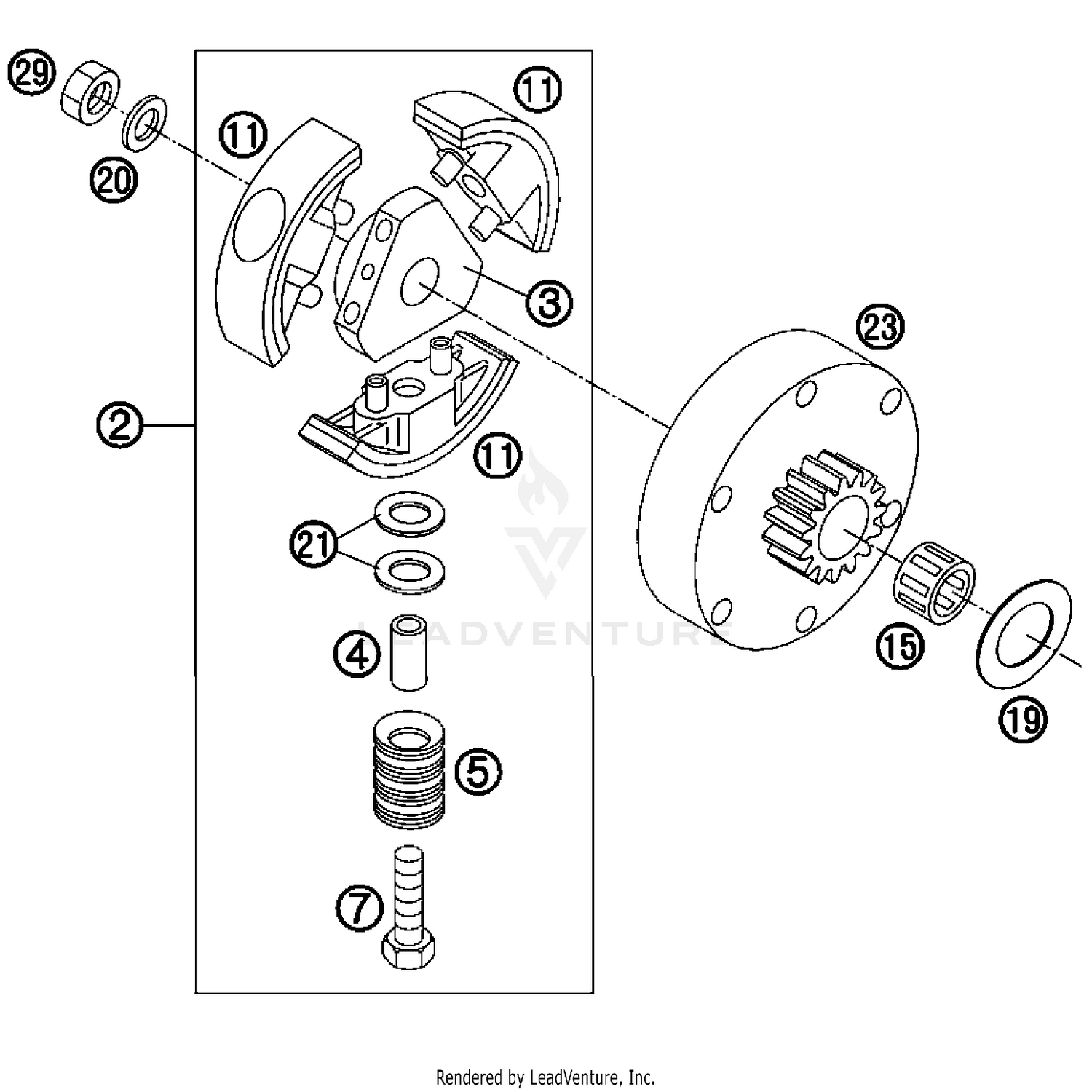

2008 KTM SX 50 MINI Clutch OEM Parts Diagram
Air & Fuel
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CLUTCH CPL.50GS 2007
45132002244
|
$285.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CLUTCH HUB 50 LC 2002
45132002000
|
$120.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPACER 6X8X19
45132004000
|
$13.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CLUTCH SPRING 2001
45132005000
|
$1.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HH SCREW DIN0933-M 6X25
0933060253
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CLUTCH BLOCK 06
45132011200
|
$33.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
NEEDLE BEARING 15X18X17
45132015000
|
$18.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPACER WASHER 15X25X0,3
45132020030
|
$1.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPACER WASHER 15X25X0,4
45132020040
|
$1.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
STOP DISC 15X25X1
47033040000
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
STOP DISC 15X25X0,5
47033043000
|
$0.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
WASHER 10,4X16,8X0,4
45132020000
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
WASHER 8X15,3X0,5
45132120000
|
$2.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
WASHER 8X15,3X1
45132120100
|
$2.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
WASHER 8X15,3X0,25
45132120200
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CLUTCH DRUM 16-T
45132023016
|
$132.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SPECIAL NUT 10X1,25X8
45130029000
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
